2010 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

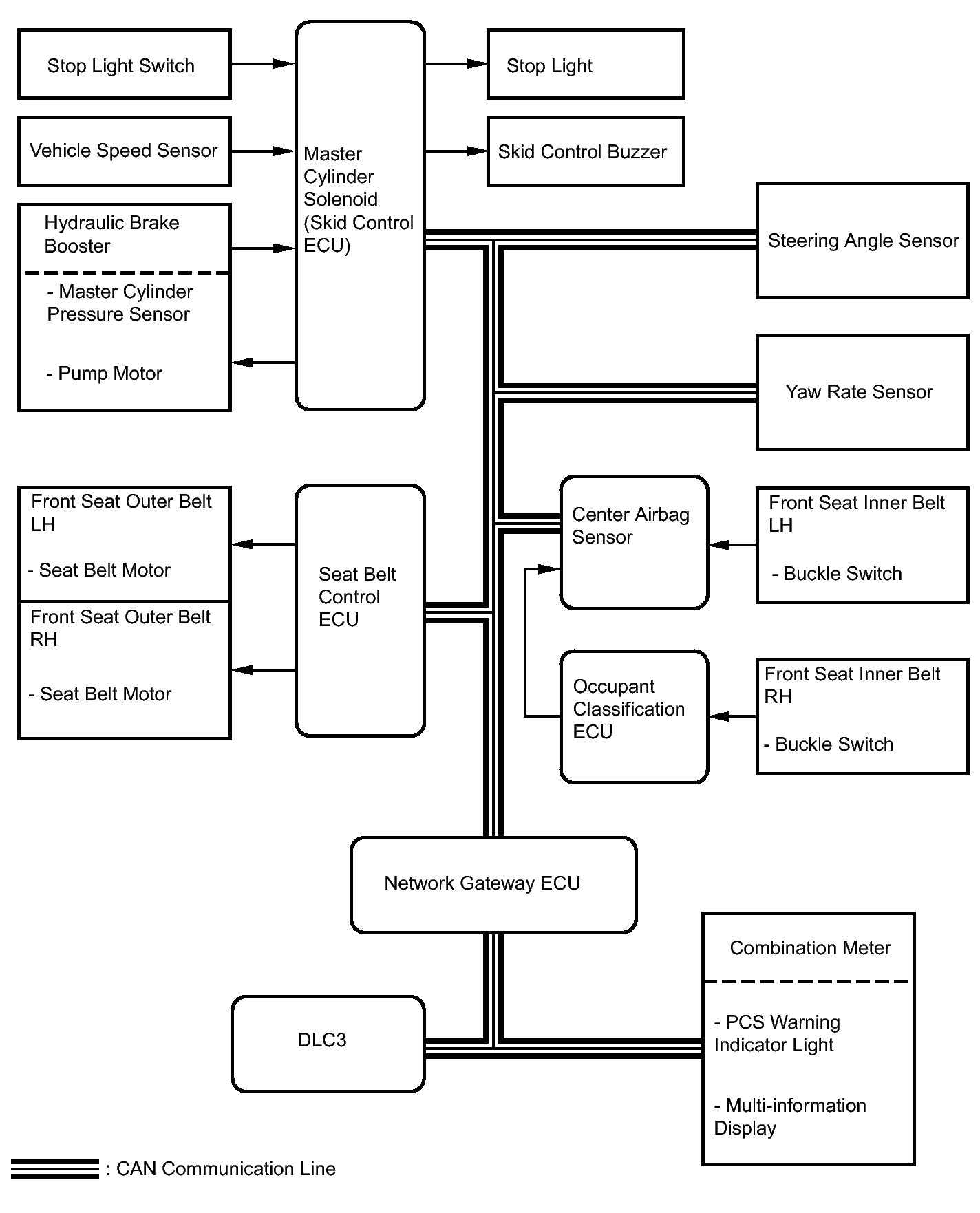

System Diagram
COMMUNICATION TABLE
| Transmitter | Receiver | Signal | Communication Line |
|---|---|---|---|
| Master Cylinder Solenoid (Skid Control ECU) | Seat Belt Control ECU |
|
CAN |
| Center Airbag Sensor | Seat Belt Control ECU |
|
CAN |
| Seat Belt Control ECU | Combination Meter |
|
CAN |
