1. HINTS ON OPERATIONS

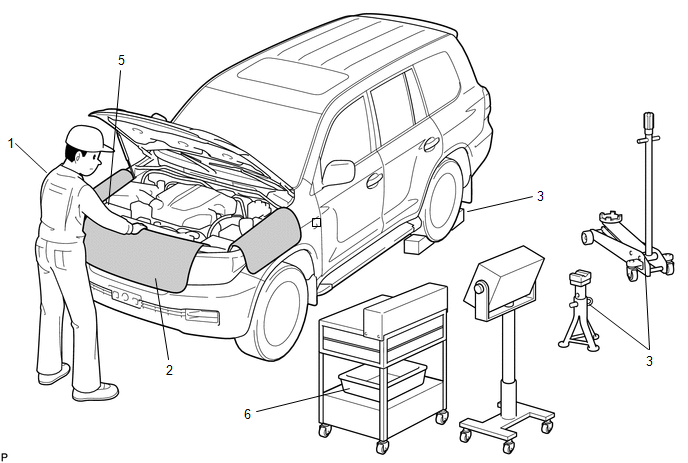

   Fig 1: Preparing For Work - Basic Repair Hint

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1	Attire	Always wear a clean uniform. Hat and safety shoes must be worn.
   2	Vehicle protection	Prepare a grille cover, fender cover, seat cover and floor mat before starting the operation.
   3	Safe operation	When working with 2 or more persons, be sure to check safety for one another. When working with the engine running, make sure to provide ventilation for exhaust fumes in the workshop. If working on high temperature, high pressure, rotating, moving, or vibrating parts, wear appropriate safety equipment and take extra care not to injure yourself or others. When jacking up the vehicle, be sure to support the specified location with a safety stand. When lifting up the vehicle, use appropriate safety equipment.
   4	Preparation of tools and measuring gauge	Before starting operation, prepare a tool stand, SST, a gauge, oil and the parts for replacement.
   5	Removal and installation, disassembly and assembly operations	Diagnose with a thorough understanding of proper procedures and of the reported problem. Before removing the parts, check the general condition of the assembly and for deformation and damage. When the assembly is complicated, take notes. For example, note the total number of electrical connections, bolts, or hoses removed. Add matchmarks to ensure reassembly of components in the original positions. Temporarily mark hoses and their fittings if needed. Clean and wash the removed parts if necessary and assemble them after a thorough check.
   6	Removed parts	Place the removed parts in a separate box to avoid mixing them up with the new parts or contaminating the new parts. For non-reusable parts such as gaskets, O-rings, and self-locking nuts, replace them with new ones as instructed in this information. Retain the removed parts for customer inspection, if requested.

2. JACKING UP AND SUPPORTING VEHICLE
   1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations.
3. PRECOATED PARTS
   Fig 2: Identifying Seal Lock Adhesive

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Precoated parts are bolts and nuts that are coated with a seal lock adhesive at the factory.
   2. If a precoated part is retightened, loosened or moved in any way, it must be recoated with the specified adhesive.
   3. When reusing a precoated part, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to that part.
   4. Some seal lock agents harden slowly. You may have to wait for the seal lock adhesive to harden.
4. GASKETS
   1. When necessary, use a sealer on gaskets to prevent leaks.
5. BOLTS, NUTS AND SCREWS
   1. Carefully follow all the specifications for tightening torques. Always use a torque wrench.
6. FUSES
   Fig 3: Identifying Fuse Condition

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. When inspecting a fuse, check that the wire of the fuse is not broken.
   2. If the wire of a fuse is broken, confirm that there are no shorts in its circuit.
   3. When a fuse is replaced, a fuse with the same amperage rating must be used.

      Illustration	Symbol	Part Name	Abbreviation
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSE	FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	MEDIUM CURRENT FUSE	M-FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	HIGH CURRENT FUSE	H-FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSIBLE LINK	FL
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	CIRCUIT BREAKER	CB

7. CLIPS
   1. The removal and installation methods of typical clips used for vehicle body parts are shown in the table below.

      HINT:

      If clips are damaged during a procedure, always replace the clips with new clips.

      Shape (Example)	Illustration	Procedures
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips with a clip remover or pliers.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips with a clip remover or screwdriver.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips with a wide scraper to prevent panel damage.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips by pushing the center pin through and prying out the shell.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips by unscrewing the center pin and prying out the shell.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips by prying out the pin and then prying out the shell.

8. CLAWS
   1. The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.

      HINT:

      If claws of caps or covers are damaged during a procedure, always replace the caps or covers with new ones.

      Shape (Example)	Illustration	Procedures
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, detach the claws and remove the caps or covers.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, detach the claws and remove the caps or covers.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, detach the claws and remove the caps or covers.

9. HINGE, GUIDE, CLAMP, PIN ETC.
   1. The removal and installation methods of typical hinges, guides, clamps and pins used for vehicle body parts are shown in the table below.

      HINT:

      If clamps are damaged during a procedure, always replace the cap or cover that has damaged clamps with a new one.

      Shape (Example)	Illustration	Procedures
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Disengage the pins by pulling.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Disengage the pins by pulling.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove the clamps with pliers.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Disengage the pins by pulling.

10. REMOVAL AND INSTALLATION OF VACUUM HOSES
    1. To disconnect a vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may cause damage.
       Fig 4: Identifying Correct & Incorrect Method Of Disconnecting Vacuum Hose

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. When disconnecting vacuum hoses, use tags to identify where they should be reconnected.
       Fig 5: Applying Tag On Vacuum Hoses

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. After completing any hose related repairs, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.
    4. When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has been stretched, it may leak air. Use a step-down adapter if necessary.
11. TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL
    Fig 6: Identifying Torque Wrench Dimension

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with a torque wrench.
       Fig 7: Identifying Torque Wrench Dimension

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       Formula

       T' = L2 / (L1 + L2) * T

       T'	Reading of torque wrench {N*m (kgf*cm, ft.*lbf)}
       T	Torque {N*m (kgf*cm, ft.*lbf)}
       L1	Length of SST or extension tool {cm (in.)}
       L2	Length of torque wrench {cm (in.)}

       NOTE:

       If an extension tool or SST is combined with a torque wrench and the wrench is used to tighten to a torque specification in this information, the actual torque will be excessive and parts will be damaged.

The LAND CRUISER is equipped with a Supplemental Restraint System (SRS). The SRS of this vehicle consists of the following:

1. Steering pad
2. Front passenger airbag assembly
3. Curtain shield airbag assembly
4. Front seat side airbag assembly
5. Knee airbag assembly
6. Center airbag sensor assembly
7. Front airbag sensor
8. Side airbag sensor
9. Seat position airbag sensor
10. Occupant classification ECU
11. Front seat outer belt assembly with pretensioner
