2010 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal: Removal
- REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH . Refer to REMOVAL - Step 1
- REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH . Refer to REMOVAL - Step 2
- REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 17
- DRAIN ENGINE COOLANT . Refer to REPLACEMENT - Step 4
- REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 22
- REMOVE AIR CLEANER HOSE ASSEMBLY . Refer to REMOVAL - Step 8
- REMOVE THROTTLE BODY ASSEMBLY

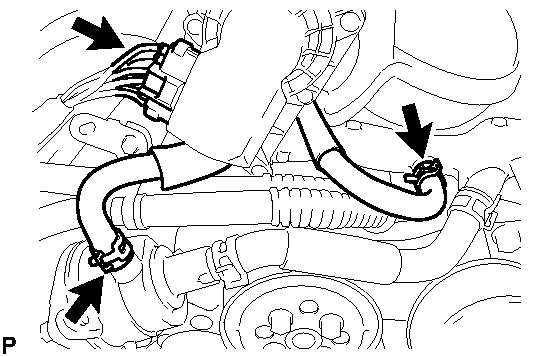

- Disconnect the 2 water by-pass hoses.
- Disconnect the throttle position sensor and control motor connector.

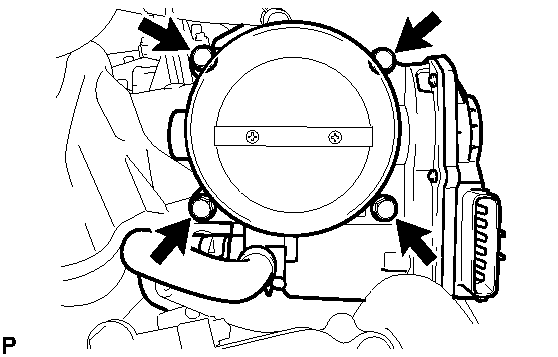

- Remove the 4 bolts, throttle body and gasket.
- Remove the 2 water by-pass hoses from the throttle body.
