2010 Toyota FJ Cruiser 4WD, AutomaticFACTORY OEM SERVICE PROCEDURE

Slip Indicator Light Remains ON: Procedure

  1. CHECK DTC
    1. Check for the DTCs. Refer toDTC CHECK / CLEAR .

      Result

      Result Proceed to
      DTC not output A
      DTC output B

    B → See step   5

    A: Go to next step

  2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)
    1. Disconnect the skid control ECU connector.

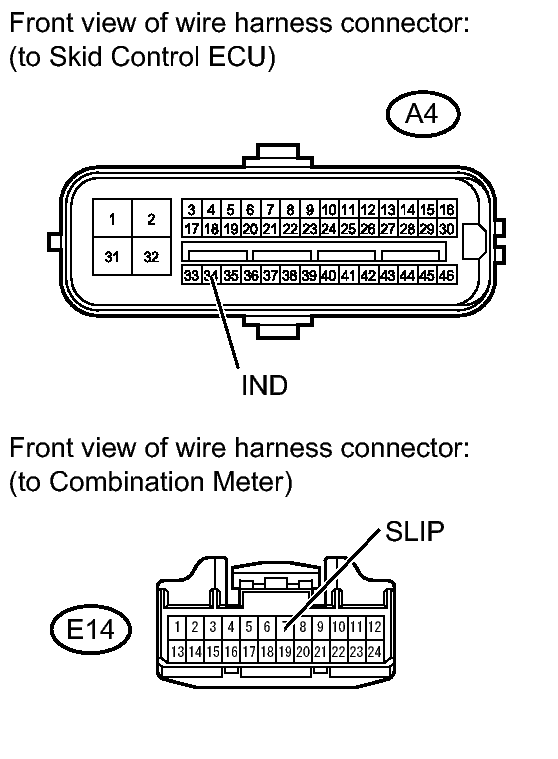

      Fig 1: Identifying Skid Control ECU & Combination Meter Connector
      GTY185421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the combination meter connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      A4-34 (IND) - E14-7 (SLIP) Always Below 1 Ω
      A4-34 (IND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT COMBINATION METER ASSEMBLY
    1. Check the combination meter system. Refer toTERMINALS OF ECU .

      OK

      Combination meter is normal.

    NG → See step   6

    OK → See step   4

  4. REPLACE MASTER CYLINDER SOLENOID. Refer to DISASSEMBLY
  5. REPAIR CIRCUITS INDICATED BY OUTPUT DTCS. Refer to DIAGNOSTIC TROUBLE CODE CHART
  6. REPLACE COMBINATION METER ASSEMBLY. Refer to REMOVAL
