2010 Toyota FJ Cruiser 4WD, AutomaticFACTORY OEM SERVICE PROCEDURE

Remote Up / Down Function does not Operate: Procedure

  1. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Turn the window lock switch OFF and operate the switches on the master switch. Check that the remote UP / DOWN function operates normally.

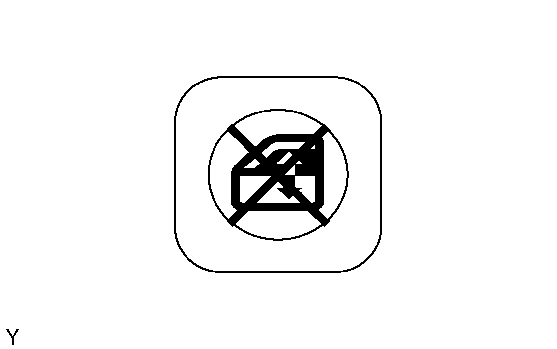

      Fig 1: Identifying Window Lock Switch
      GTY160661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      Remote UP / DOWN function operates normally.

    NG → See step   2

    OK → END

  2. CHECK MANUAL UP / DOWN FUNCTION
    1. Check that the passenger door power window manual UP / DOWN function operates normally.

      OK

      Manual UP / DOWN function operates normally.

    NG → See step   4

    OK → See step   3

  3. REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY. Refer to REMOVAL
  4. GO TO PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
