2010 Toyota 4Runner TrailFACTORY OEM SERVICE PROCEDURE
Heated Oxygen Sensor: Inspection: Inspection
- INSPECT HEATED OXYGEN SENSOR
- Measure the resistance according to the value(s) in the table below.
Standard Resistance (for Bank 1)
Tester Connection Condition Specified Condition 1 (HT1B) - 2 (+B) 20°C (68°F) 11 to 16 Ω 1 (HT1B) - 4 (E2) Always 10 kΩ or higher Standard Resistance (for Bank 2)

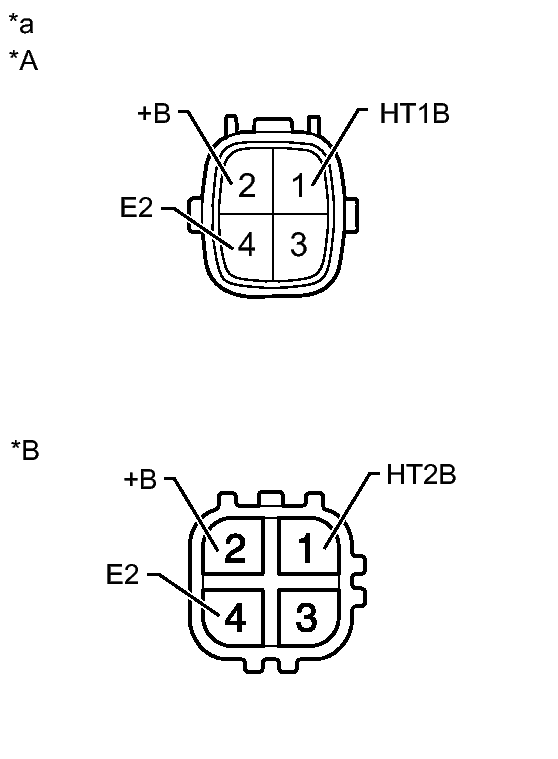

Tester Connection Condition Specified Condition 1 (HT2B) - 2 (+B) 20°C (68°F) 11 to 16 Ω 1 (HT2B) - 4 (E2) Always 10 kΩ or higher TEXT IN ILLUSTRATION*A for Bank 1 *B for Bank 2 *a Component without harness connected
(Heated Oxygen Sensor)If the result is not as specified, replace the heated oxygen sensor.
