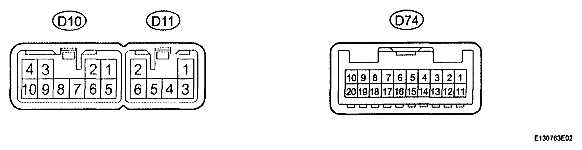

Terminals Of Ecu
- CHECK RADIO RECEIVERÂ
- Disconnect the D10 receiver connector.
- Measure the resistance and voltage of the wire harness side connector.
Standard:Â
RADIO RECEIVER CONNECTOR TERMINALS VOLTAGE AND RESISTANCE SPECIFICATIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition GND (D10-7)- Body ground W-B - Body ground Ground Always Below 1 Ω ACC (D10-3)- GND (D10-7) GR - W-B ACC power supply Ignition switch ACC 11 to 14 V B (D10-4)- GND (D10-7) L-W-B Battery power supply Always 11 to 14 V HINT:
If the results are not as specified, there may be a malfunction in the wire harness.
- Reconnect the D10 receiver connector.
- Measure the voltage and resistance of the connector.
Standard:Â
TERMINAL DESCRIPTION AND SPECIFIED CONDITIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition FR+ (D10-1)- GND (D10-7) GR - W-B Sound signals (front right) Audio system operating Waveform synchronized with sound output FL+ (D10-2)- GND (D10-7) P-W-B Sound signals (front left) Audio system operating Waveform synchronized with sound output FR- (D10-5)- GND (D10-7) Y-W-B Sound signals (front right) Audio system operating Waveform synchronized with sound output FL- (D10-6)- GND (D10-7) V-W-B Sound signals (front left) Audio system operating Waveform synchronized with sound output RR+ (D11-1)- GND (D10-7) R-W-B Sound signals (rear right) Audio system operating Waveform synchronized with sound output RL+ (D11-2)- GND (D10-7) B-W-B Sound signals (rear left) Audio system operating Waveform synchronized with sound output RR- (D11-3)- GND (D10-7) W-W-B Sound signals (rear right) Audio system operating Waveform synchronized with sound output RL- (D11-6)- GND (D10-7) Y-W-B Sound signals (rear left) Audio system operating Waveform synchronized with sound output ANT (D10-8)- GND (D10-7) B-W-B Power source of antenna Radio switch ON (AM or FM) 11 to 14 V ARI (D74-15)- GND (D10-7) R-W-B Sound signal (Right) External device playing (When stereo jack adapter used) Waveform synchronized with sound output ASGN (D74-16) GND (D10-7) B - W-B *1
W - W-B *2Ground (Shielded) Always Below 1 Ω ALI (D74-17)- GND (D10-7) B - W-B *1
W - W-B *2Sound signal (Left) External device playing (When stereo jack adapter used) Waveform synchronized with sound output AGND (D74-18)- GND (D10-7) (Shielded)- W-B Ground (Shielded) Always Below 1 Ω AUXI (D74-19)- GND (D10-7) R-W-B External device connection detection signal External device connected Below 1 Ω SPD (D74-3) W-W-B Speed signal Ignition switch ON, drive wheels turned slowly Pulse generation *1: for Hatchback
*2: for SedanHINT:
If the results are not as specified, there may be a malfunction in the wire harness.
