2009 Toyota Camry HybridFACTORY OEM SERVICE PROCEDURE

Front Speed Sensor: Removal

  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD  (See REMOVAL )
  3. REMOVE FRONT FENDER LINER  (See REMOVAL )
  4. REMOVE FRONT SPEED SENSOR
    1. Disconnect the front speed sensor connector and clamp.
      Fig 1: Locating Front Speed Sensor Connector And Clamp
      G04978258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts from the body and the shock absorber assembly.

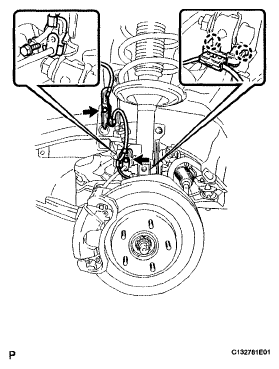

      3. Fig 2: Locating Bolts And Claws
      G04978252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 claws from the steering knuckle.
    4. Remove the bolt and the front speed sensor.
      NOTE:
      • Prevent foreign matter from attaching to the sensor tip.
      • Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.
