2008 Toyota Sequoia SR5, 5.7 Y, RWDFACTORY OEM SERVICE PROCEDURE

Yaw Rate And Deceleration Sensor: Installation

  1. INSTALL YAW RATE SENSOR
    1. Connect the sensor connector (labeled A), and then attach the clamp (labeled B) to the hole of the sensor bracket.
    2. Install the yaw rate sensor with the 2 nuts (labeled C).

      Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

      NOTE:
      • Make sure that the sensor is oriented correctly.
      • If the sensor is dropped, replace it.
      • Securely connect the connector.
      • When installing the sensor, avoid impacts to the sensor.

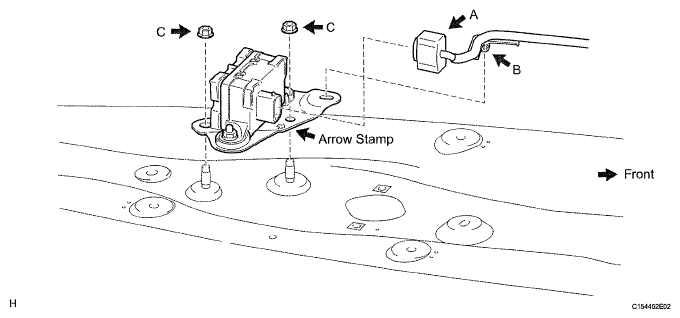

        Fig 1: Locating Sensor Connector, Clamp And Sensor Bracket
        G05649616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR CONSOLE BOX ASSEMBLY  (See INSTALLATION )
  3. INSTALL CONSOLE BOX CARPET  (See INSTALLATION )
  4. INSTALL REAR CONSOLE BOX POCKET  (See INSTALLATION )
  5. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  6. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  (See INSTALLATION )
  8. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION  (See CALIBRATION  )
  9. CHECK YAW RATE SENSOR SIGNAL  (See TEST MODE PROCEDURE  )
