2008 Toyota Sequoia SR5, 5.7 Y, RWDFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

NOTE: When replacing the VSC actuator assembly, perform zero point calibration (See CALIBRATION  ).
  1. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)
    1. Turn the ignition switch off.
    2. Disconnect the A19 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      A19-10 (TS) - H19-12 (TS) Always Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

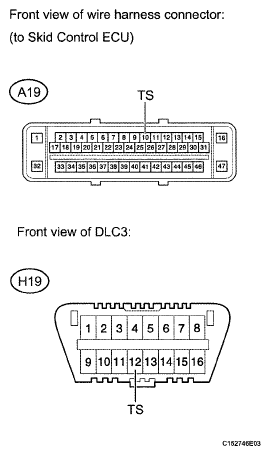

    Fig 1: Identifying H19 Connector Terminal
    G05649589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      H19-4 (CG) - Body ground Always Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 2: Identifying Front View Of DLC3 Connector Terminal
    G05649590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      H19-12 (TS) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 3: Identifying Front View Of DLC3 Connector Terminal
    G05649591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE VSC ACTUATOR ASSEMBLY  (See REMOVAL  )
