Steering Column Assembly: Installation
- INSTALL STEERING COLUMN ASSEMBLY

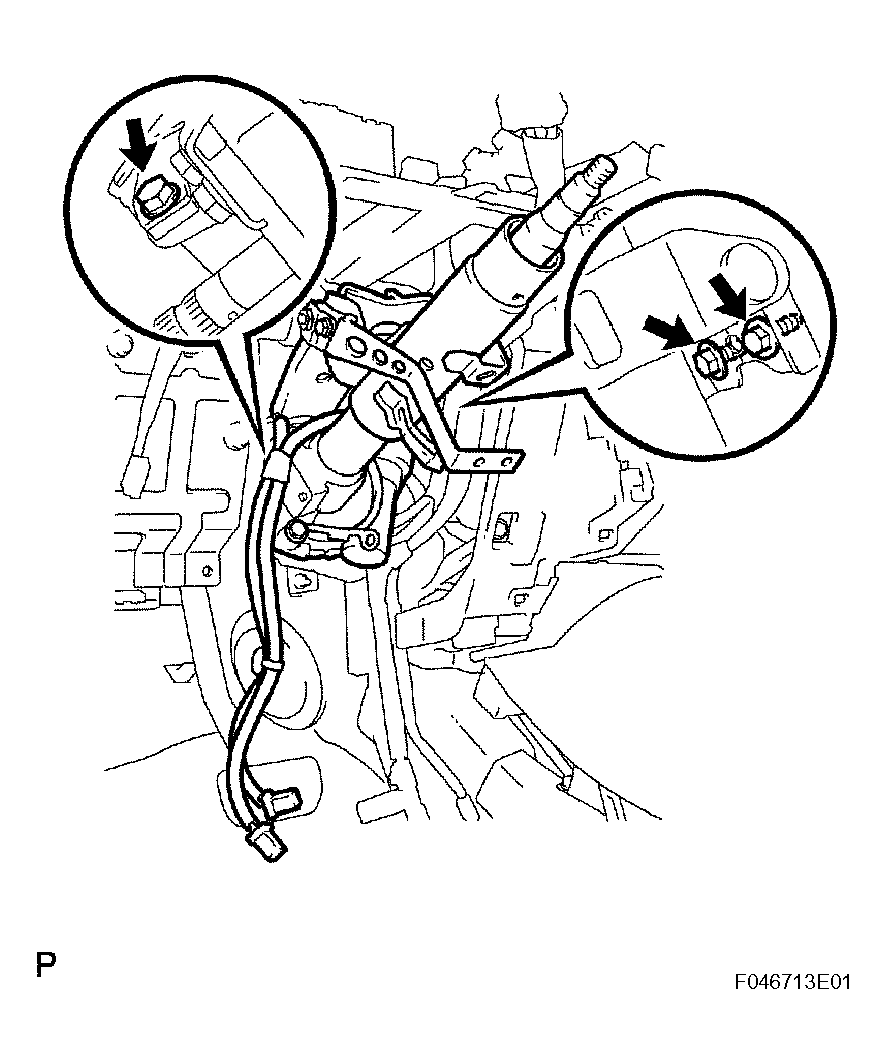

- Install the steering column with the 3 bolts.
Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)
- Connect the connectors and wire harness clamps to the steering column.
- Install the steering column with the 3 bolts.
- INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY

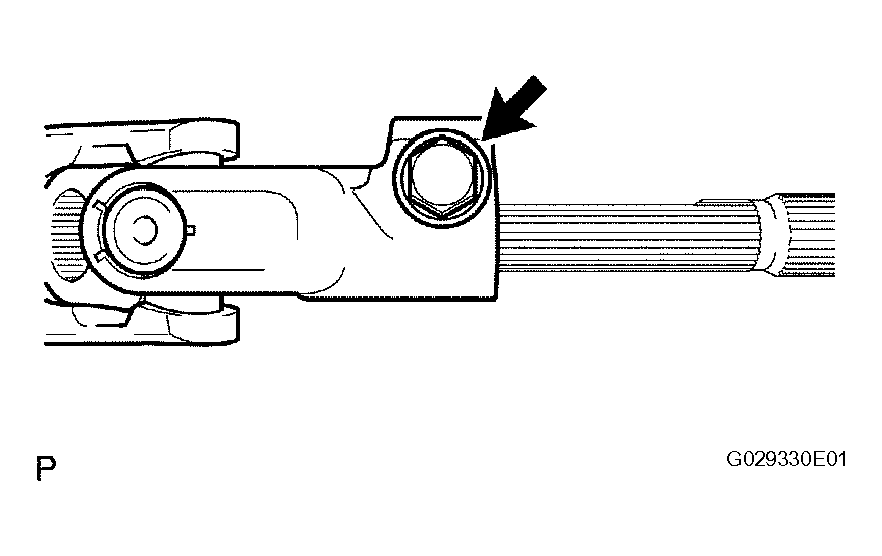

- Temporarily install the steering sliding yoke sub-assembly to the steering intermediate shaft with the bolt.
- INSTALL STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY

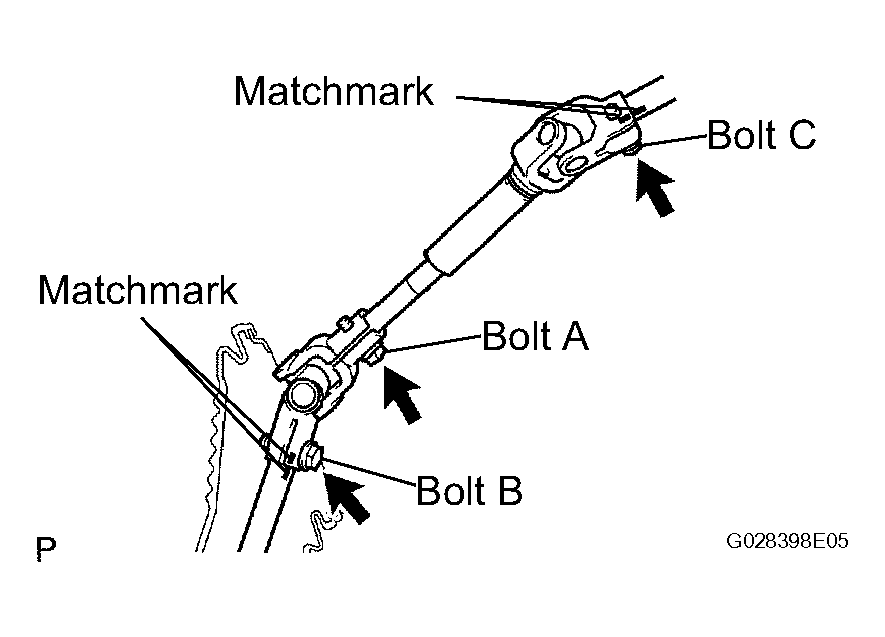

- Align the matchmarks on the steering intermediate shaft assembly and steering column and install them with the bolt labeled C.
Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
- Align the matchmark on the steering intermediate shaft and steering intermediate shaft and install them with the bolt labeled B.
Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
- Tighten the bolt labeled A on the steering sliding yoke.
Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
- Align the matchmarks on the steering intermediate shaft assembly and steering column and install them with the bolt labeled C.
- INSTALL COLUMN HOLE COVER SILENCER SHEET
- INSTALL FRONT FLOOR FOOTREST LH
- Attach the 2 clips to install the front floor footrest.
- INSTALL POWER STEERING ECU ASSEMBLY

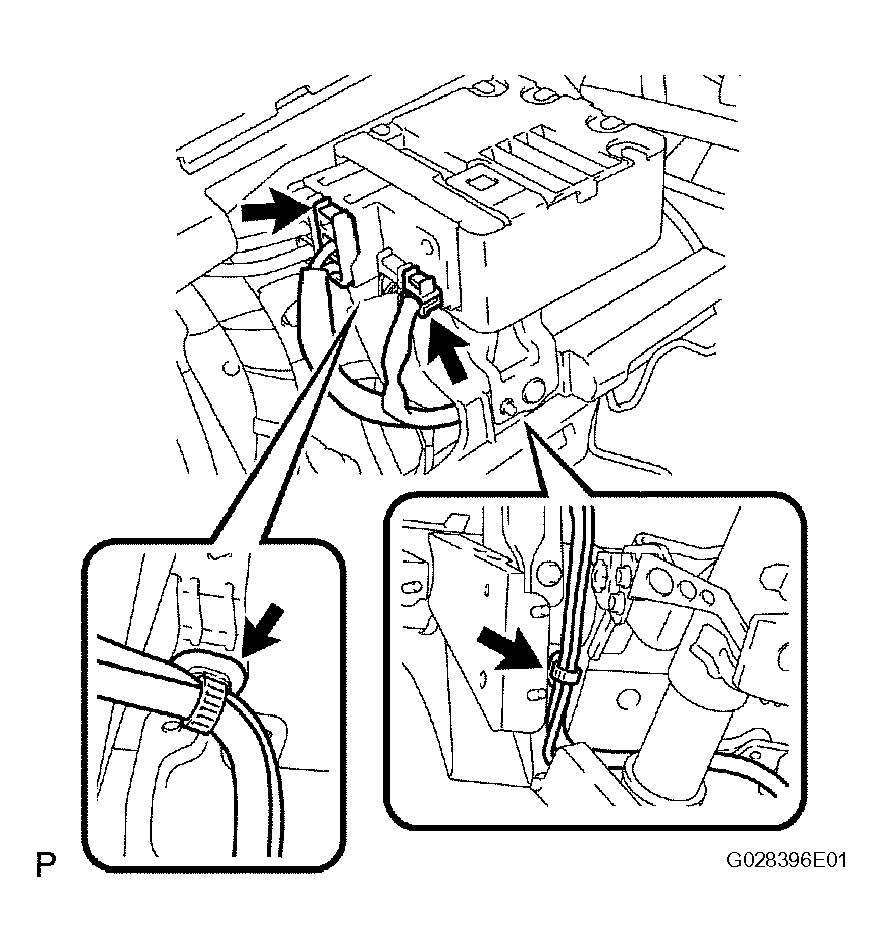

- Connect the 2 steering column connectors to the power steering ECU.
- Install the clamp holding the power steering motor and torque sensor wire harness on the bottom surface of the power steering computer.
- Install the torque sensor wire harness clamp to the instrument panel reinforcement.
- Make sure that the power steering motor and torque sensor wire harnesses do not interfere with other parts while tilting up and down the steering column.
- INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (See INSTALLATION )
- DISCONNECT PASSENGER AIRBAG CONNECTOR (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH ASSEMBLY LH (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH ASSEMBLY RH (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH CORNER PIECE LH (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH CORNER PIECE RH (See INSTALLATION )
- INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (w/ JBL Sound System)
- INSTALL GLOVE COMPARTMENT DOOR (see INSTALLATION )
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (see INSTALLATION )
- INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
- INSTALL MULTI-DISPLAY (See INSTALLATION )
- INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (see INSTALLATION )
- INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY (see INSTALLATION )
- INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See INSTALLATION )
- INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
- INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See INSTALLATION )
- INSTALL COWL SIDE TRIM BOARD RH (See INSTALLATION )
- INSTALL COWL SIDE TRIM BOARD LH (See INSTALLATION )
- INSTALL FRONT DOOR INSIDE SCUFF PLATE LH (See INSTALLATION )
- INSTALL FRONT DOOR INSIDE SCUFF PLATE RH (See INSTALLATION )
- INSTALL SPIRAL CABLE SUB-ASSEMBLY (See INSTALLATION )
- INSPECT SPIRAL CABLE SUB-ASSEMBLY (See INSPECTION )
- INSTALL TURN SIGNAL SWITCH ASSEMBLY
- Install the turn signal switch to the steering column with the clamp.
- INSTALL STEERING COLUMN COVER
- Engage the 4 claws to install the steering column upper cover and steering column lower cover.
HINT:
Fully tilt down the steering column when installing the steering column upper cover and fully tilt it up when installing the steering column cover.
- Engage the 4 claws to install the steering column upper cover and steering column lower cover.
- INSTALL TILT LEVER BRACKET
- Install the tilt level bracket with the 2 screws.
Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
- Install the tilt level bracket with the 2 screws.
- INSPECT STEERING WHEEL CENTER POINT
HINT:
When the steering wheel is not properly centered, remove and refit to center.
- INSTALL STEERING WHEEL ASSEMBLY
- Align the matchmarks on the steering wheel and steering main shaft.
- Install the steering wheel with the set nut.
Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
- INSTALL STEERING PAD ASSEMBLY (See INSTALLATION )
- CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
- INSPECT STEERING PAD ASSEMBLY
- Inspect the steering pad (see ON-VEHICLE INSPECTION ).
- INSTALL NO. 3 STEERING WHEEL LOWER COVER
- INSTALL NO. 2 STEERING WHEEL LOWER COVER
- INSTALL REAR NO. 3 FLOOR BOARD ASSEMBLY
- INSTALL REAR DECK FLOOR BOX
- INSTALL REAR NO. 2 FLOOR BOARD
- INSPECT SRS WARNING LIGHT
- Inspect SRS warning light (see DIAGNOSIS SYSTEM ).
- PERFORM CALIBRATION
- Perform CALIBRATION .
- PERFORM INITIALIZATION
- Perform INITIALIZATION
.NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform INITIALIZATION
.
