Inspection Procedure

1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component which has stored this code.

   HINT:

   • "110 (multi-display)" is the component shown by the sub-code in the example shown in the illustration.
   • The sub-code will be indicated by its physical address.
   • For details of the DTC display, refer to "DIAGNOSIS DISPLAY DETAILED DESCRIPTION " .

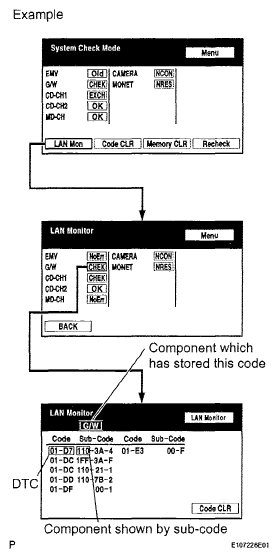

     Fig 1: Identifying Component Shown By Sub-Code

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. inspect the power source circuit of the component shown by the sub-code.

   If the power source circuit is operating normally, proceed to the next step.

   Component table:

   COMPONENT



   Component	Proceed to
   Gateway ECU (1C6)	GATEWAY ECU POWER SOURCE CIRCUIT
   Stereo component amplifier (440)	STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT
   Multi-display (110)	MULTI-DISPLAY POWER SOURCE CIRCUIT

1. for 9 Speaker System:

   Disconnect the R5 and R6 receiver connectors.

2. for 6 Speaker System:

   Disconnect the R5 receiver connector.

3. Measure the resistance of the receiver.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Specified Condition
   R5-9 (TX1+) - R5-10 (TX1-)*1	60 to 80 Ω
   R5-9 (TX+) - R5-10 (TX-)*2	60 to 80 Ω
   R6-5 (TX+) - R6-15 (TX-)*2	60 to 80 Ω
   HINT: *1: for 6 speaker system *2: for 9 speaker system

NG: REPLACE RADIO RECEIVER

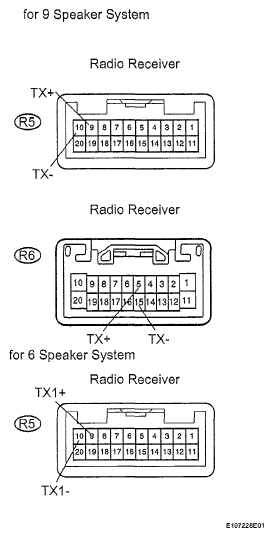

Fig 2: Identifying R5 And R6 Receiver Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

HINT:

• Start the check from the circuit that is near the component shown by the sub-code first.
• For details of the connectors, refer to the "TERMINALS OF ECU " .

1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the radio receiver and the component shown by the sub-code.
   1. Disconnect all connectors between the radio receiver and the component shown by sub-code.
   2. Check for an open or short in the AVC-LAN circuit between the radio receiver and the component shown by the sub-code.

      OK:

      There is no open or short circuit.

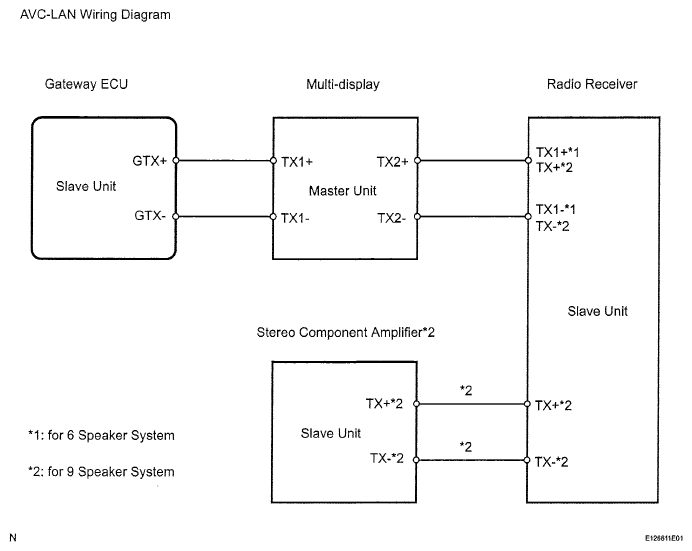

      Fig 3: Audio And Visual System AVC-LAN - Circuit Diagram

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.

   OK:

   Same problem does not occur.

NG: REPLACE GATEWAY ECU

OK: END
