2008 Toyota Matrix Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. CHECK SECURITY INDICATOR LIGHT ASSEMBLY
    1. Remove the security indicator.
    2. Apply battery voltage and check that the security indicator turns on.

      Standard resistance

      RESISTANCE SPECIFICATION

      Measurement Condition Specified Condition
      Battery positive (+) - Terminal 2
      Battery negative (-) - Terminal 1      		 Security indicator turns on

    NG: REPLACE SECURITY INDICATOR LIGHT ASSEMBLY

    Fig 1: Identifying Security Indicator Light Assembly Connectors
    G05195821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (TVIP ECU - SECURITY INDICATOR)
    1. Disconnect the TVIP ECU and security indicator connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      IND (T3-25) - (S4-2) Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

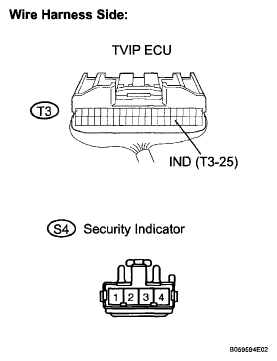

    Fig 2: Identifying TVIP ECU And Security Indicator Connectors
    G05236721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (SECURITY INDICATOR - BODY GROUND)
    1. Disconnect the security indicator connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      (S4-2) - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 3: Identifying Security Indicator Connectors
    G05236722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE TVIP ECU
