2008 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE
Front Speed Sensor: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- REMOVE FRONT WHEEL
- REMOVE FRONT SKID CONTROL SENSOR WIRE LH

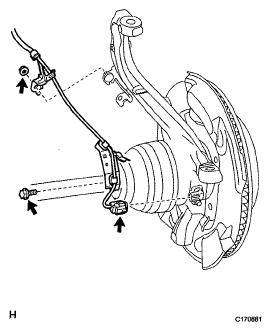

- Disconnect the connector from the front speed sensor.
- Remove the bolt and harness clamp.
- Remove the nut and harness clamp.
- Remove the 2 bolts and 2 harness clamps.
- Disconnect the connector and then remove the bolt, harness clamp and sensor wire.
- REMOVE FRONT SPEED SENSOR LH
- Using a 5 mm hexagon wrench, remove the bolt and speed sensor from the knuckle.
NOTE: Pull out the sensor while trying as much as possible not to rotate it.
