Crawl Switch: Inspection

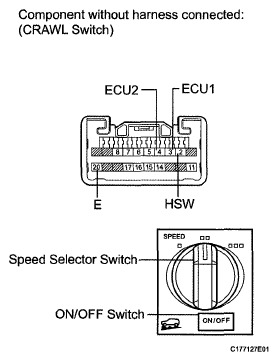

- INSPECT CRAWL SWITCH
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition 3 (ECU1) - 20 (E) Speed selector: MID 10 kΩ or higher Speed selector: HI Speed selector: LO Below 1 Ω 4 (ECU2) - 20 (E) Speed selector: MID 10 kΩ or higher Speed selector: HI Below 1 Ω Speed selector: LO 2 (HSW) - 20 (E) ON/OFF: Pressed Below 1 Ω ON/OFF: Not pressed 10 kΩ or higher If the result is not as specified, replace the suspension control switch (CRAWL switch).
- Measure the resistance according to the value(s) in the table below.
