Terminals Of Ecu
- CHECK AIR CONDITIONING AMPLIFIER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the E36 air conditioning amplifier connector.
- Measure the resistance and voltage according to the value(s) in the table below.RESISTANCE CHART
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E36-5 (IG+) - E36-1 (GND) G - W-B Ignition power supply Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V E36-6 (+B1) - E36-1 (GND) R - W-B Battery power source Always 11 to 14 V E36-7 (+B2) - E36-1 (GND) R-W-B Battery power source Always 11 to 14 V E36-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the E36 air conditioning amplifier connector.
- Measure the voltage according to the value(s) in the table below.VOLTAGE CHART
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E36-24 (RDEF) - E36-1 (GND) G - W-B Defogger relay Engine switch on (IG) and defogger switch off 11 to 14 V Engine switch on (IG) and defogger switch on Below 1 V If the result is not as specified, the air conditioning amplifier or fuse may have a malfunction.

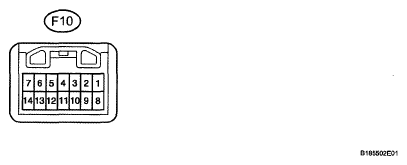

- CHECK AIR CONDITIONING CONTROL ASSEMBLY (w/o Multi-display)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the F10 air conditioning control assembly connector.
- Measure the resistance and voltage according to the value(s) in the table below.RESISTANCE AND VOLTAGE CHART
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition F10-7 (IG+) - F10-1 (GND) G - W-B Ignition power supply Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V F10-1 (GND)-Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
- CHECK MULTI-DISPLAY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the F28 multi-display connector.
- Measure the resistance and voltage according to the value(s) in the table below.RESISTANCE AND VOLTAGE CHART
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition F28-3 (IG) - F28-10 (GND1) G-W-B Ignition power supply Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V F28-10 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
