2008 Toyota FJ Cruiser RWDFACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature Sensor: Inspection

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

Check the resistance.

Using an ohmmeter, measure the resistance between the terminals.

Standard resistance

STANDARD RESISTANCE

Tester Connection	Specified Condition
1 (E2) - 2 (THW)	2.32 to 2.59 kΩ at 20°C (68°F)
1 (E2) - 2 (THW)	0.310 to 0.326 kΩ at 80°C (176°F)

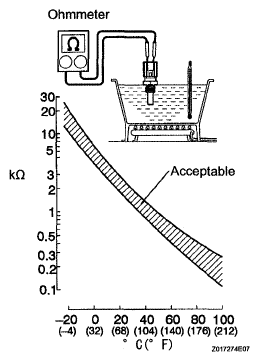

Fig 1: Identifying Resistance Between Engine Coolant Temperature Sensor Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
