VVT Sensor: Removal
HINT:
A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).
- REMOVE AIR CLEANER INLET ASSEMBLY
- REMOVE AIR CLEANER ASSEMBLY

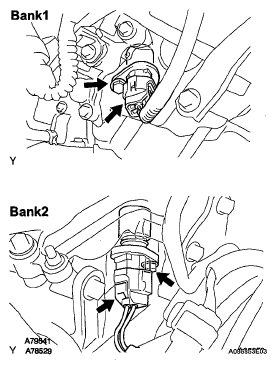

- REMOVE VVT SENSOR
- Disconnect the sensor connector.
- Remove the bolt and sensor.
