Inspection Procedure
HINT:
- Using Techstream monitor results enables the EVAP (Evaporative Emission) system to be confirmed.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
- CONFIRM DTC
- Turn the ignition switch off and wait for 10 seconds.
- Turn the ignition switch to the ON position.
- Turn the ignition switch off and wait for 10 seconds.
- Connect Techstream to the DLC3.
- Turn the ignition switch to the ON position and turn the tester on.
- Select the following menus: Powertrain / Engine and ECT / Trouble Codes.
- Confirm DTCs and freeze frame data.

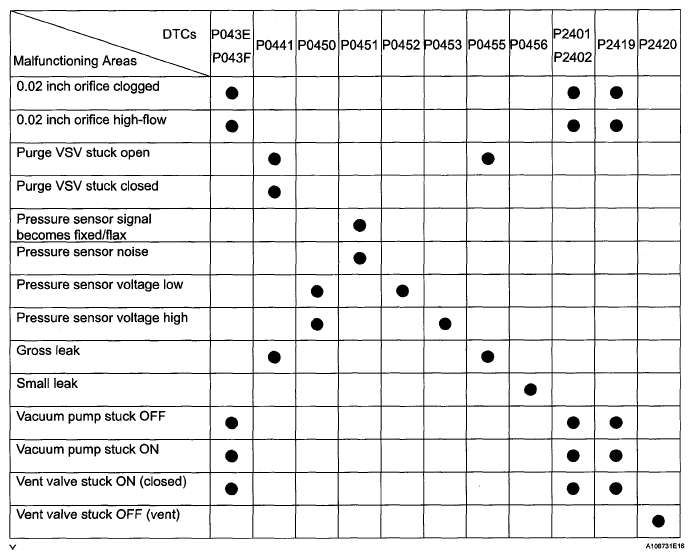

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.
