2008 Toyota 4Runner Sport, 4.0 U, RWDFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. IDENTIFY THE COMPONENT SHOWN BY SUB-CODE
    1. Enter the diagnostic mode.

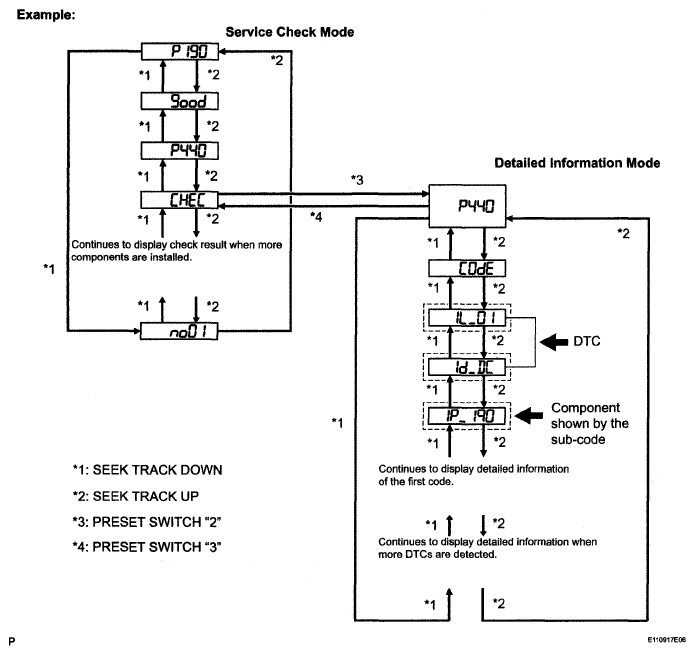

      Fig 1: Identifying Service Check Mode And Detailed Information Mode
      G04966725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Press the preset switch "3" to change to "Detailed Information Mode".
    3. Identify the component shown by the sub-code.

      HINT:

      • "190 (radio receiver)" is the component shown by the sub-code in the example shown in the illustration.
      • For details of the DTC display, refer to "DTC CHECK/CLEAR " .
  2. CHECK POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE
    1. Inspect the power source circuit of the component shown by the sub-code.

      If the power source circuit is operating normally, proceed to the next step.

      Component Table:

      COMPONENT CHART

      Component Proceed to
      Radio receiver (190) Radio receiver power source circuit (See RADIO RECEIVER POWER SOURCE CIRCUIT  )
      Stereo component amplifier (440) Stereo component amplifier power source circuit (See STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT  )

    NEXT

  3. INSPECT RADIO RECEIVER
    1. Disconnect the radio receiver connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      ATX+ (R1-5) - ATX- (R1-15) ((1)) Always 60 to 80 Ω
      TXM+ (R4-9) - TXM- (R4-10) Always 60 to 80 Ω
      (1) 10 Speaker System

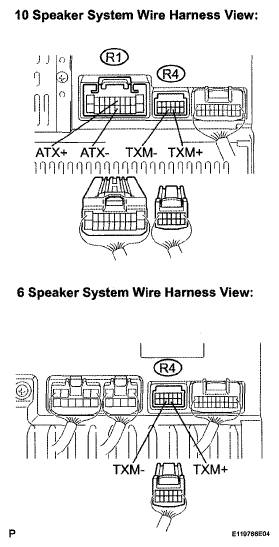

      3. Fig 2: Identifying Radio Receiver R1 And R4 Connector Terminals
      G04966654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE RADIO RECEIVER

    OK: Go To Next Step

  4. CHECK HARNESS AND CONNECTOR (TELEVISION DISPLAY ASSEMBLY - COMPONENT SHOWN BY SUB-CODE)

    HINT:

    • Start the check from the circuit that is near the component shown by the sub-code first.
    • For details of the connectors, refer to "TERMINALS OF ECU " .
    1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the television display assembly and the component shown by the sub-code.
      1. Disconnect all connectors between the television display assembly and the component shown by sub-code.
      2. Check for an open or short in the AVC-LAN circuit between the television display assembly and the component shown by the sub-code.

        OK:

        There is no open or short circuit.

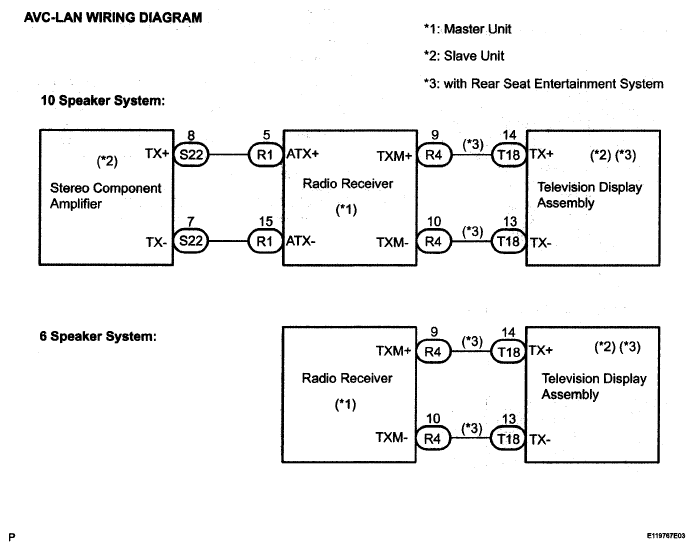

        Fig 3: Identifying AVC-LAN Wiring Diagram
        G04966655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go To Next Step

  5. REPLACE COMPONENT SHOWN BY SUB-CODE
    1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.

      OK:

      Same problem does not occur.

    NG: REPLACE TELEVISION DISPLAY ASSEMBLY

    OK: END
