Engine Coolant Temperature Sensor: Inspection
- INSPECT ENGINE COOLANT TEMPERATURE SENSOR
- Check the resistance.

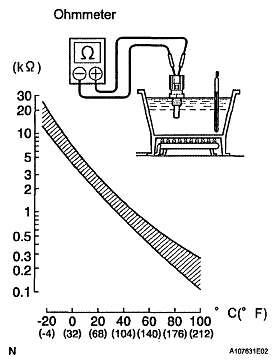

- Using an ohmmeter, measure the resistance between the terminals.
Standard resistance
RESISTANCE SPECIFICATIONCondition Specified Condition Approximately 20°C (68° F) 2.32 to 2.59 kΩ Approximately 80°C (176°F) 0.310 to 0.326 kΩ NOTE: When checking the engine coolant temperature sensor in water, keep the terminals dry. After the check, wipe the sensor dry.If the resistance is not as specified, replace the engine coolant temperature sensor.
- Using an ohmmeter, measure the resistance between the terminals.
- Check the resistance.
