2007 Toyota Prius BaseFACTORY OEM SERVICE PROCEDURE

Supplemental Restraint System: SST

SST REFERENCE

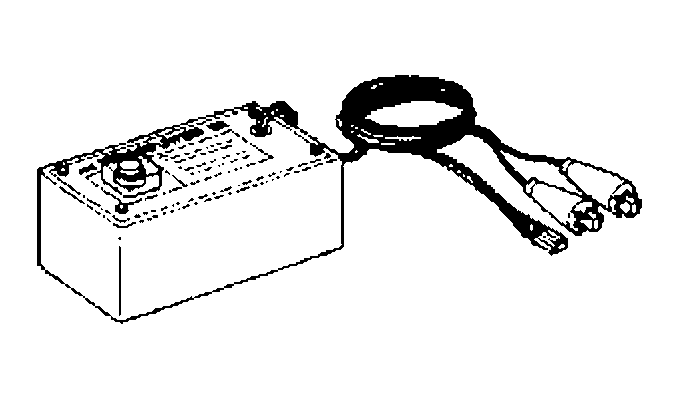

G04471764Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09082-00700 SRS Airbag Deployment Tool

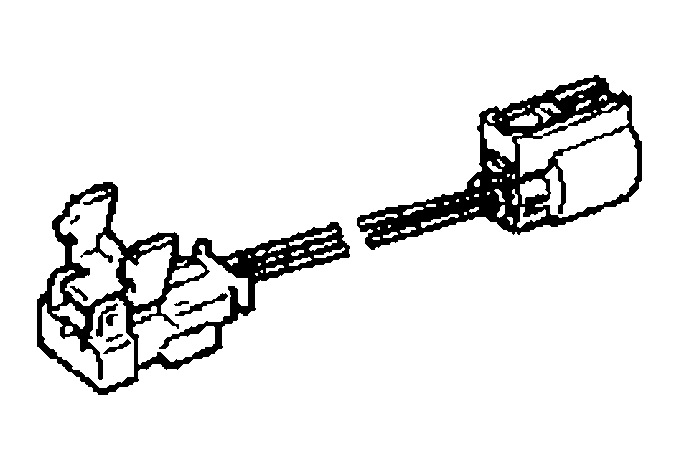

G04471765Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09082-00750 Airbag Deployment Wire Sub-harness No.3
G04471766Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09082-00780 Airbag Deployment Wire Sub-harness No.6

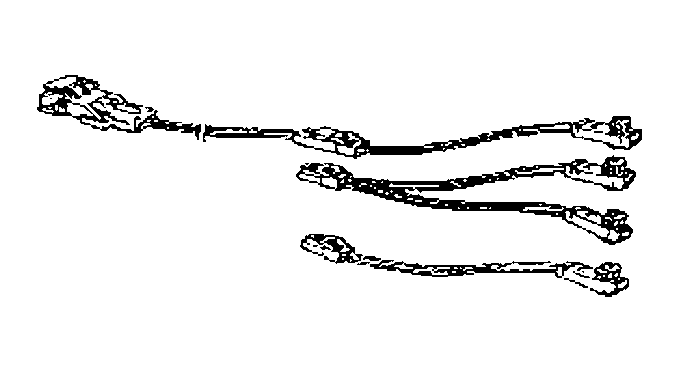

G04471767Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09082-00802 Airbag Deployment Wire Sub-Harness No. 8

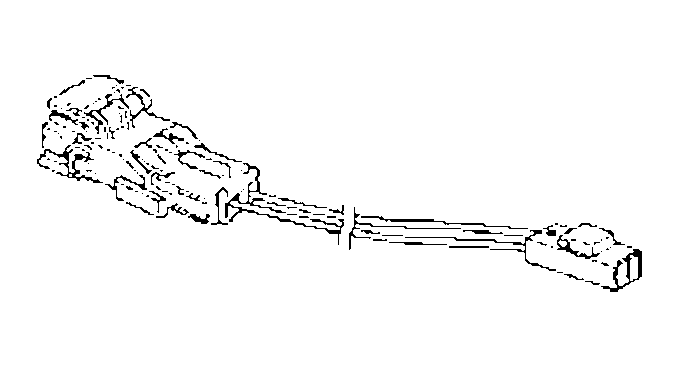

G04471768Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
(09082-10801) Wire A

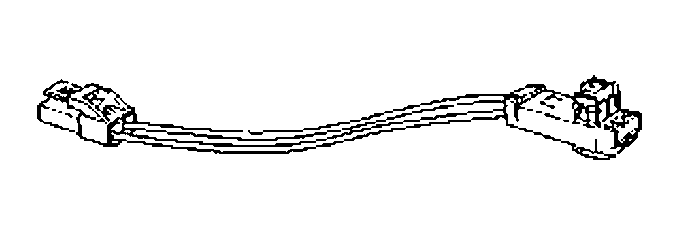

G04471769Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
(09082-20801) Wire B

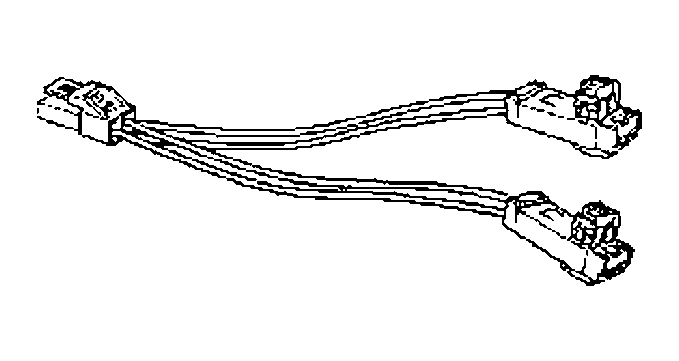

G04471770Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
(09082-30801) Wire C

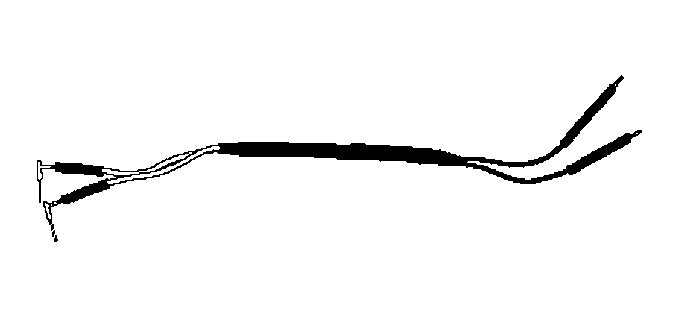

G04471771Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09843-18060 SRS Check Wire
