2007 Toyota Prius BaseFACTORY OEM SERVICE PROCEDURE

1NZ-FXE Cooling: SST

SST REFERENCE

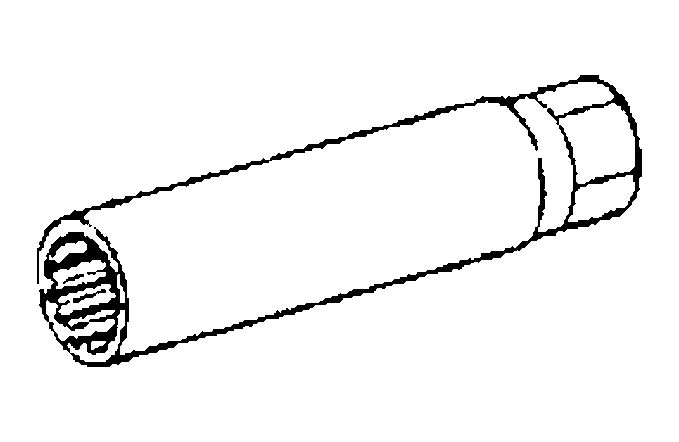

G04471632Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09817-33190 Sensor Socket Wrench

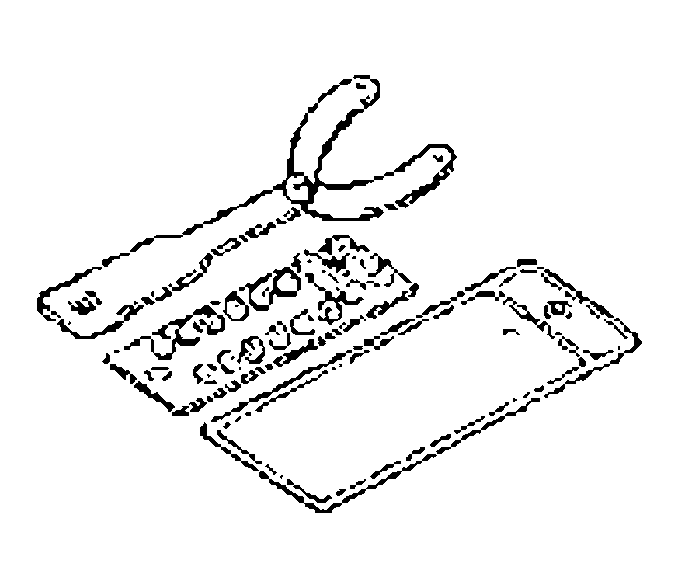

G04471633Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09960-10010 Variable Pin Wrench Set

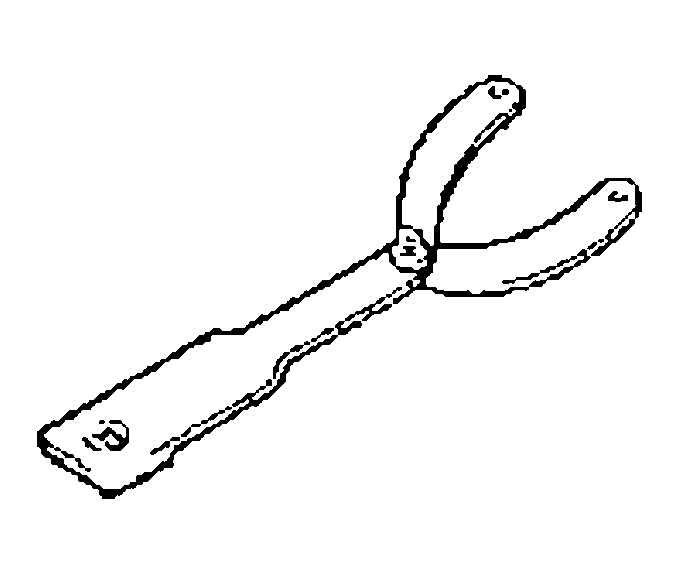

G04471634Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
(09962-01000) Variable Pin Wrench Arm Assembly

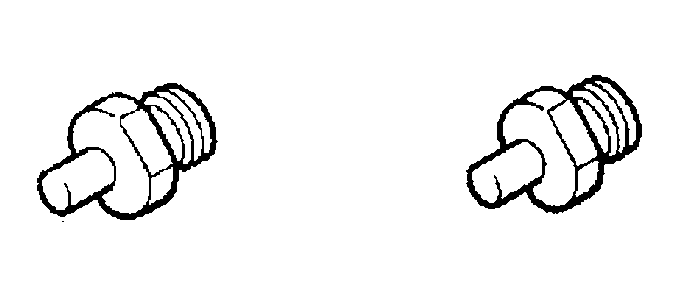

G04471635Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
(09963-00600) Pin 6
