Inspection Procedure
HINT:
- Using an intelligent tester monitor results enables the EVAP (Evaporative Emission) system to be confirmed.
- Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
- CONFIRM DTC
- Turn the ignition switch OFF and wait for 10 seconds.
- Turn the ignition switch ON.
- Turn the ignition switch OFF and wait for 10 seconds.
- Connect the intelligent tester to the DLC3.
- Turn the ignition switch ON and press the intelligent tester switch ON.
- Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
- Confirm DTCs and freeze frame data.

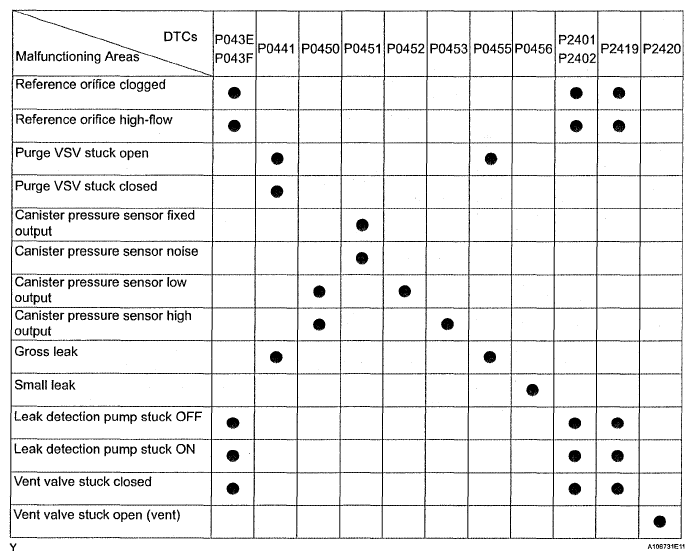

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.
