INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY

Inspect the regulator motor operation.

HINT:

The driver's side and rear RH regulator motors should be inspected in the same procedure.

The passenger's side and rear LH regulator motors should be inspected in the same procedure.

Check that the motor operates smoothly when battery positive voltage is applied to each terminal of the connector.

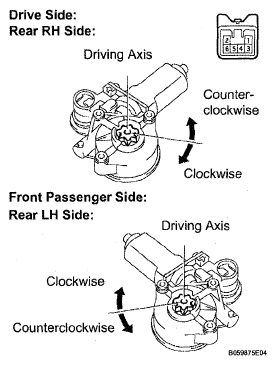

Fig 1: Inspecting Power Window Regulator Motor Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard: Driver's side and rear RH side

MEASURING SPECIFIED CONDITION

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 4 Battery negative (-) → Terminal 5	Clockwise toward driving axis
Battery positive (+) → Terminal 5 Battery negative (-) → Terminal 4	Counterclockwise toward driving axis

Front passenger's side and rear LH side

MEASURING SPECIFIED CONDITION

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 5 Battery negative (-) → Terminal 4	Clockwise toward driving axis
Battery positive (+) → Terminal 4 Battery negative (-) → Terminal 5	Counterclockwise toward driving axis

If the result is not as specified, replace the motor.

Inspect the PTC operation inside the regulator motor.
NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
1. Set a DC 400 A probe of the TOYOTA electrical tester to terminal 4 or 5 of the wire harness.
  NOTE: Match the arrow mark of the probe with the current direction.
