2007 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE
Power Steering: SST
SST POWER STEERING TOOLS
| 09023-38201 | Union Nut Wrench 12 mm | - | |
| 09023-38401 | Union Nut Wrench 14 mm | - | |
| 09616-00011 | Steering Worm Bearing Adjusting Socket | - | |

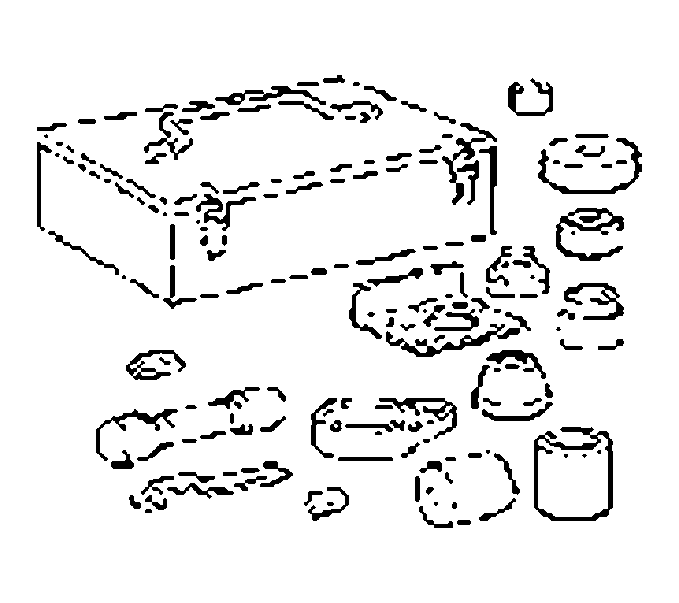

| 09630-00014 | Power Steering Gear Housing Overhaul Tool Set | - | |

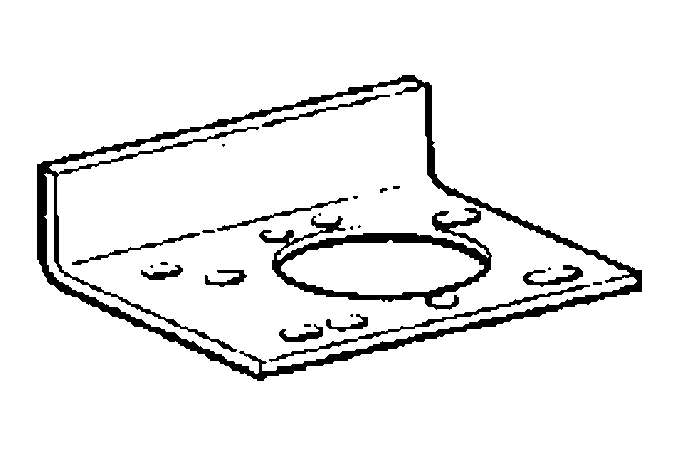

| (09631-00132) | Vane Pump Bracket | - | |
| (09631-00142) | Overhaul Stand | - | |
| 09631-00350 | Steering Rack Cover 35 | - | |

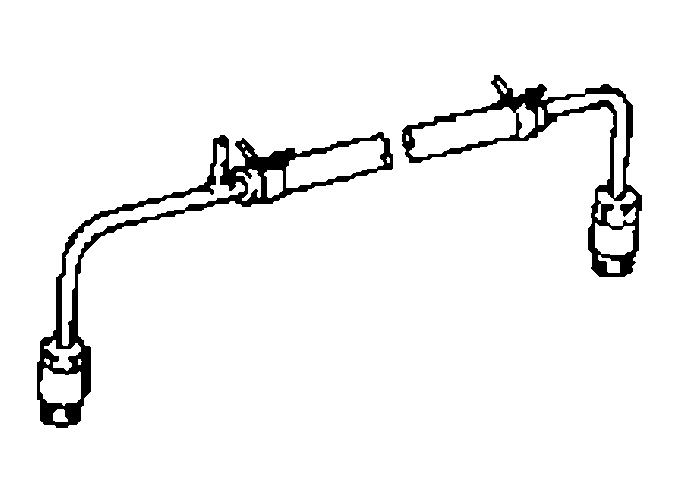

| 09631-12071 | Steering Rack Oil Seal Test Tool | - | |
| 09631-20060 | Bearing Guide Nut Wrench | - | |
| 09631-20081 | Seal Ring Tool | - | |

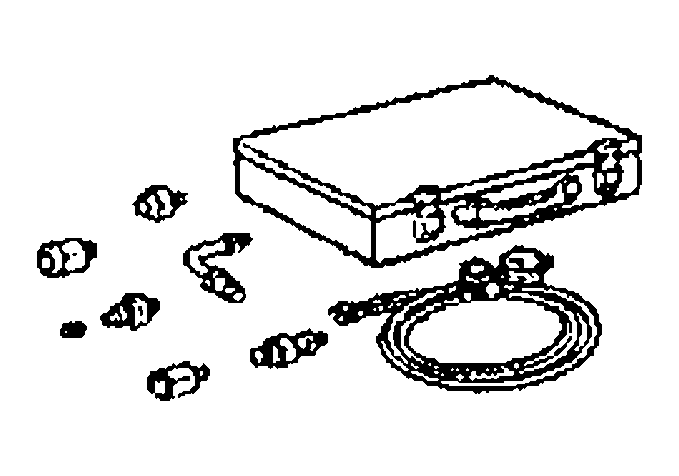

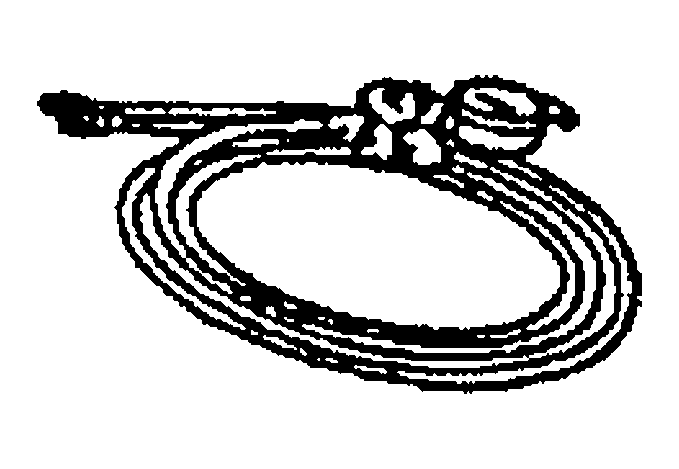

| 09640-10010 | Power Steering Pressure Gauge Set | - | |
| (09641-01010) | Gauge Assembly | - | |
| (09641-01030) | Attachment B | - | |
| (09641-01060) | Attachment E | - | |

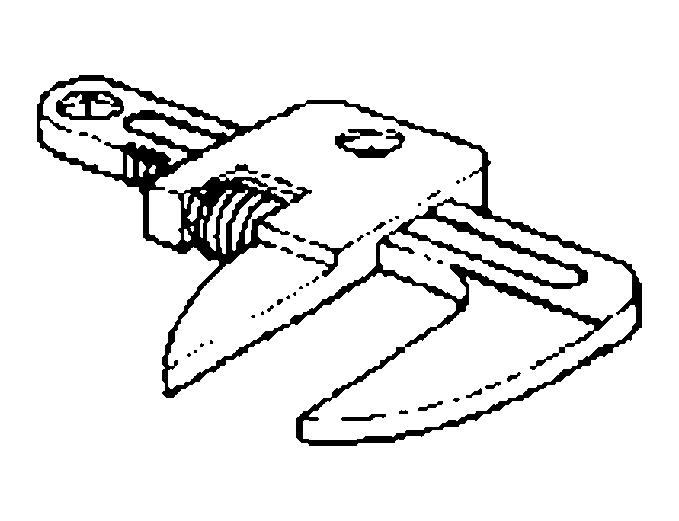

| 09922-10010 | Variable Open Wrench | - | |

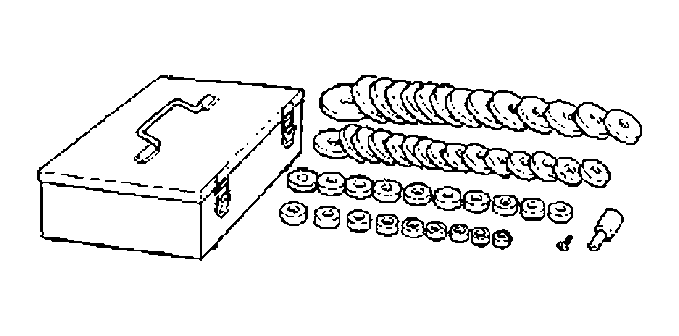

| 09950-60010 | Replacer Set | - | |
| (09951-00180) | Replacer 18 | - | |
| (09951-00260) | Replacer 26 | - | |
| (09951-00280) | Replacer 28 | - | |
| (09951-00320) | Replacer 32 | - | |
| (09951-00330) | Replacer 33 | - | |
| (09951-00360) | Replacer 36 | - | |
| (09952-06010) | Adapter | - | |

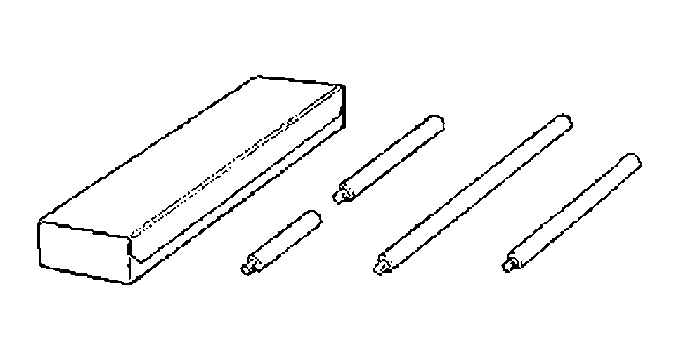

| 09950-70010 | Handle Set | - | |
| (09951-07100) | Handle 100 | - | |
| (09951-07150) | Handle 150 | - | |
| (09951-07200) | Handle 200 | - |
