2007 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE
Hf2A Transfer: SST
HF2A TRANSFER SST
| 09316-12010 | Transfer Bearing Replacer | - | |
| 09316-20011 | Transfer Bearing Replacer | - | |

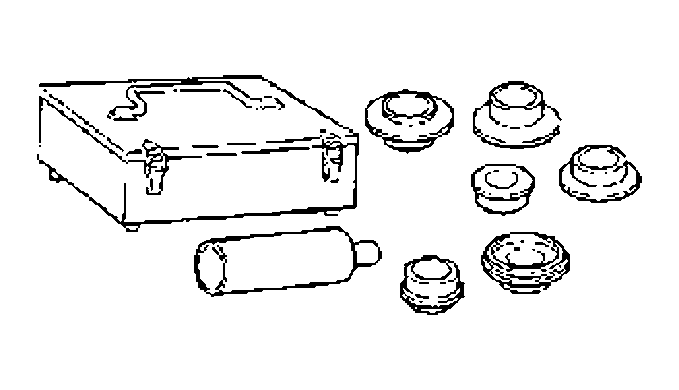

| 09316-60011 | Transmission & Transfer Bearing Replacer | - | |
| (09316-00011) | Replacer Pipe | - | |
| (09316-00021) | Replacer A | - | |
| (09316-00031) | Replacer B | - | |
| (09316-00041) | Replacer C | - | |
| (09316-00061) | Replacer E | - | |
| (09316-00071) | Replacer F | - | |
| 09325-12010 | Transmission Oil Plug | - | |

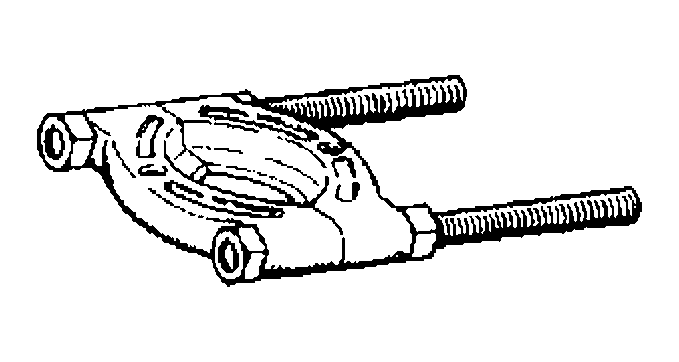

| 09950-00020 | Bearing Remover | - | |
| 09950-00030 | Bearing Remover Attachment | - | |

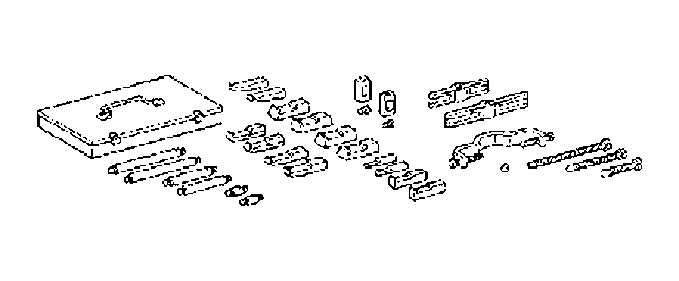

| 09950-40011 | Puller B Set | - | |
| (09951-04010) | Hanger 150 | - | |
| (09951-04020) | Hanger 200 | - | |

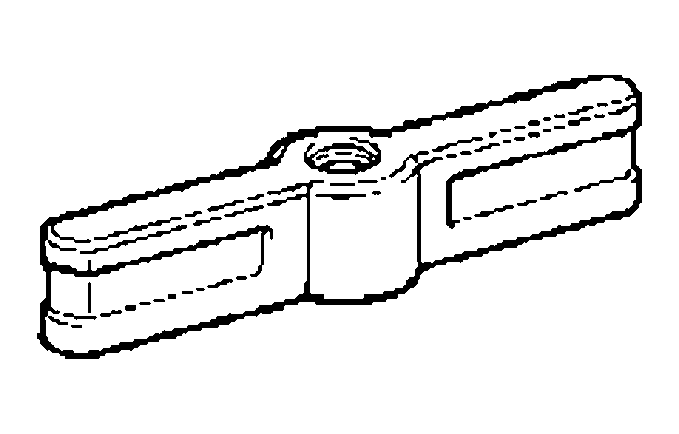

| (09952-04010) | Slide Arm | - | |

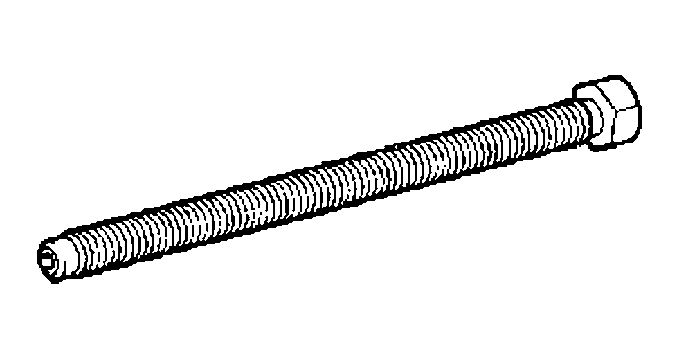

| (09953-04030) | Center Bolt 200 | - | |
| (09954-04010) | Arm 25 | - | |
| (09954-04020) | Arm 100 | - | |
| (09955-04011) | Claw No.1 | - | |
| (09955-04021) | Claw No.2 | - | |
| (09955-04051) | Claw No.5 | - | |
| (09955-04061) | Claw No.6 | - | |
| (09957-04010) | Attachment | - | |
| (09958-04011) | Holder | - | |

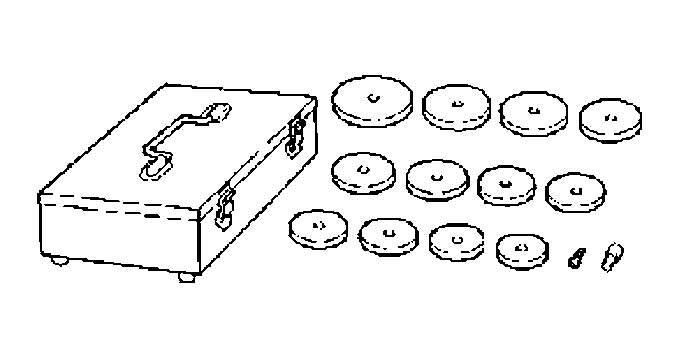

| 09950-60010 | Replacer Set | - | |
| (09951-00270) | Replacer 27 | - | |
| (09951-00320) | Replacer 32 | - | |
| (09951-00330) | Replacer 33 | - | |
| (09951-00400) | Replacer 40 | - | |
| 09950-60020 | Replacer Set No.2 | - | |
| (09951-00890) | Replacer 89 | - | |
| 09950-70010 | Handle Set | - | |

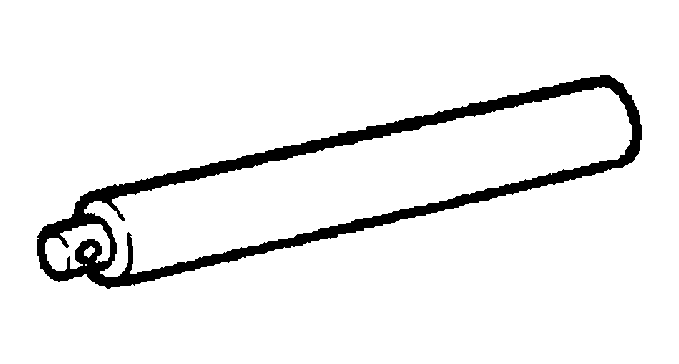

| (09951-07150) | Handle 150 | - |
