2007 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE
Ignition System: Preparation: Differential: SST
DIFFERENTIAL SST

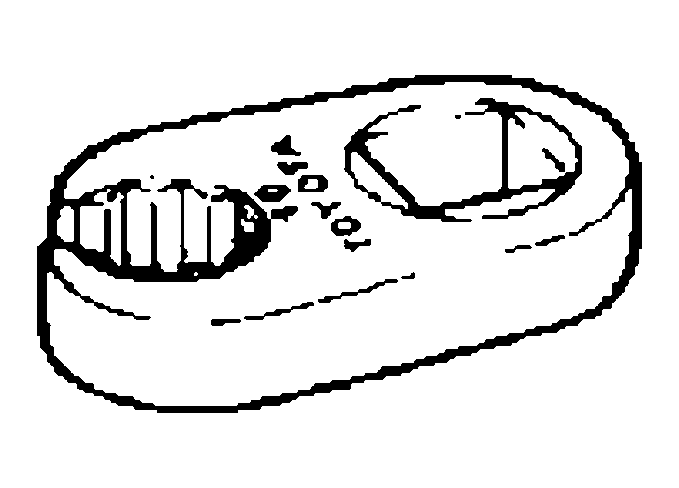

| 09023-00101 | Union Nut Wrench 10 mm | - | |

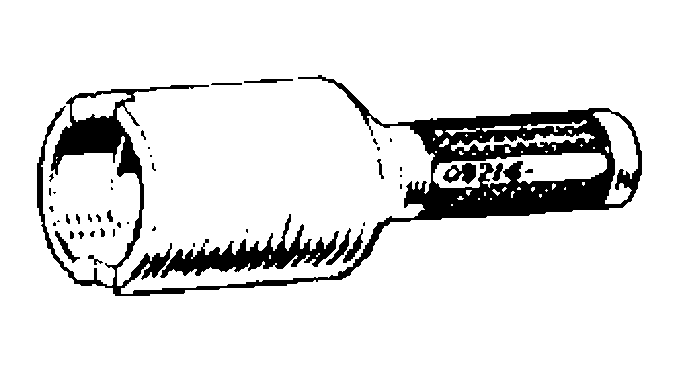

| 09214-76011 | Crankshaft Pulley Replacer | - | |
| 09223-00010 | Cover & Seal Replacer | - | |
| 09223-15020 | Oil Seal & Bearing Replacer | - | |
| 09308-00010 | Oil Seal Puller | - | |
| 09308-10010 | Oil Seal Puller | - | |
| 09316-60011 | Transmission & Transfer Bearing Replacer | - | |
| (09316-00011) | Replacer Pipe | - | |
| (09316-00021) | Replacer A | - | |

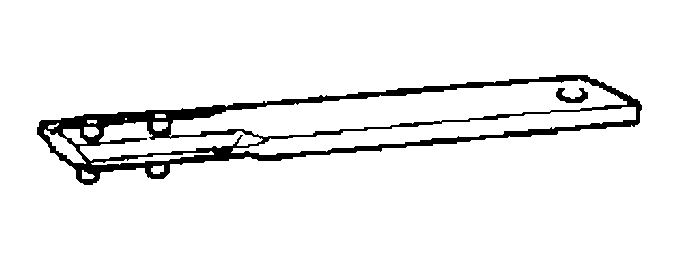

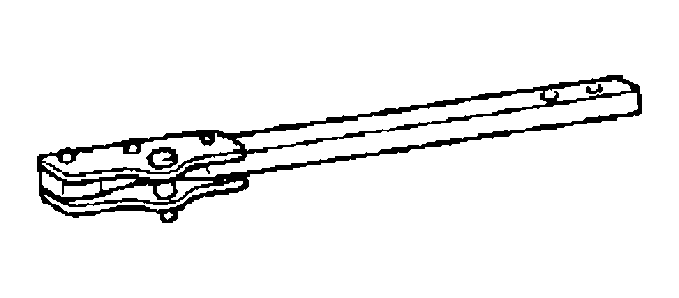

| 09330-00021 | Companion Flange Holding Tool | - | |

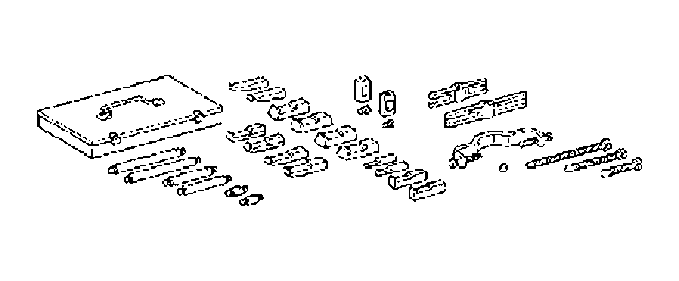

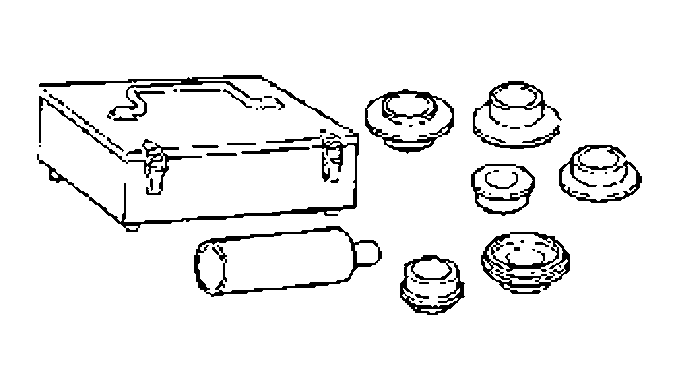

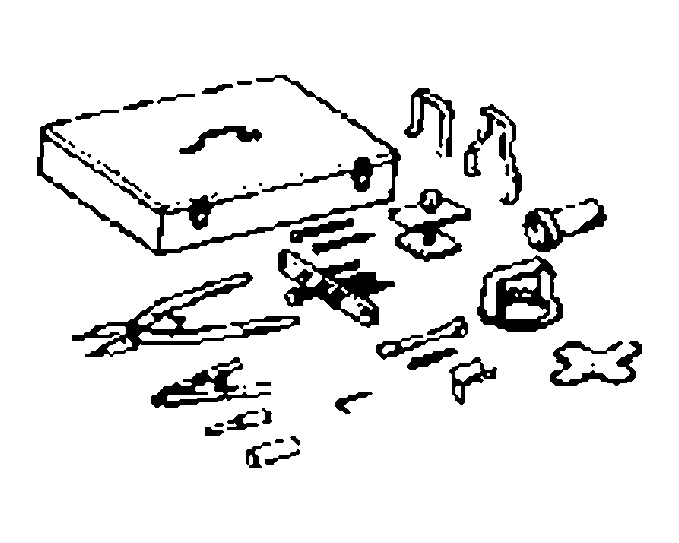

| 09350-30020 | TOYOTA Automatic Transmission Tool Set | - | |

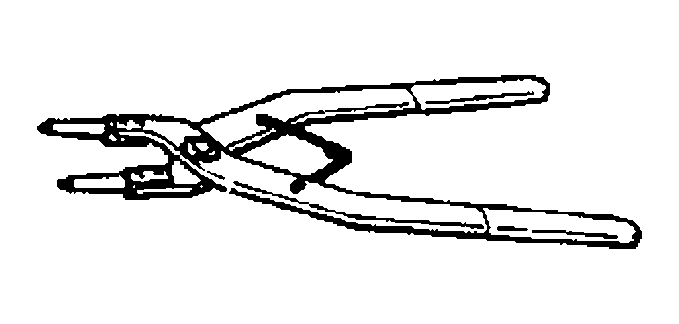

| (09350-07060) | No.1 Snap Ring Expander | - | |
| 09502-12010 | Differential Bearing Replacer | - | |
| 09504-00011 | Differential Side Bearing Adjusting Nut Wrench | - | |
| 09504-22011 | Differential Side Bearing Replacer | - | |
| 09506-30012 | Differential Drive Pinion Rear Bearing Cone Replacer | - | |
| 09506-35010 | Differential Drive Pinion Rear Bearing Replacer | - | |
| 09550-00032 | Replacer | - | |
| 09554-30011 | Differential Oil Seal Replacer | - | |
| 09556-22010 | Drive Pinion Front Bearing Remover | - | |
| 09710-30050 | Suspension Arm Bushing Replacer | - | |
| 09726-40010 | Lower Control Shaft Bearing Replacer | - | |

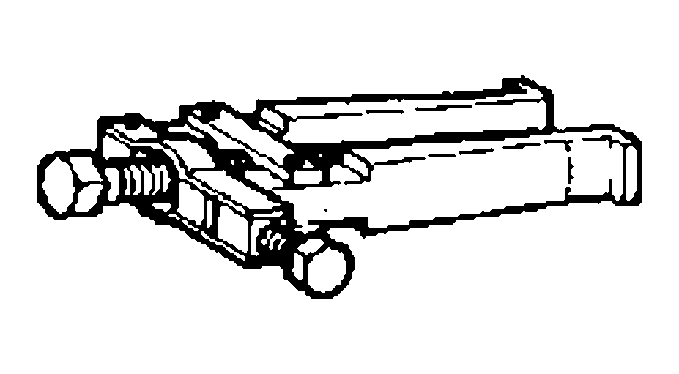

| 09950-00020 | Bearing Remover | - | |
| 09950-00030 | Bearing Remover Attachment | - | |

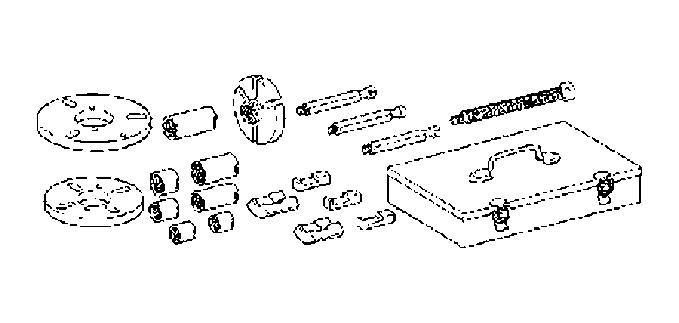

| 09950-30012 | Puller A Set | - | |
| (09951-03010) | Upper Plate | - | |
| (09953-03010) | Center Bolt | - | |
| (09954-03010) | Arm | - | |
| (09955-03030) | Lower Plate 130 | - | |
| (09956-03020) | Adapter 18 | - | |
| (09956-03040) | Adapter 22 | - | |
| 09950-40011 | Puller B Set | - | |
| (09951-04020) | Hanger 200 | - | |
| (09952-04010) | Slide Arm | - | |
| (09953-04030) | Center Bolt 200 | - | |
| (09954-04010) | Arm 25 | - | |
| (09955-04061) | Claw No.6 | - | |
| (09957-04010) | Attachment | - | |
| (09958-04011) | Holder | - | |
| 09950-60010 | Replacer Set | - | |
| (09951-00400) | Replacer 40 | - | |
| (09951-00410) | Replacer 41 | - | |
| (09951-00480) | Replacer 48 | - | |
| 09950-60020 | Replacer Set No.2 | - | |
| (09951-00710) | Replacer 71 | - | |
| (09951-00730) | Replacer 73 | - | |
| (09951-00780) | Replacer 78 | - | |

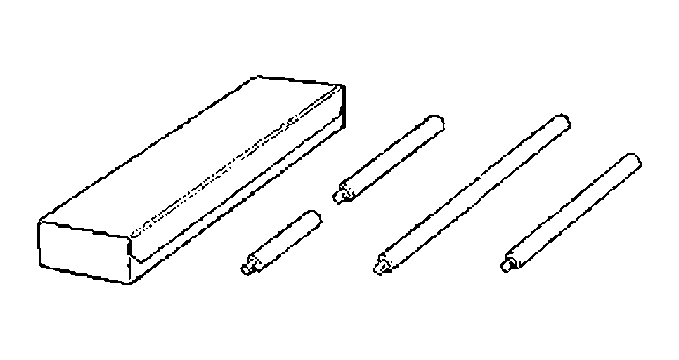

| 09950-70010 | Handle Set | - | |
| (09951-00710) | Replacer 71 | - | |
| (09951-00890) | Replacer 89 | - | |
| (09951-07100) | Handle 100 | - | |
| (09951-07150) | Handle 150 | - |
