2007 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

Fuel System: Precaution

CAUTION:
  • Before working on the fuel system, disconnect the negative (-) terminal cable from the battery.
  • Do not smoke or be near an open flame when working on the fuel system.
  • Keep gasoline away from rubber or leather parts.
  1. DISCHARGE FUEL SYSTEM PRESSURE
    CAUTION:
    • Do not disconnect any part of the fuel system until you have discharged the fuel system pressure.
    • Even after discharging the fuel pressure, place a cloth or equivalent over fittings as you separate them to reduce the risk of fuel spray on yourself or in the engine compartment.
    1. Disconnect the cable from the negative (-) battery terminal.
      NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
    2. Disconnect the fuel pump connector.

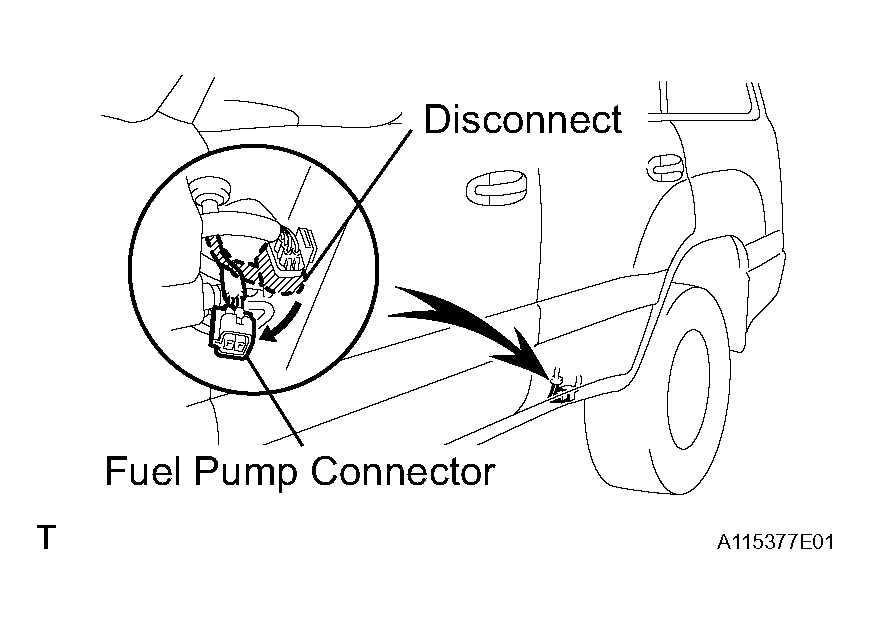

      Fig 1: Disconnecting Fuel Pump Connector
      G04435970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the cable to the negative (-) battery terminal.
    4. Start the engine. After the engine has stopped on its own, turn the ignition switch OFF.

      HINT:

      DTC P0171/0174 (system too lean) may be set.

    5. Crank the engine again, then check that the engine does not start.
    6. Loosen the fuel tank cap, then discharge the pressure in the fuel tank completely.
    7. Connect the fuel pump connector.
  2. FUEL SYSTEM
    1. When disconnecting the high fuel pressure line, a large amount of gasoline will spill out. Follow these procedures.
      1. Discharge the fuel system pressure (see step  1 ).
    2. Observe these precautions when connecting the union bolt (fuel pressure pulsation damper) on the high pressure pipe union.
      1. Always use 2 new gaskets.

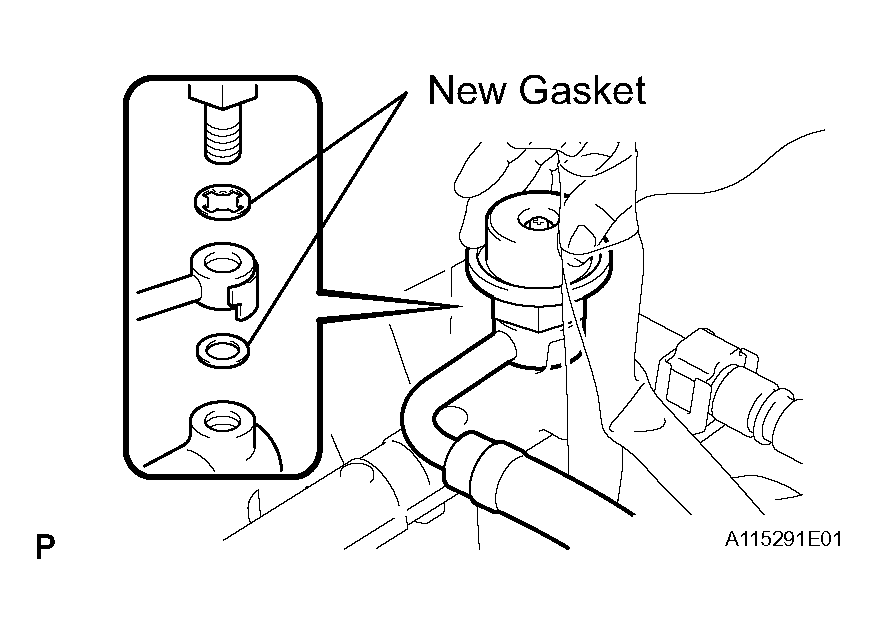

        Fig 2: Using New Gasket
        G04435971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Tighten the union bolt by hand.
      3. Using SST, tighten the union bolt to the specified torque.

        SST 09612-24014

        Torque:

        • 33 N*m (340 kgf*cm, 24 ft.*lbf) for use with SST
        • 39 N*m (400 kgf*cm, 29 ft.*lbf) for use without SST

        HINT:

        Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

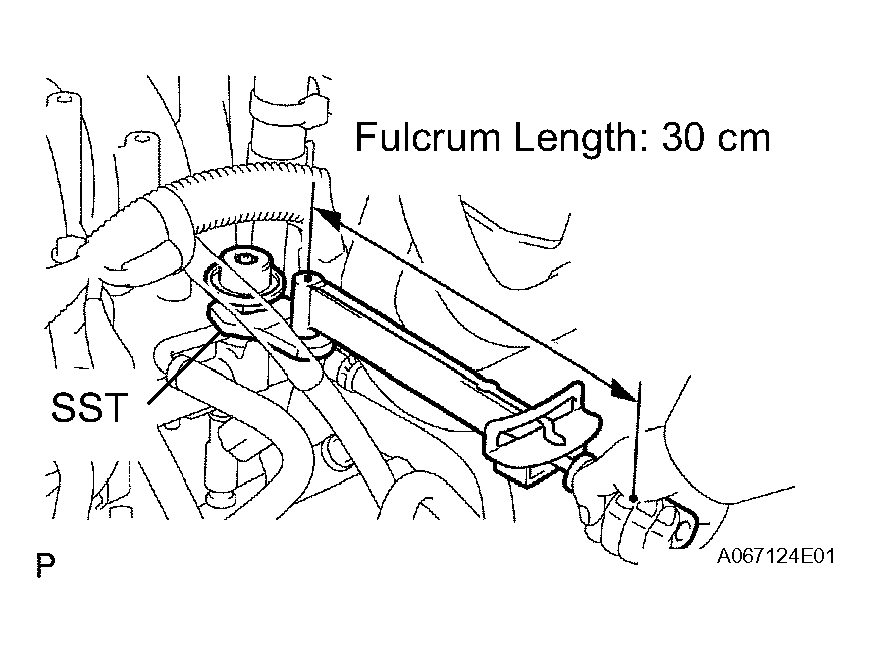

        Fig 3: Tightening Union Bolt Using Torque Wrench
        G04435972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. When connecting the flare nut on the high pressure pipe union, follow the procedure below:
      1. Apply a light coat of engine oil to the flare nut, and tighten the flare nut by hand.
      2. Using SST, tighten the flare nut to the specified torque.

        SST 09023-12701

        NOTE: Do not rotate the fuel filter outlet when tightening the flare nut.

        Torque:

        • 34 N*m (345 kgf*cm, 25 ft.*lbf) for use with SST
        • 38 N*m (380 kgf*cm, 28 ft.*lbf) for use without SST

        HINT:

        Use a torque wrench with a fulcrum length of 30 cm (11.81 in.)

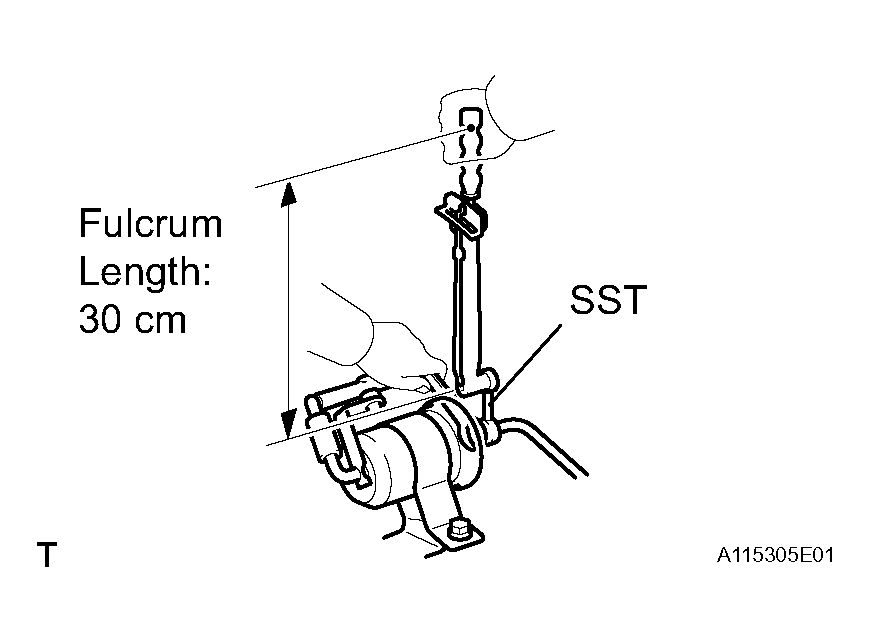

      Fig 4: Tightening Flare Nut Using Torque Wrench
      G04435973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Observe these precautions when removing and installing the injector.
      1. Never reuse the O-rings.
      2. When placing a new O-ring on the injector, take care not to damage it in any way.
      3. Coat new O-rings with grease or gasoline before installing them. Never use engine, gear or brake oil.

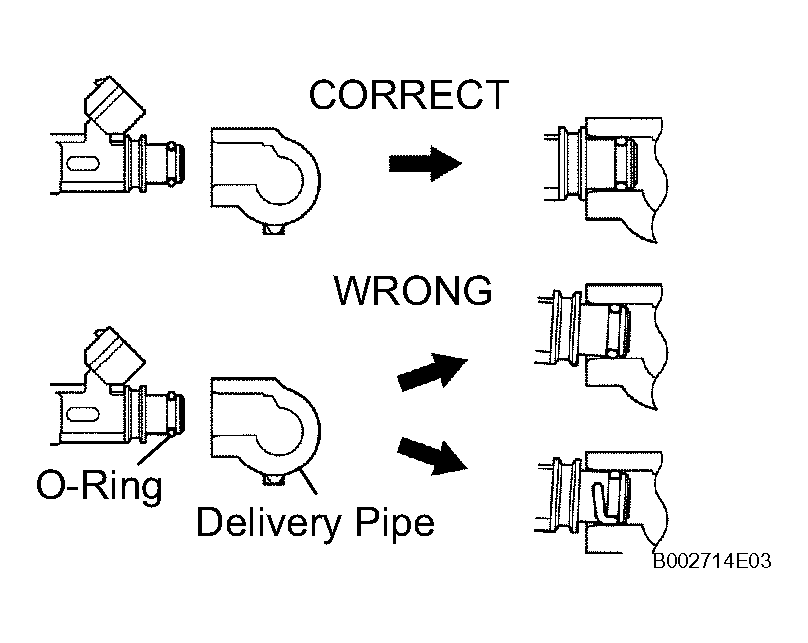

        Fig 5: Precautions When Removing & Installing Injector
        G04435974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the injector to the delivery pipe and cylinder head as shown in Fig 6. Before installing the injector, be sure to apply grease or gasoline on the place where the delivery pipe touches the O-ring of the injector.

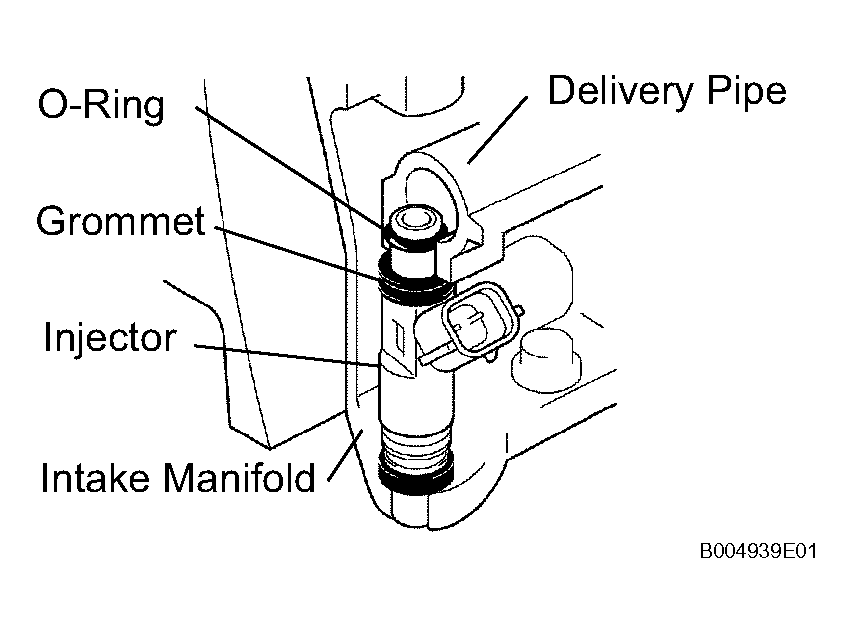

      Fig 6: Installing Injector To Delivery Pipe & Cylinder Head
      G04435975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Observe these precautions when disconnecting the fuel tube connector (quick type A).
      1. w/Fuel pipe clamp type:

        Remove the fuel pipe clamp.

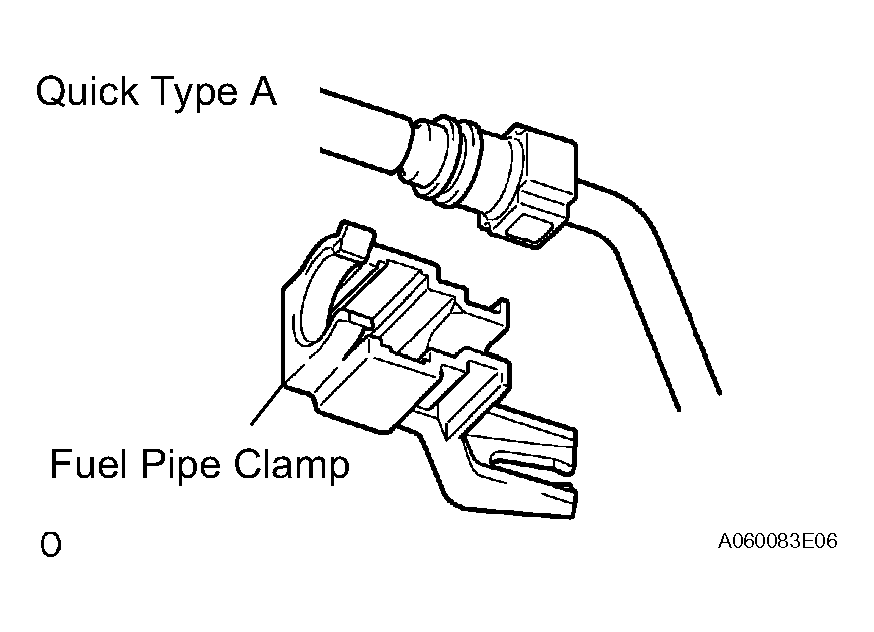

        Fig 7: Removing Fuel Pipe Clamp
        G04435976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

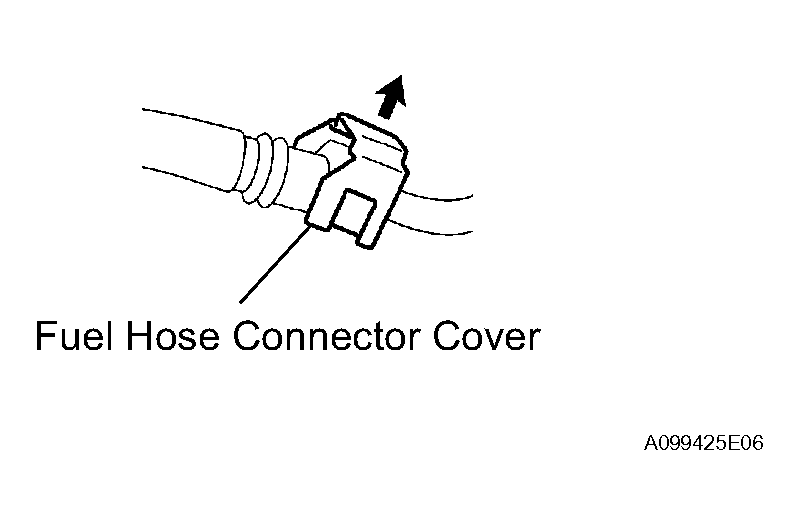

      2. w/Fuel hose connector cover type:

        Disengage the lock claw by lifting up the cover as shown in Fig 8.

        Fig 8: Disengaging Lock Claw By Lifting Up Cover
        G04435977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Check for dirt or mud on the pipe and around the connector before disconnection. Clean if necessary.
      4. Disconnect the connector by hand.
      5. If the connector and the pipe are stuck, pinch the connector, push and pull the pipe to disconnect the pipe and pull it out.
        NOTE: Do not use any tools.
