2007 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

Mass Air Flow Meter: Inspection

INSPECT MASS AIR FLOW METER

Check the output voltage.
1. Apply battery voltage across terminals 1 (+B) and 2 (E2G).
2. Using a voltmeter, connect the positive (+) tester probe to terminal 3 (VG), and negative (-) tester probe to terminal 2 (E2G).
3. Blow air into the MAF meter, and check that the voltage fluctuates.
Measure the resistance between terminals 4 (THA) and 5 (E2).

Standard resistance

SPECIFIED CONDITION CHART

Condition	Specified Condition
-20°C (-4°F)	12.5 to 16.9 kΩ
20°C (68°F)	2.19 to 2.67 kΩ
60°C (140°F)	0.50 to 0.68 kΩ

If the result is not as specified, replace the MAF meter.

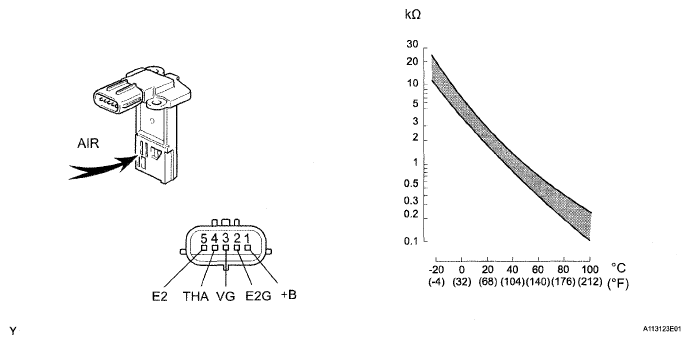

Fig 1: Inspecting Mass Air Flow Meter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
