2006 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE

Ignition System: Preparation: Brake: SST

BRAKE - SPECIAL SERVICE TOOL

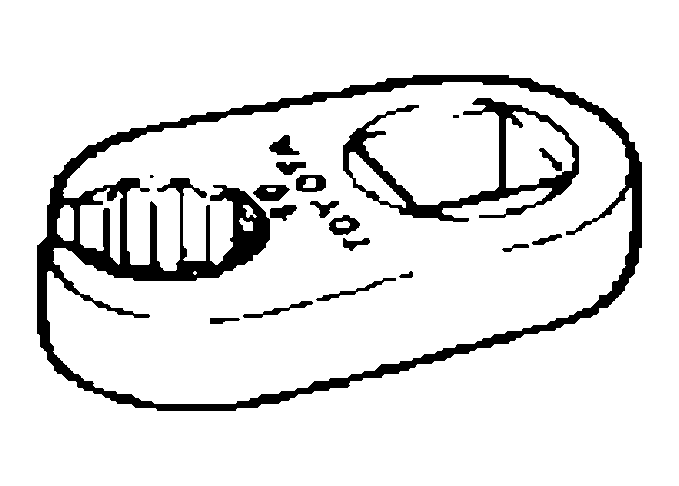

G04493316Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09023-00101 Union Nut Wrench 10 mm
G04493317Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09023-12701 Union Nut Wrench 17mm

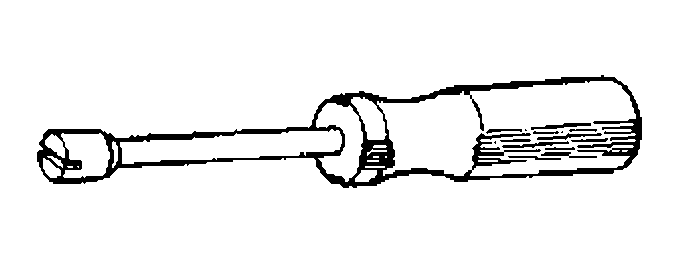

G04493318Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09718-00010 Shoe Hold Down Spring Driver

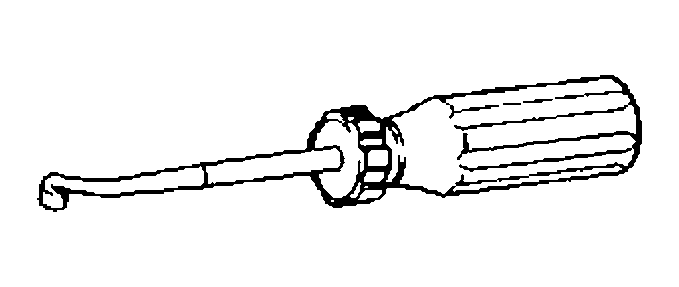

G04493319Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09921-00010 Spring Tension Tool
