2006 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE
Engine Control Systems: Preparation: Suspension: SST
SUSPENSION - SPECIAL SERVICE TOOL

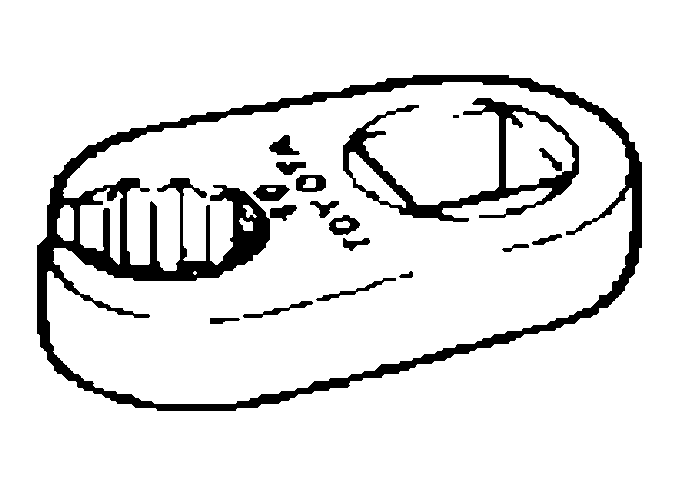

| 09023-00101 | Union Nut Wrench 10 mm | |
| 09023-12701 | Union Nut Wrench 17mm | |

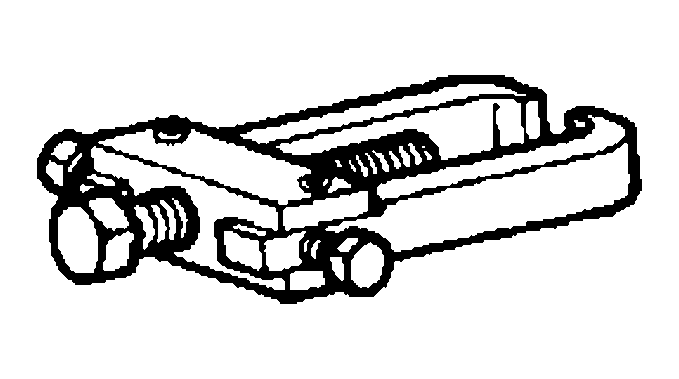

| 09628-62011 | Boll Joint Puller | |

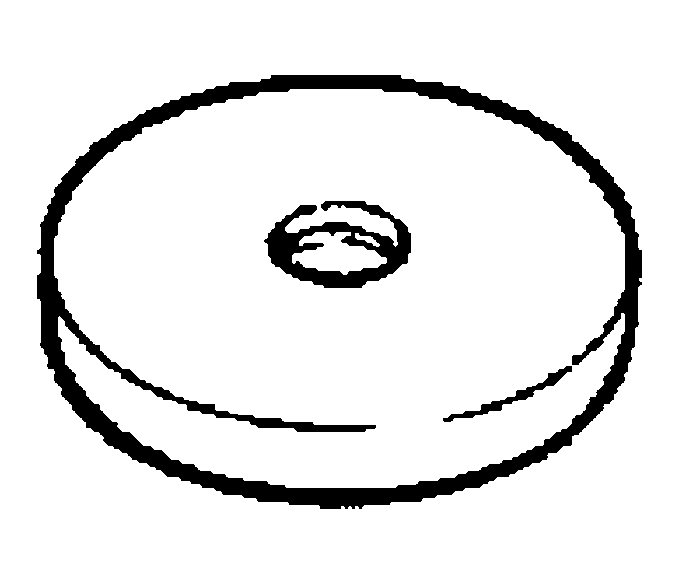

| 09710-04101 | Base | |

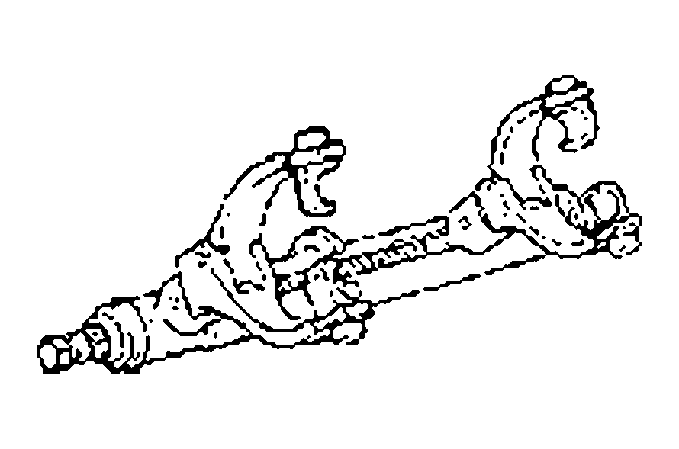

| 09727-30021 | Coil Spring Compressor | |

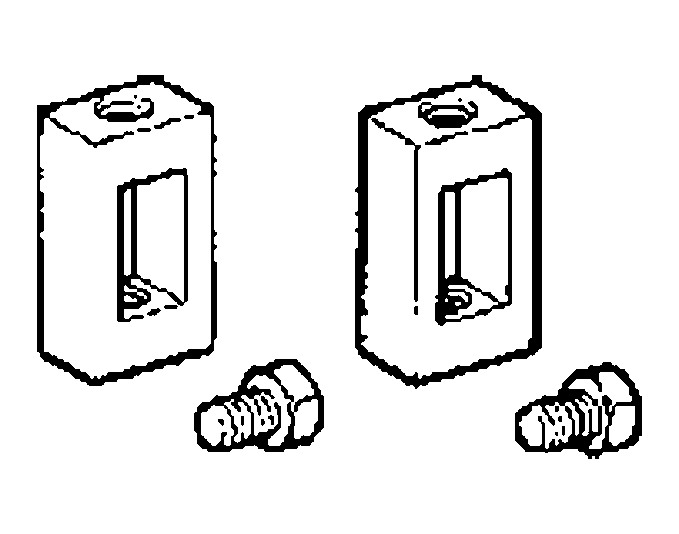

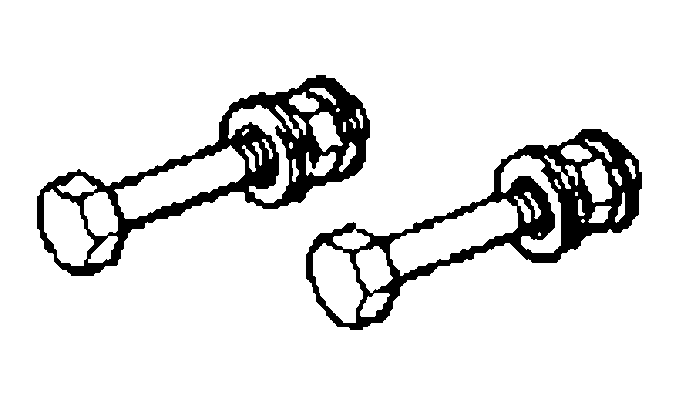

| (09727-00010) | Bolt Set | |

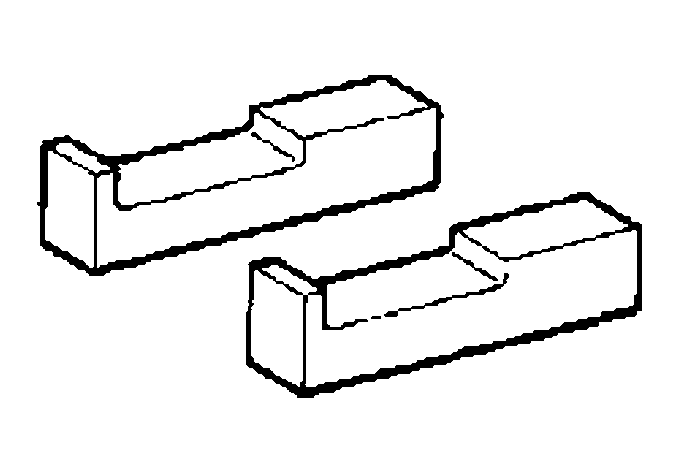

| (09727-00021) | Arm Set | |
| (09727-00031) | Compressor | |

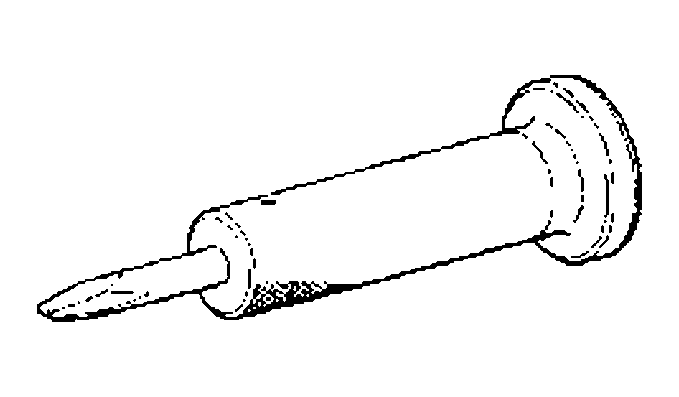

| 09930-00010 | Drive Shaft Nut Chisel | |

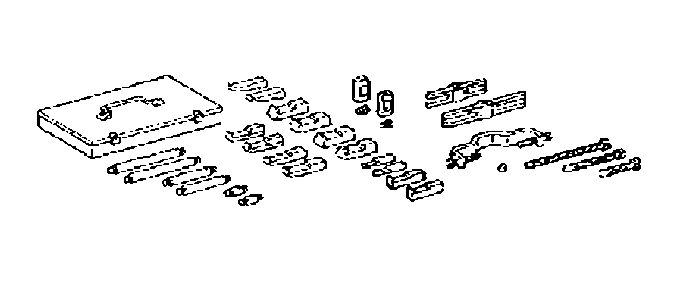

| 09950-40011 | Puller B Set | |

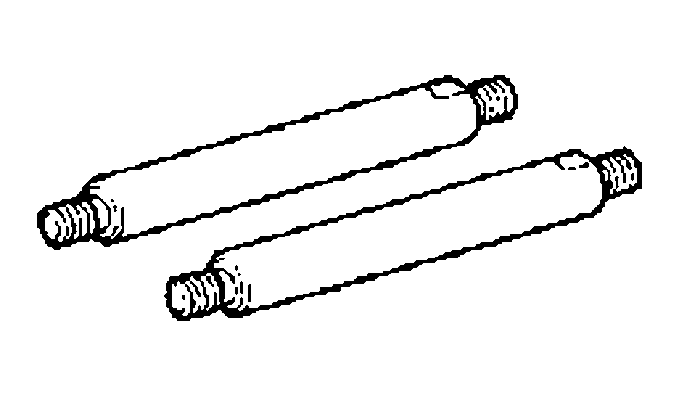

| (09951-04020) | Hanger 200 | |

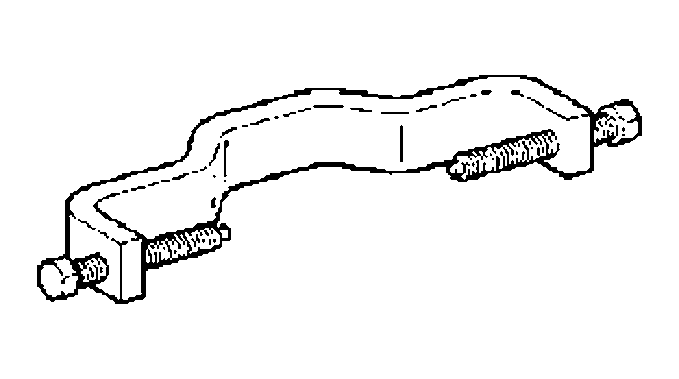

| (09952-04010) | Slide Arm | |

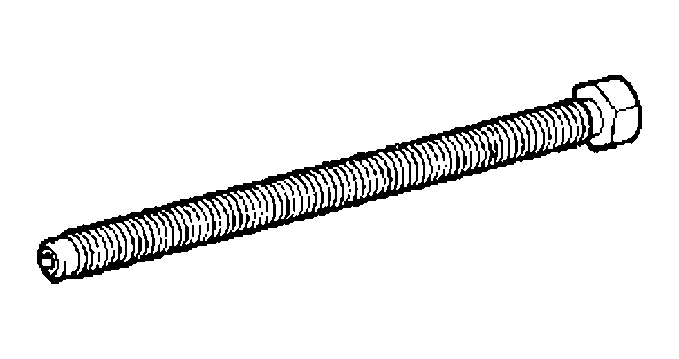

| (09953-04030) | Center Bolt 200 | |

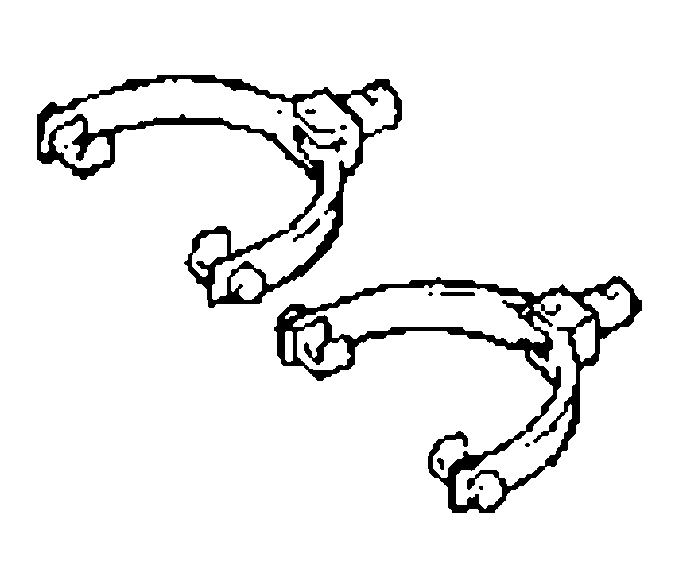

| (09954-04020) | Arm 100 | |
| (09955-04051) | Claw No.5 | |
| (09957-04010) | Attachment | |
| (09958-04011) | Holder | |

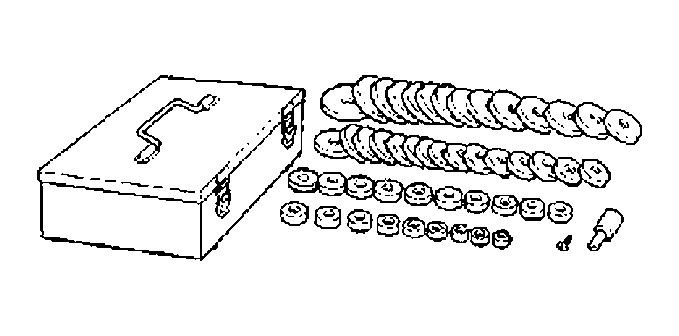

| 09950-60010 | Replacer Set | |
| (09951-00620) | Replacer 62 | |
| (09951-00630) | Replacer 63 |
