2006 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE

Drive Shaft: SST

DRIVE SHAFT - SPECIAL SERVICE TOOL

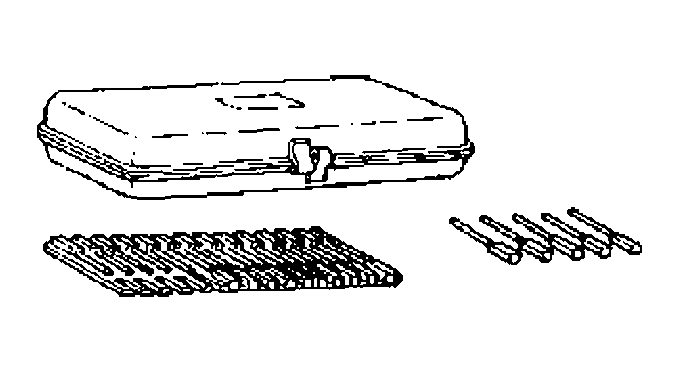

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09240-00020	Wire Gauge Set
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09520-01010	Drive Shaft Remover Attachment

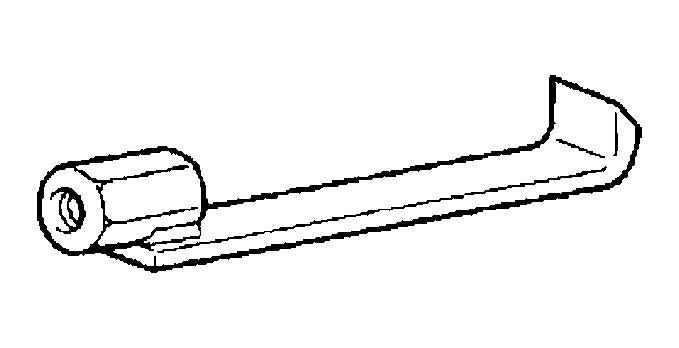

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09520-24010	Differential Side Gear Shaft Puller

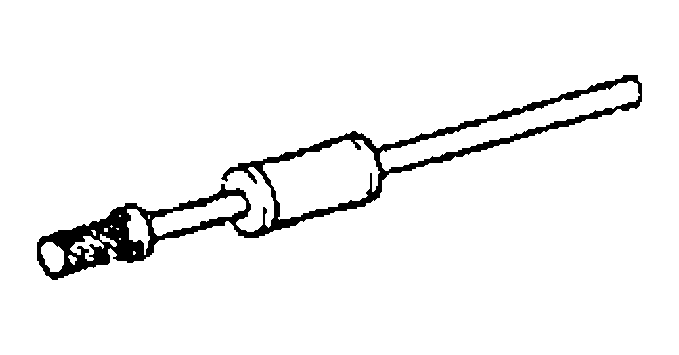

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09520-32040)	Shocker Set

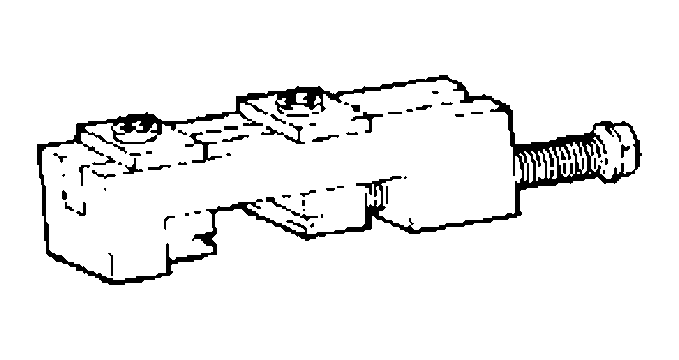

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09521-24010	Rear Axle Shaft Puller

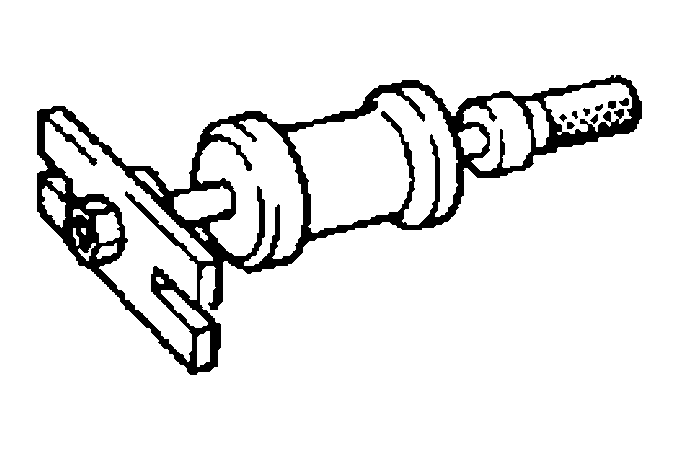

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09527-10011	Rear Axle Shaft Bearing Remover

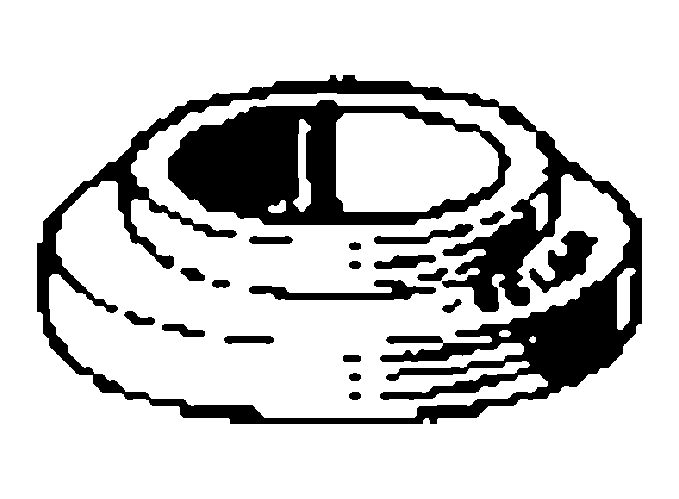

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09726-40010	Lower Control Shaft Bearing Replacer

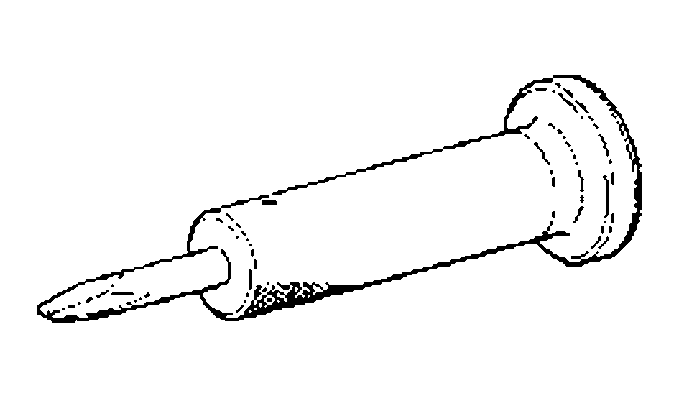

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09930-00010	Drive Shaft Nut Chisel

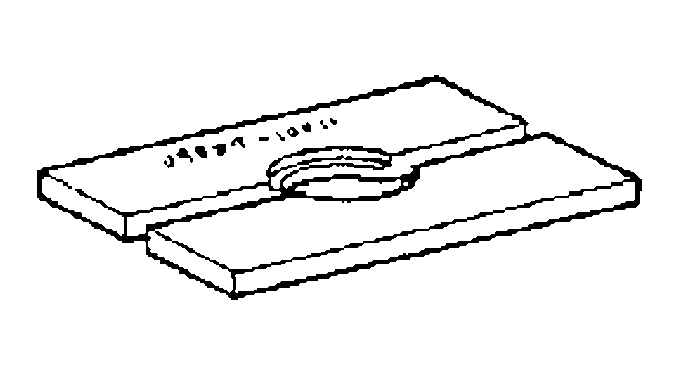

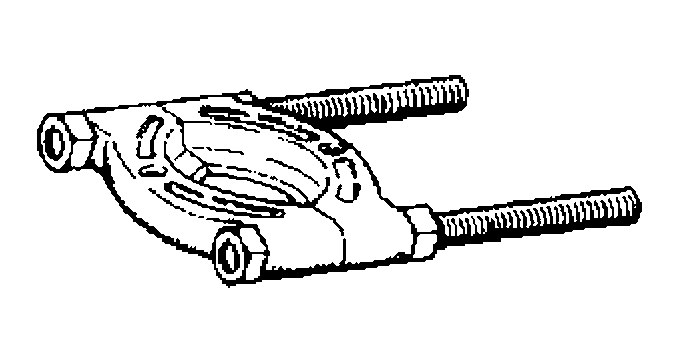

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09950-00020	Bearing Remover
