2006 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE
Recommended Tools
SPECIAL SERVICE TOOL

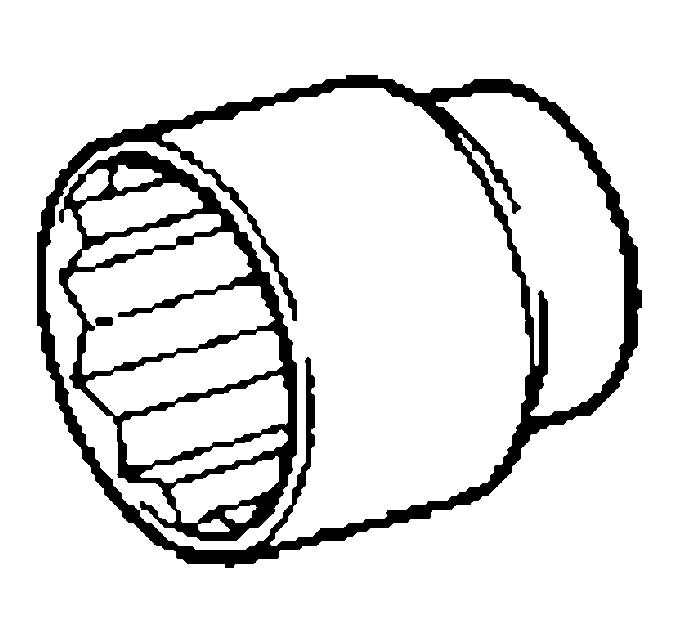

| 09011-12301 | Socket Wrench 30 mm | |

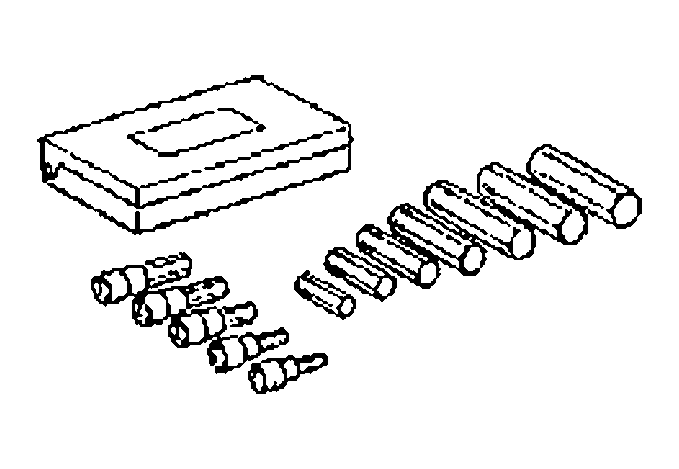

| 09040-00011 | Hexagon Wrench Set | |

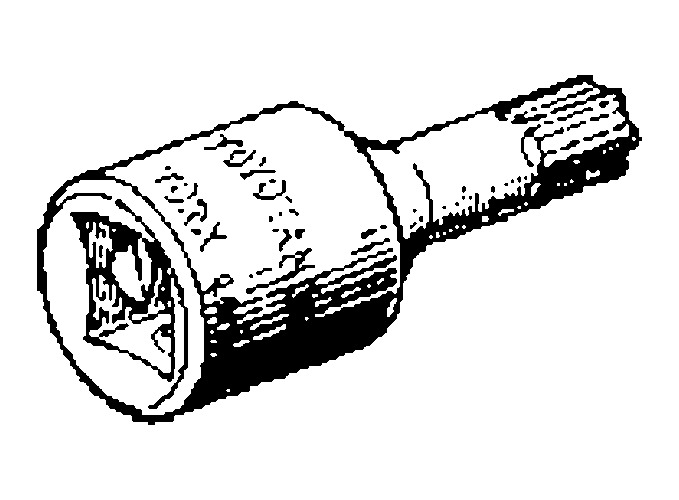

| 09042-00010 | Torx Socket T30 | |

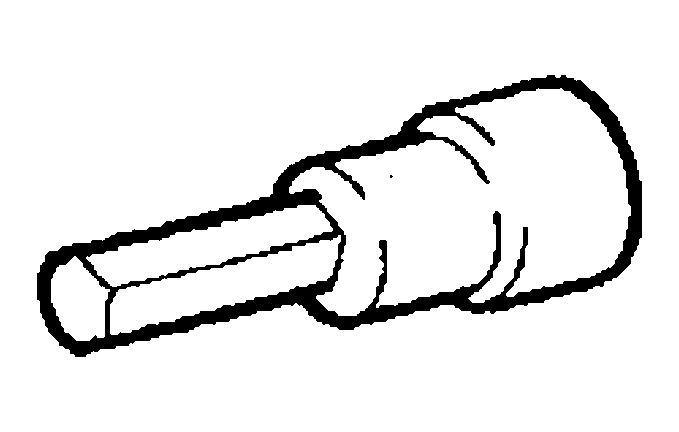

| (09043-20060) | Socket Hexagon Wrench 6 | |

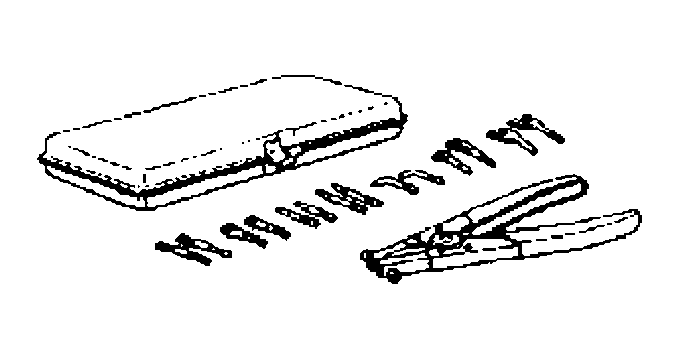

| 09904-00010 | Expander Set | |

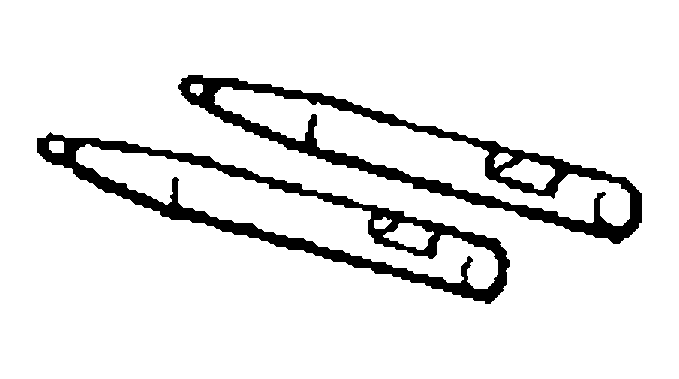

| (09904-00050) | No. 4 Claw | |

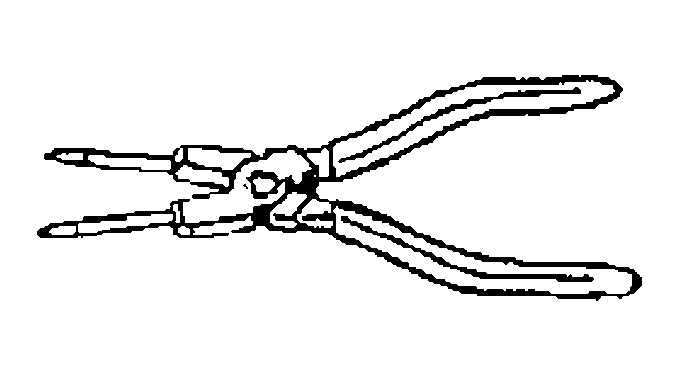

| 09905-00012 | Snap Ring No.1 Expander | |

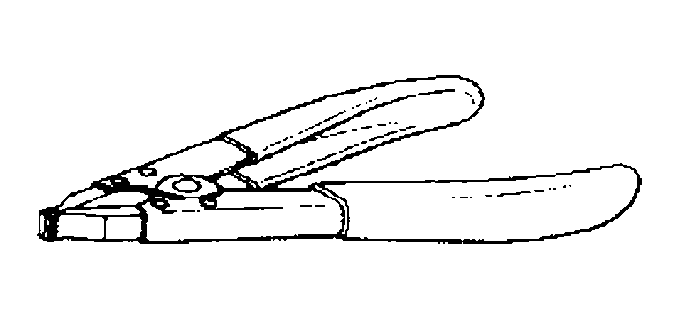

| 09905-00013 | Snap Ring Pliers |
HINT:
Torx is a registered trademark of Textron Inc.
