2006 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE
3MZ-FE Fuel: SST
3MZ-FE FUEL - SPECIAL SERVICE TOOL

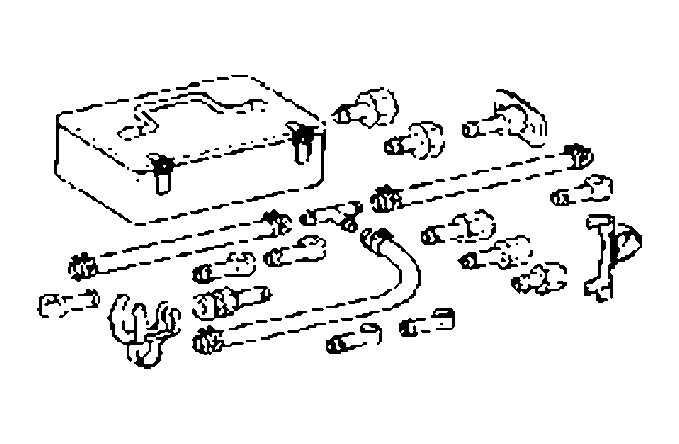

| 09268-41047 | Injection Measuring Tool Set | |

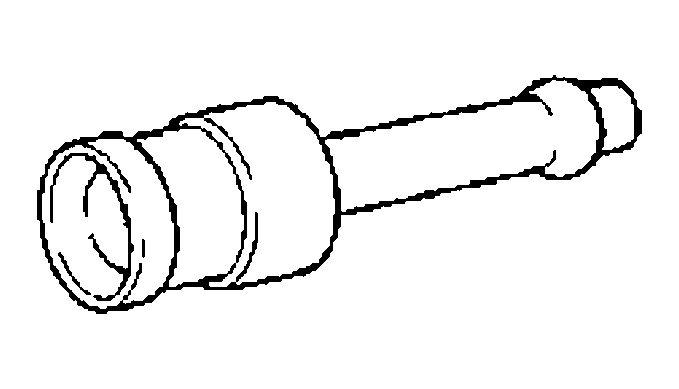

| (09268-41110) | Adaptor | |

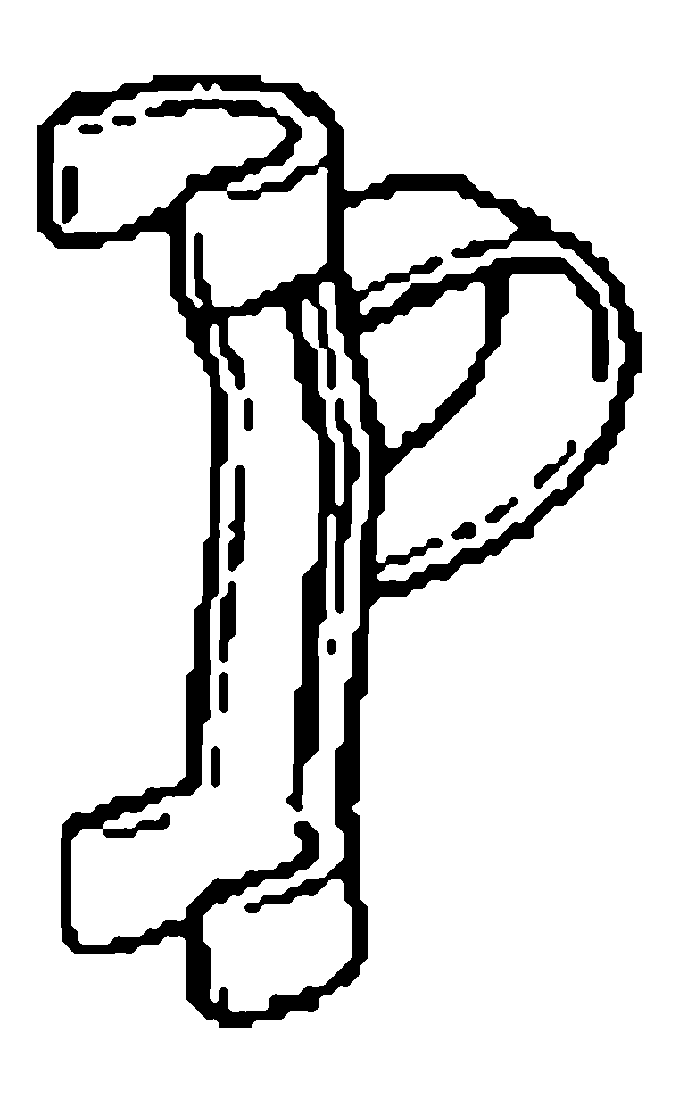

| (09268-41300) | Clamp | |
| (95336-08070) | Hose | |

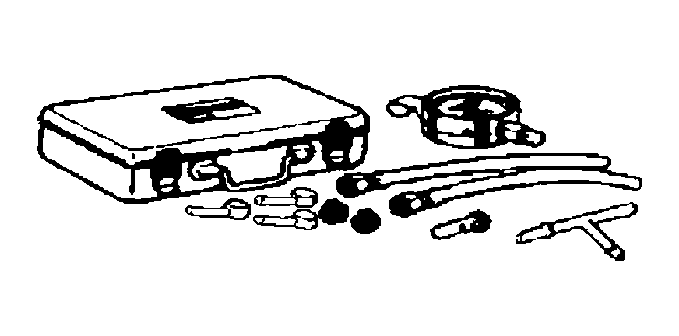

| 09268-45014 | EFI Fuel Pressure Gauge | |

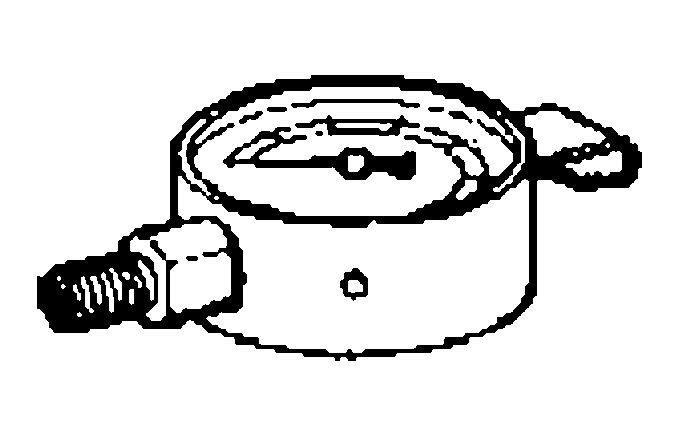

| (09268-41200) | Gauge | |
| (09268-41220) | Hose | |

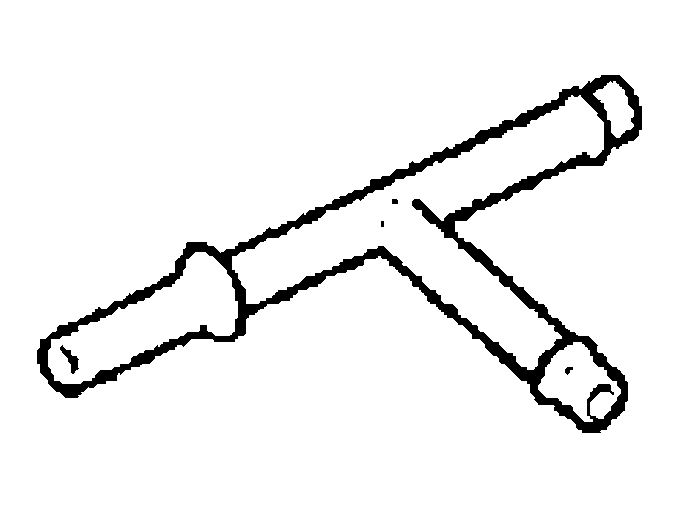

| (09268-41250) | T Joint | |

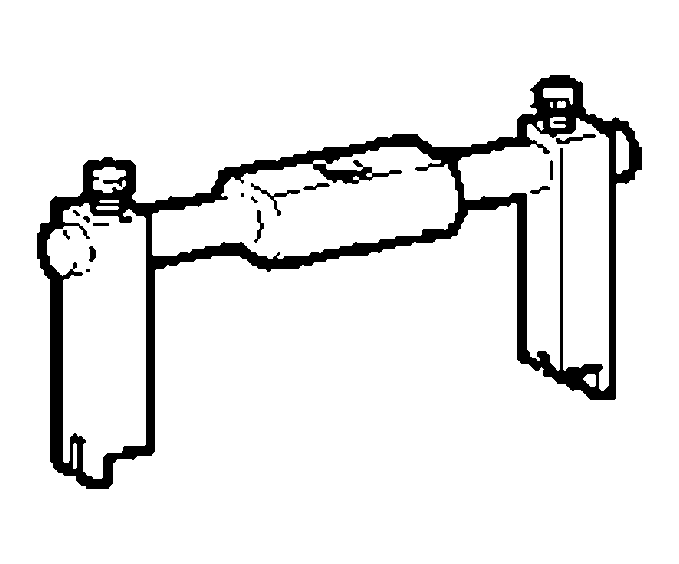

| 09808-14020 | Retainer Tool, Fuel Pump | |
| (09808-01410) | Holder | |
| (09808-01420) | Claw | |

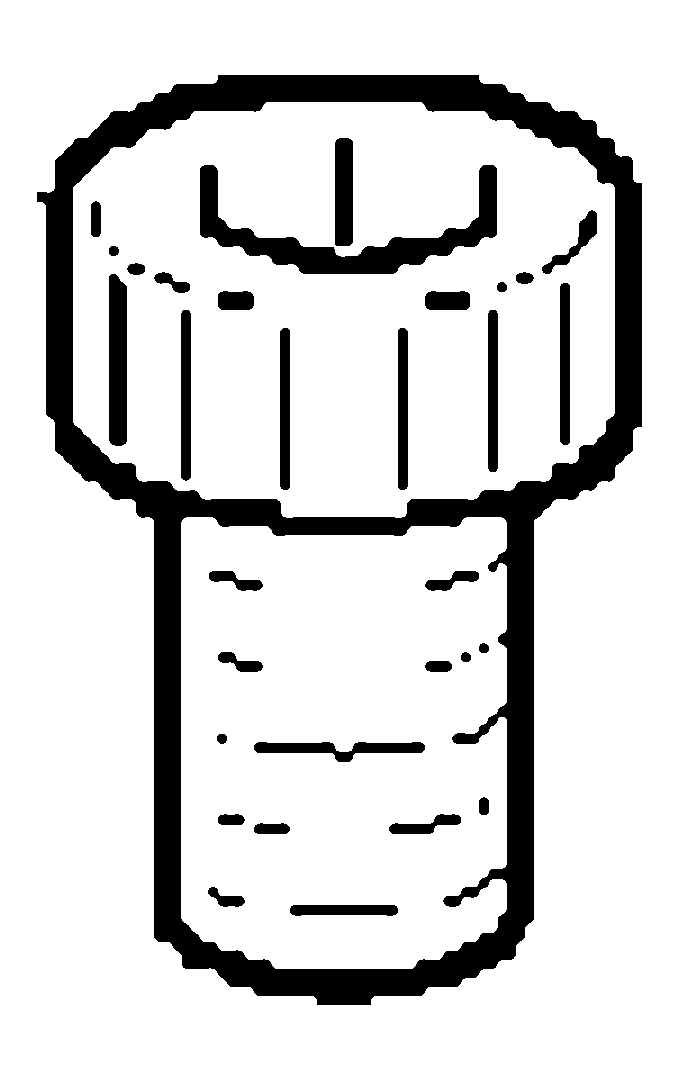

| (09808-01430) | Bolt | |

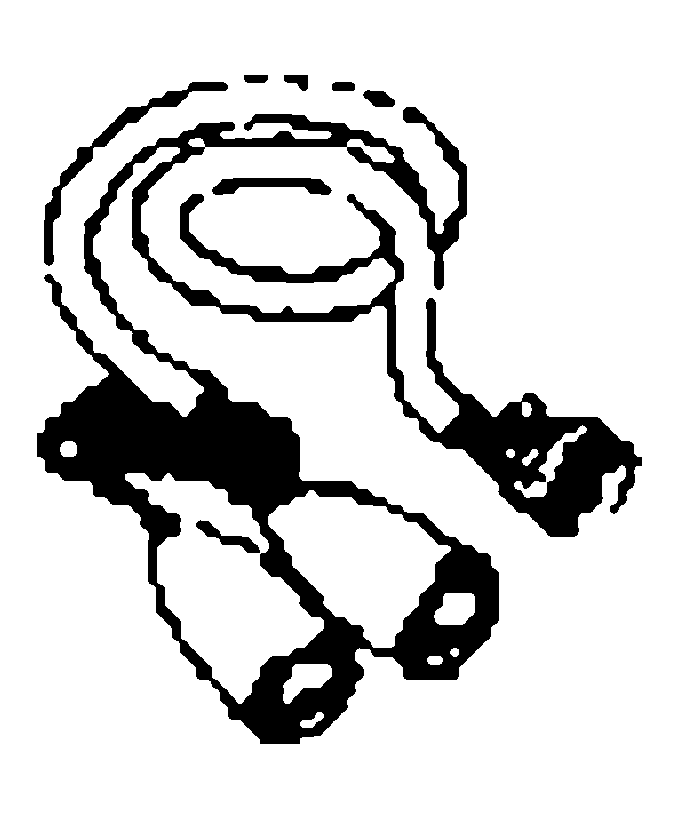

| 09842-30070 | Wire F EFI Inspection |
