2006 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE

Recommended Tools

3MZ-FE COOLING - SPECIAL SERVICE TOOL

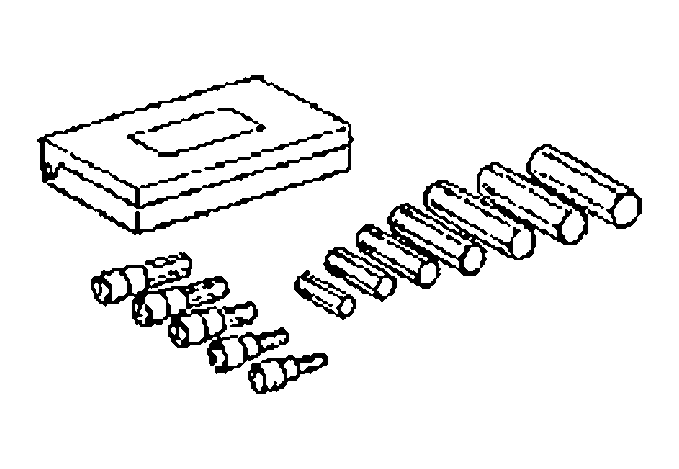

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09040-00011	Hexagon Wrench Set

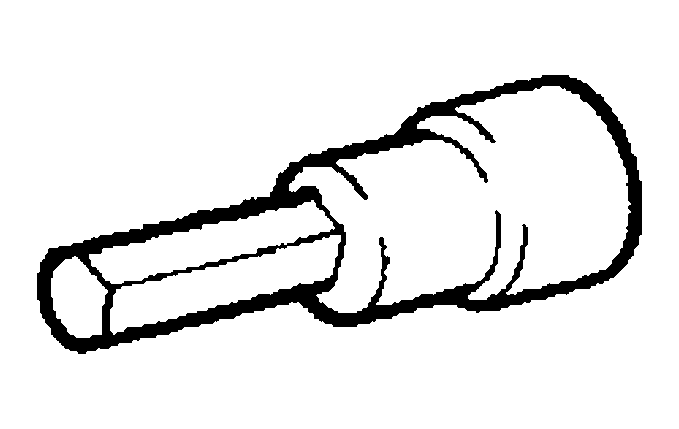

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09043-20100)	Socket Hexagon Wrench 10

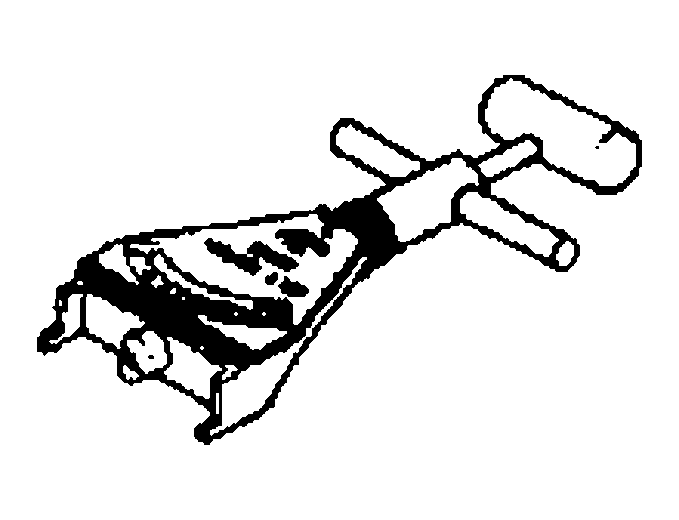

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09216-00021	Belt Tension Gauge
