2006 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE

VVT Sensor: Removal

REMOVE NO. 2 AIR CLEANER INLET (See REMOVAL )
REMOVE AIR CLEANER ASSEMBLY (See REMOVAL )
REMOVE VVT SENSOR
1. Disconnect the 2 VVT sensor connectors.
2. Remove the 2 bolts and the 2 VVT sensors.

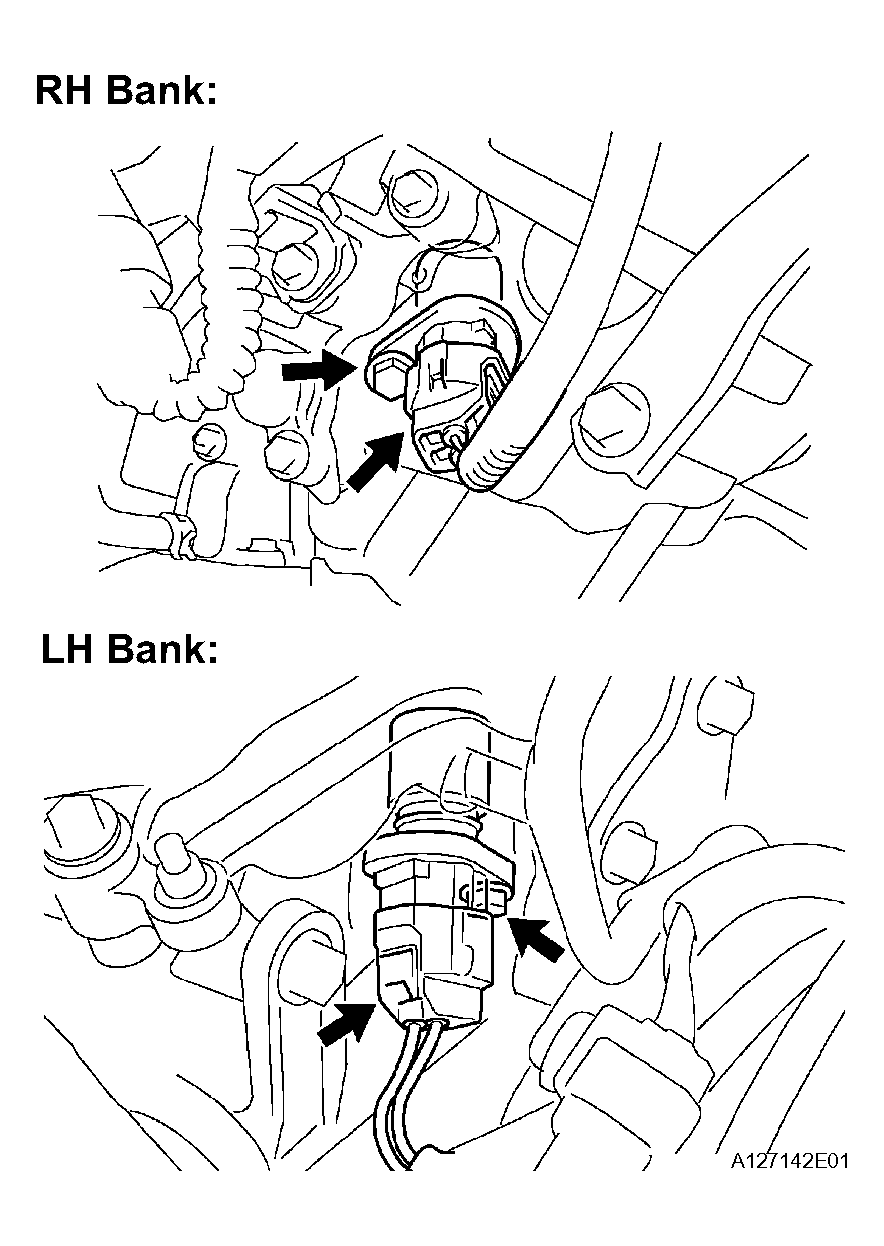

  Fig 1: Removing VVT Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
