2006 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE

Throttle Body: Inspection

INSPECT THROTTLE BODY ASSEMBLY

Resistance inspection

Using an ohmmeter, measure the resistance between the terminals.

Standard Resistance

THROTTLE BODY ASSEMBLY

Terminals	Resistance	Temperature
2 (M+) - 1 (M-)	0.3 to 100 Ω	20°C (68°F)

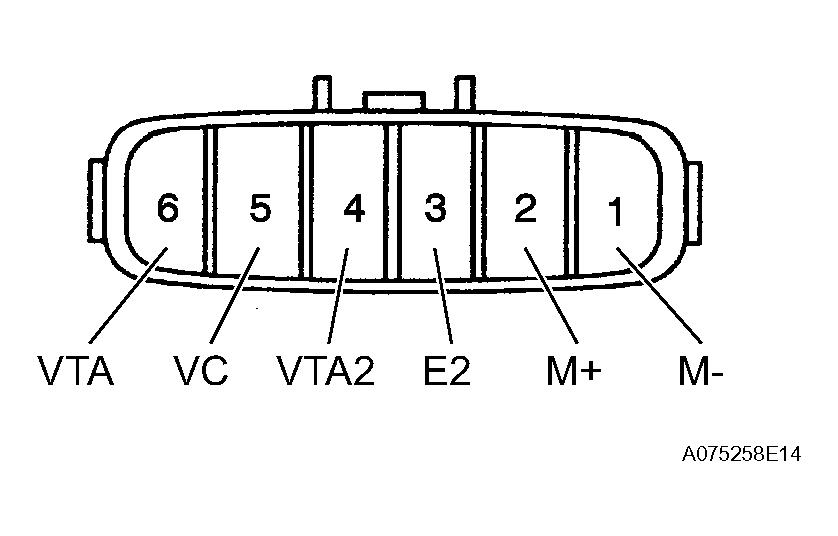

Fig 1: Inspecting Throttle Body Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
