2006 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. CHECK MIL
    1. Check that MIL (Malfunction Indicator Lamp) lights up when turning the power switch ON (IG).

      OK : MIL lights up

    OK : SYSTEM IS OK

    NG : GO TO NEXT STEP

  2. CHECK CONNECTION BETWEEN INTELLIGENT TESTER AND ECM
    1. Connect the intelligent tester to the DLC3.
    2. Turn the power switch ON (IG) and turn the intelligent tester ON.
    3. Check the connection between the intelligent tester and ECM.

      Result

      RESULT REFERENCE

      Condition Proceed to
      Communication is possible A
      Communication is not possible B

    A : GO TO MIL CIRCUIT

    B : GO TO NEXT STEP

  3. CHECK ECM (VC VOLTAGE)
    1. Turn the power switch ON (IG).
    2. Measure the voltage of the ECM connector.

      Standard voltage

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Proceed to
      E4-18 (VC) - E5-28 (E1) Voltage is not 5 V

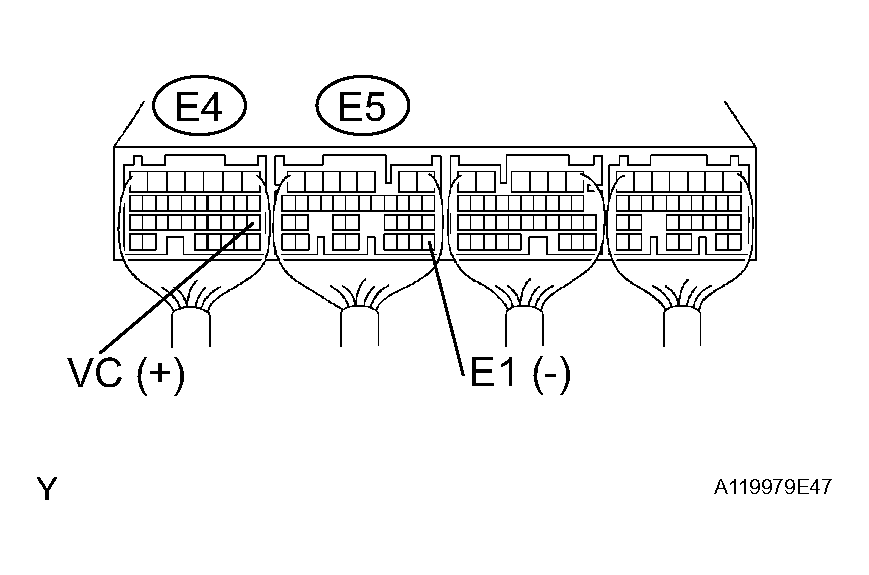

      Fig 1: Identifying ECM Connector Terminal E4 And E5
      G04472284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NEXT

  4. CHECK MIL (THROTTLE POSITION SENSOR)
    1. Disconnect the T3 throttle body connector.
    2. Turn the power switch ON (IG).
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Condition Proceed to
      MIL illuminates A
      MIL does not illuminate B

    A : REPLACE THROTTLE BODY

    B : GO TO NEXT STEP

  5. CHECK MIL (WATER VALVE)
    1. Disconnect the W5 water valve connector.
    2. Turn the power switch ON (IG).
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Condition Proceed to
      MIL illuminates A
      MIL does not illuminate B

    A : REPLACE WATER VALVE

    B : GO TO NEXT STEP

  6. CHECK MIL (CANISTER PUMP MODULE)
    1. Disconnect the V7 canister pump module connector.
    2. Turn the power switch ON (IG).
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Condition Proceed to
      MIL illuminates A
      MIL does not illuminate B

    A : REPLACE CHARCOAL CANISTER ASSEMBLY

    B : GO TO NEXT STEP

  7. CHECK MIL (VAPOR PRESSURE SENSOR)
    1. Disconnect the V6 vapor pressure sensor connector.
    2. Turn the power switch ON (IG).
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Condition Proceed to
      MIL illuminates A
      MIL does not illuminate B

    A : REPLACE VAPOR PRESSURE SENSOR

    B : GO TO NEXT STEP

  8. CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
    1. Disconnect the T3 throttle body connector.
    2. Disconnect the W5 water valve connector.
    3. Disconnect the V7 canister pump module connector.
    4. Disconnect the V6 vapor pressure sensor connector.
    5. Disconnect the E4 ECM connector.
    6. Measure the resistance of the wire harness side connector.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      E4-18 (VC) - Body ground 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

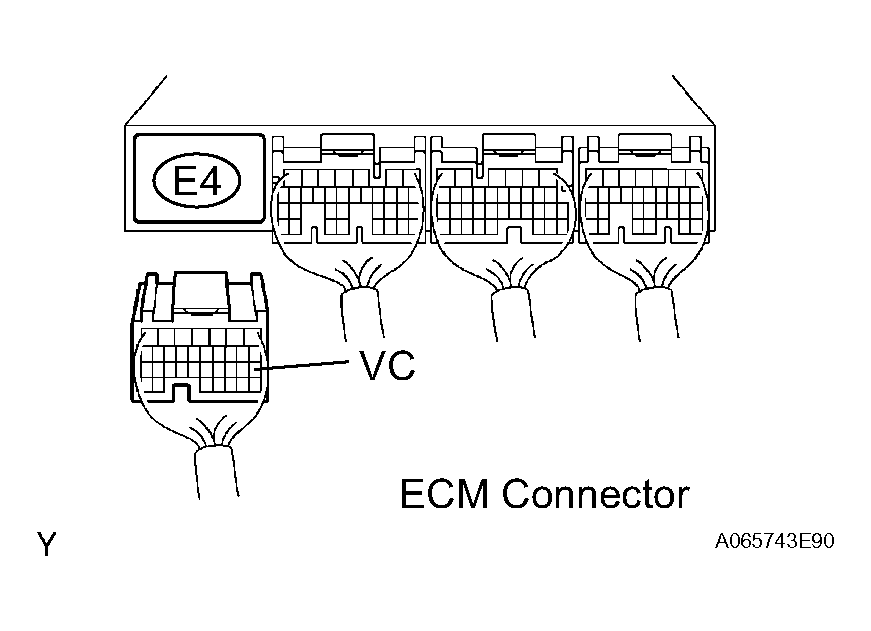

    Fig 2: Identifying E4 ECM Connector Terminal
    G04472285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE ECM
