2006 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE RADIATOR SUPPORT OPENING COVER (See  REMOVAL   )
  3. REMOVE ENGINE UNDER COVER LH
  4. DRAIN ENGINE COOLANT (See  COOLANT  )
  5. REMOVE AIR CLEANER ASSEMBLY (See  REMOVAL   )
  6. REMOVE OIL DIPSTICK GUIDE
    1. Remove the dipstick.
    2. Disconnect the wire harness clamp.
    3. Remove the bolt and dipstick guide.

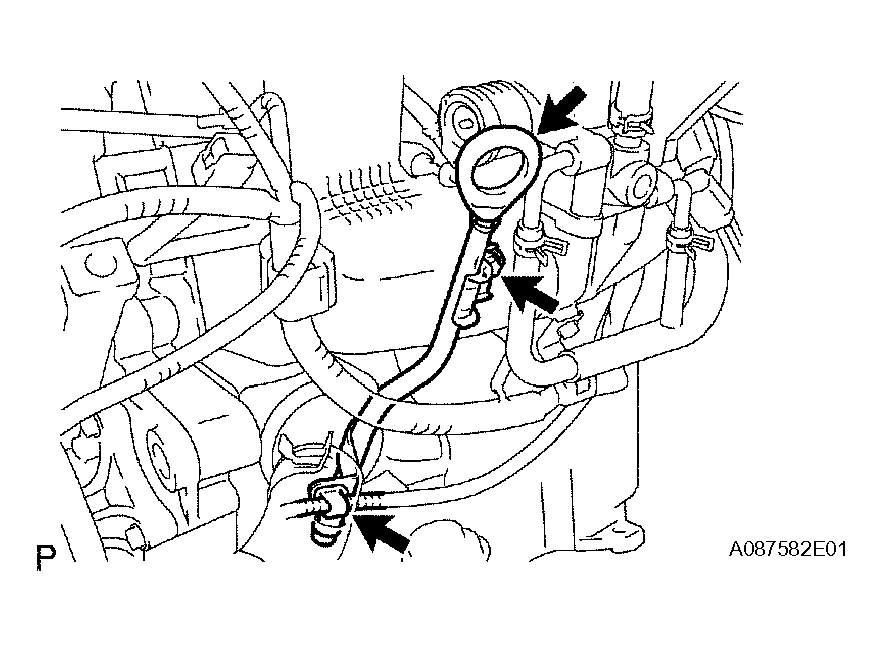

      Fig 1: Removing Bolt And Dipstick Guide
      G04472333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE INTAKE MANIFOLD SUB-ASSEMBLY
    1. Disconnect the ventilation hose from the throttle with motor body.
    2. Disconnect the No. 2 ventilation hose.
    3. Disconnect the No. 1 fuel vapor feed hose.

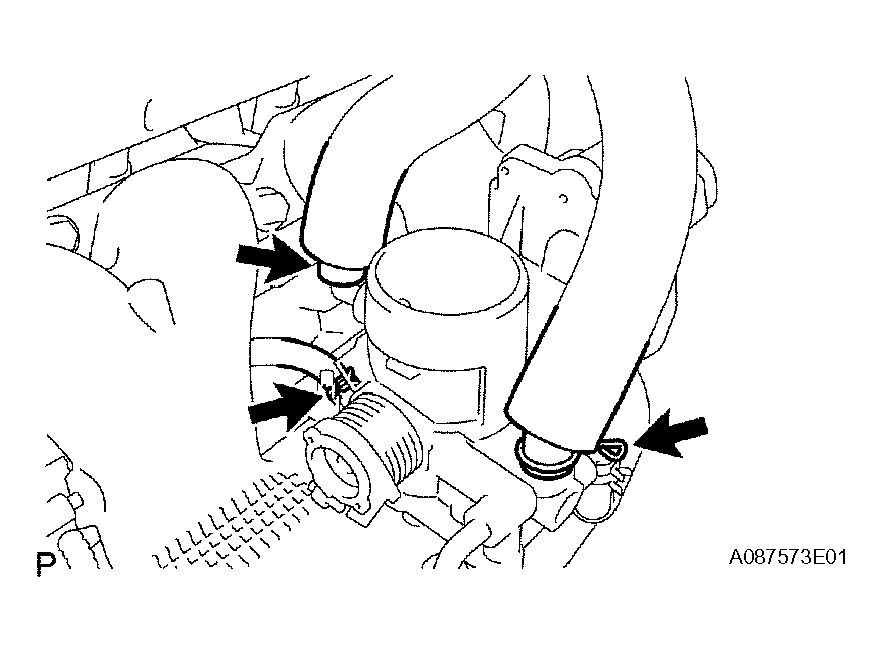

      Fig 2: Disconnecting No. 1 Fuel Vapor Feed Hose
      G04472334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the water by-pass hose.
    5. Disconnect the No. 2 water by-pass hose.

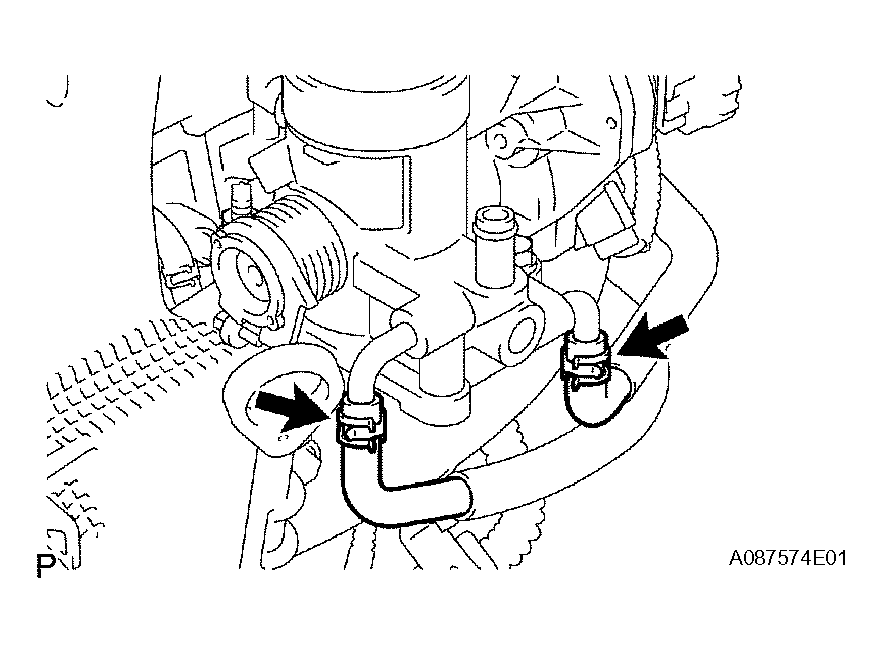

      Fig 3: Disconnecting Water By-Pass Hose
      G04472335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the throttle control motor connector.
    7. Disconnect the throttle position sensor connector.

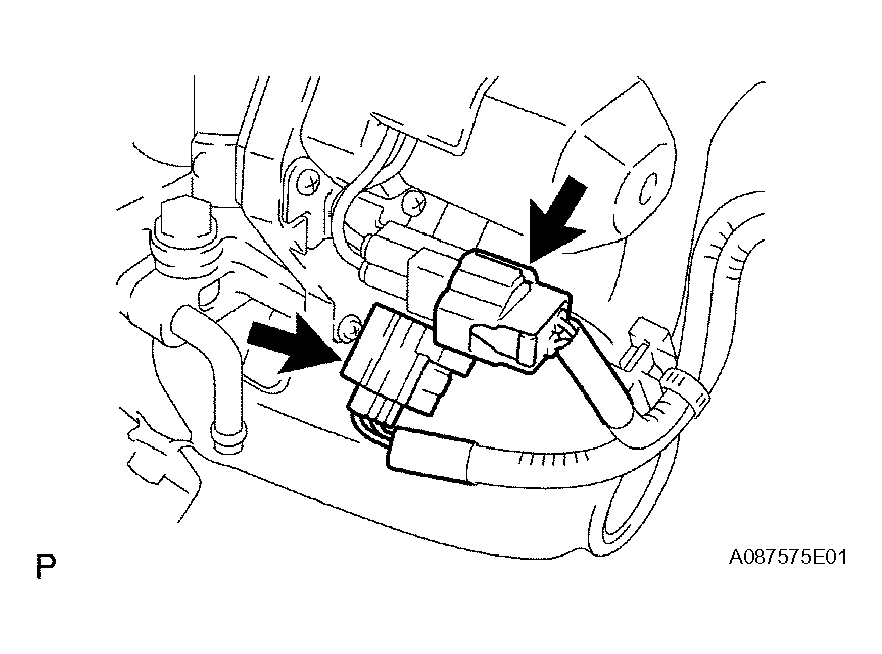

      Fig 4: Disconnecting Throttle Position Sensor Connector
      G04472336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Disconnect the 3 wire harness clamps.
    9. Disconnect the connector clamp.
    10. Remove the bolt and harness clamp bracket.

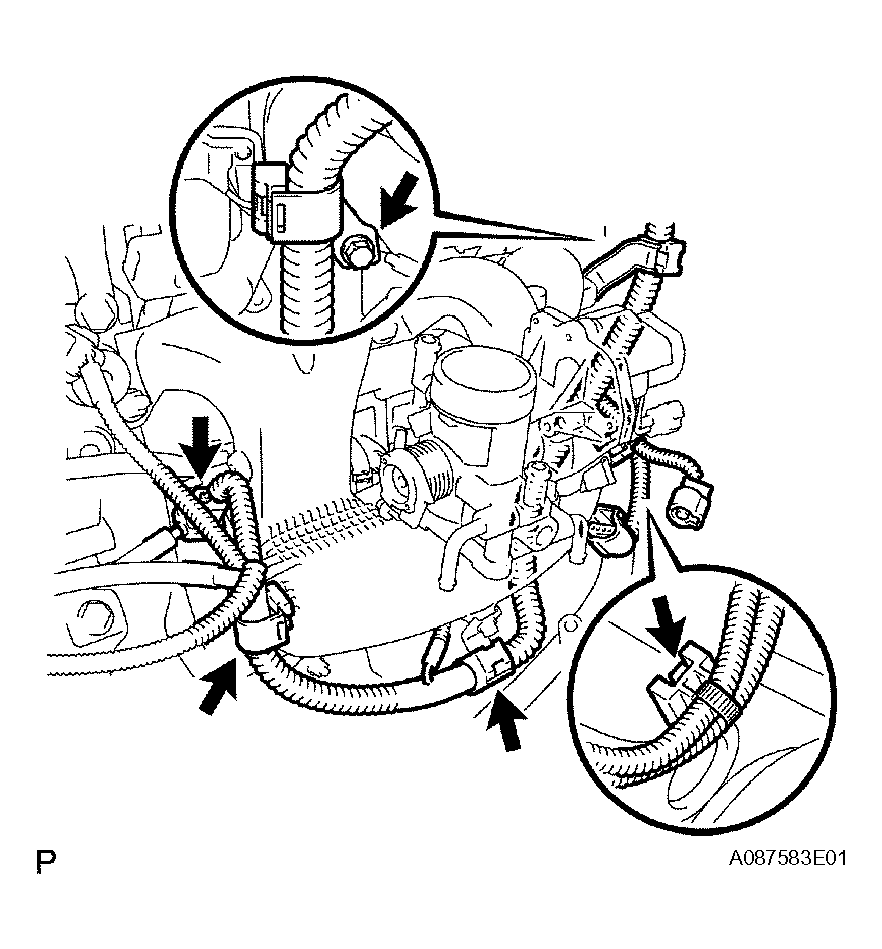

      Fig 5: Disconnecting Connector Clamp
      G04472337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Remove the No. 1 fuel vapor feed hose from the hose clamp.
    12. Remove the 3 bolts, 2 nuts and intake manifold.

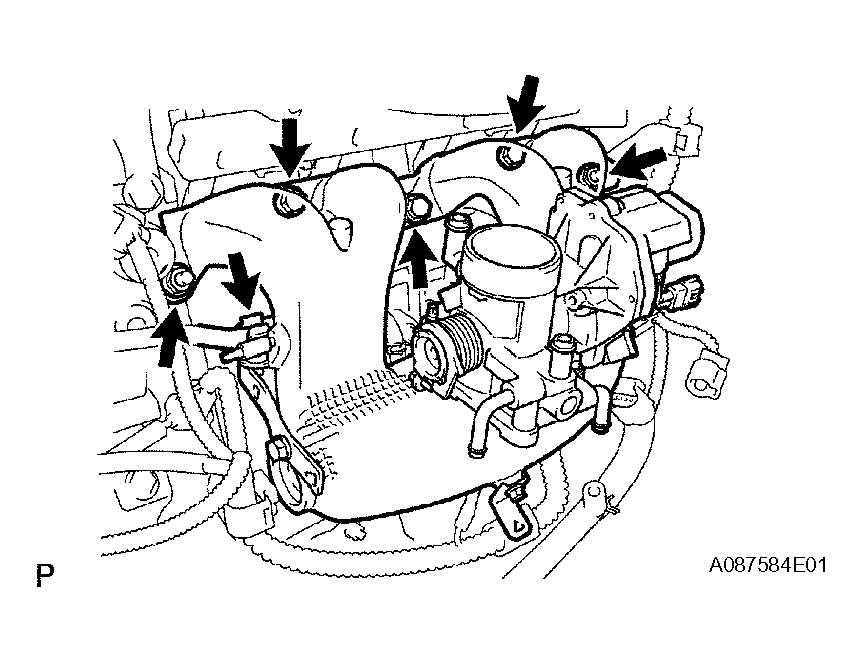

      Fig 6: Removing Fuel Vapor Feed Hose From The Hose Clamp
      G04472338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Remove the gasket from the cylinder head.

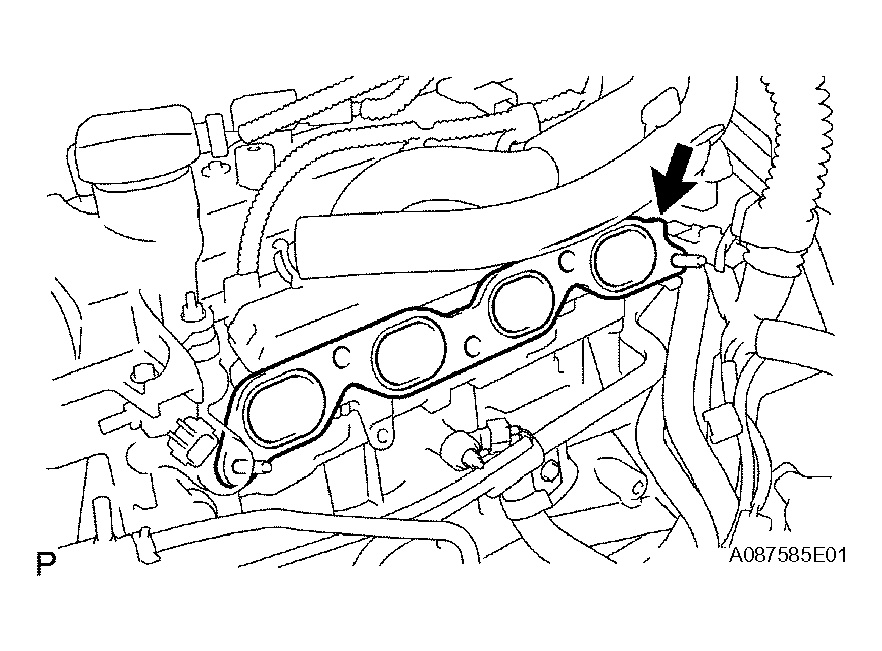

      Fig 7: Removing Gasket From Cylinder Head
      G04472339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE KNOCK SENSOR
    1. Disconnect the knock sensor connector.
    2. Remove the nut and sensor.

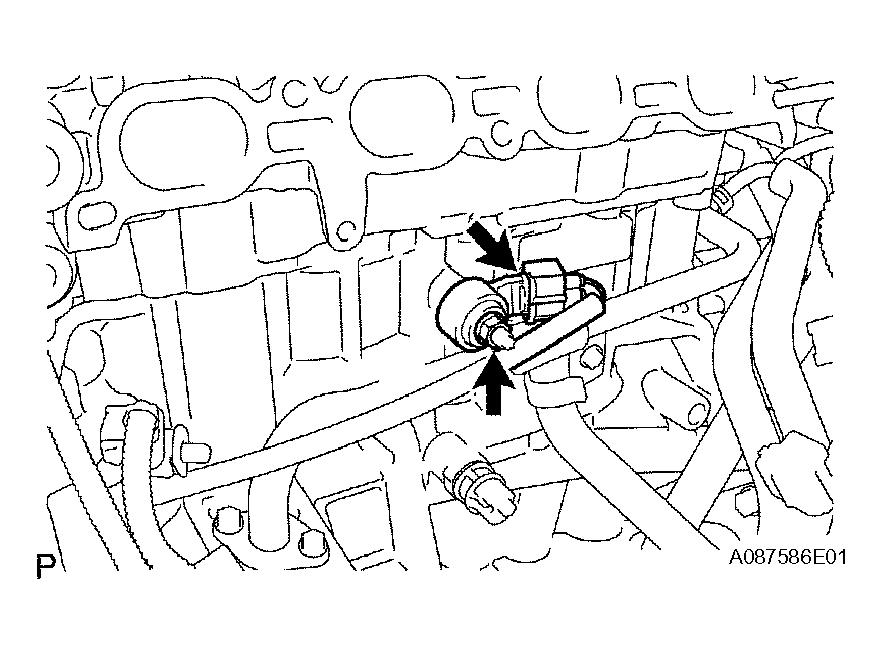

      Fig 8: Removing Knock Sensor Connector
      G04472340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
