2006 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Crankshaft Position Sensor: Inspection

INSPECT CRANKSHAFT POSITION SENSOR

Measure the resistance of the sensor.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
1 - 2	Cold	985 to 1,600 Ω
1 - 2	Hot	1,265 to 1,890 Ω

NOTE: The terms "Cold" and "Hot" refer to the temperature of the sensor. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).

If the result is not as specified, replace the crankshaft position sensor.

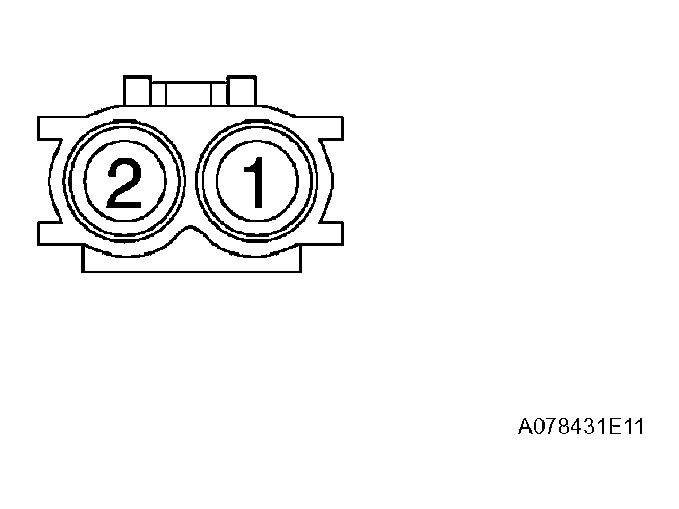

Fig 1: Identifying Crankshaft Position Connector Pinout

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
