2006 Toyota PriusFACTORY OEM SERVICE PROCEDURE
Steering Angle Sensor: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE NO. 2 STEERING WHEEL COVER LOWER
- REMOVE NO. 3 STEERING WHEEL COVER LOWER
- REMOVE STEERING PAD ASSEMBLY (See REMOVAL )
- REMOVE STEERING WHEEL ASSEMBLY (See REMOVAL )
- REMOVE TILT LEVER BRACKET (See REMOVAL )
- REMOVE STEERING COLUMN COVER (See REMOVAL )
- REMOVE SPIRAL CABLE SUB-ASSEMBLY (See REMOVAL )
- REMOVE STEERING ANGLE SENSOR

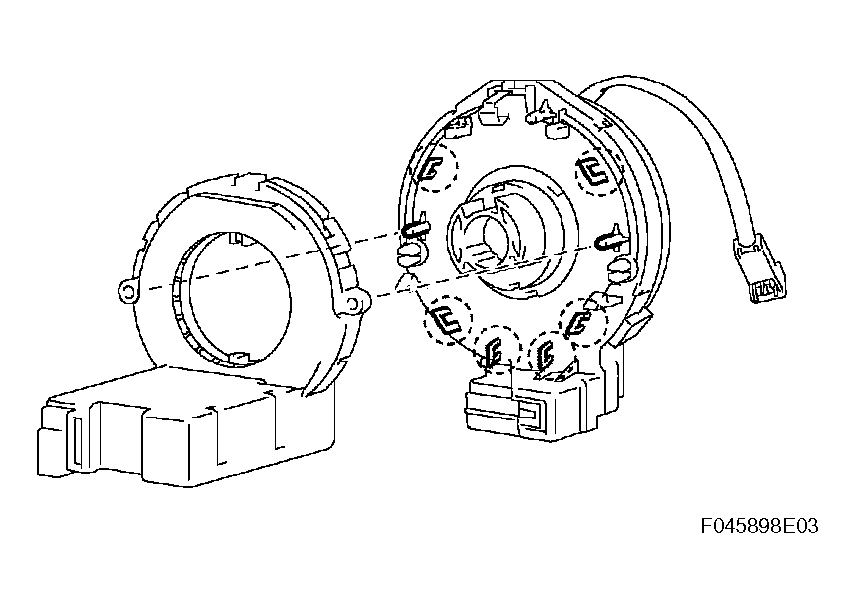

- Detach the 6 claws and remove the sensor from the spiral cable.
