2006 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Steering Angle Sensor: Installation

  1. INSTALL STEERING ANGLE SENSOR
    1. Align the locating pins, attach the 6 claws and install the sensor to the spiral cable.
  2. INSPECT SPIRAL CABLE SUB-ASSEMBLY (See  INSPECTION  )
  3. INSTALL SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  4. INSTALL STEERING COLUMN COVER (See  INSTALLATION  )

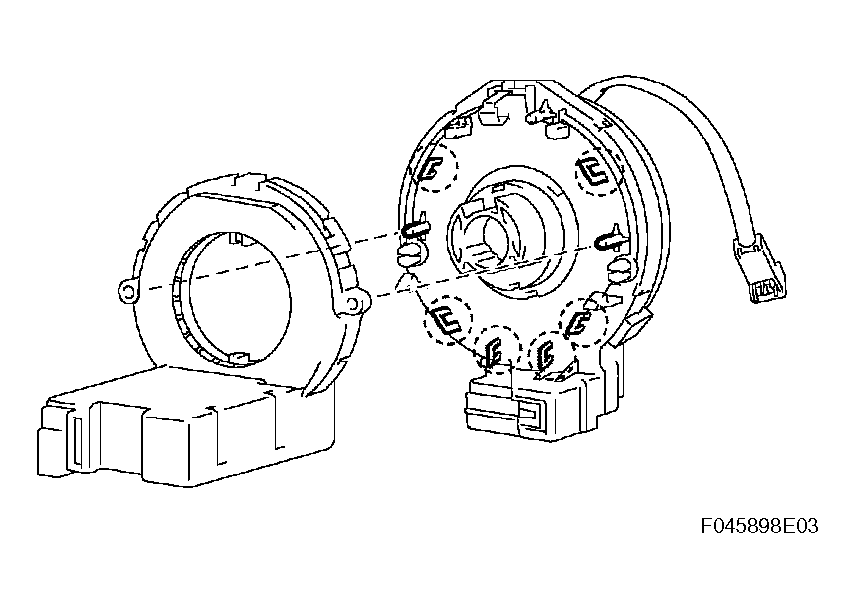

    Fig 1: Attaching Claws And Installing Sensor To Spiral Cable
    G04474751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. POSITION SPIRAL CABLE (See  INSTALLATION  )
  6. INSTALL TILT LEVER BRACKET (See  INSTALLATION  )
  7. INSPECT STEERING WHEEL CENTER POINT (See  INSTALLATION  )
  8. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  9. INSTALL STEERING PAD ASSEMBLY (See  INSTALLATION  )
  10. INSPECT STEERING PAD ASSEMBLY
    1. Inspect the steering pad (see INSTALLATION ).
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  13. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
