Front Speed Sensor: Removal
- REMOVE FRONT WHEEL
- REMOVE FRONT FENDER LINER
- REMOVE FRONT SPEED SENSOR
- Disconnect the sensor connector.

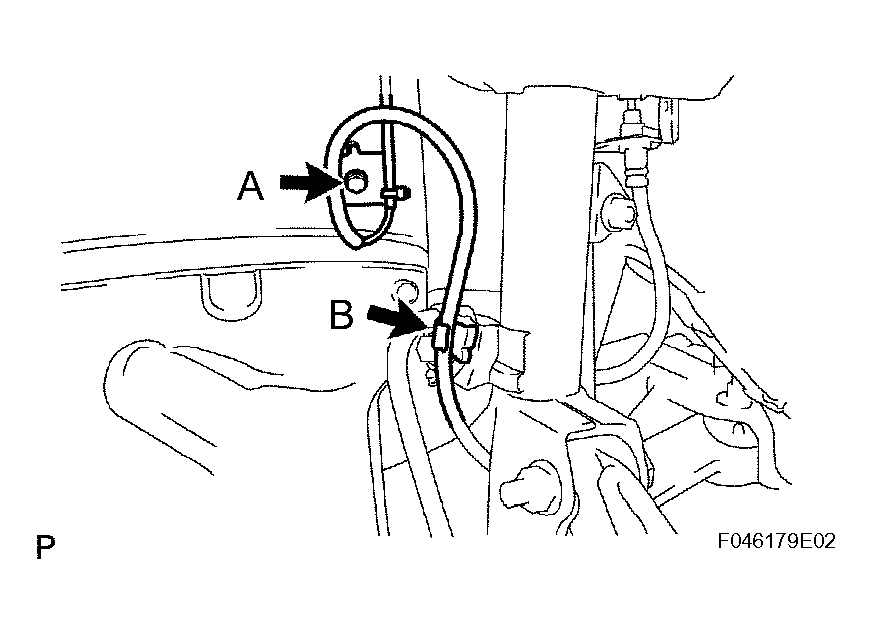

- Remove the 2 bolts (A and B) and 2 sensor clamps from the body and front shock absorber.
HINT:
The bolt B is tightened together with the brake flexible hose clamp.
- Remove the clip from the front shock absorber.
- Remove the bolt and sensor.NOTE: Do not allow foreign matter to attach to the tip or connecting portion of the speed sensor.
