Front Speed Sensor: Installation
- INSTALL FRONT SPEED SENSOR NOTE:
- Do not twist the sensor wire harness during installation.
- Check that there is no foreign matter attached to the tip and connecting portion of the speed sensor.
- Clean the connecting portion of the sensor.

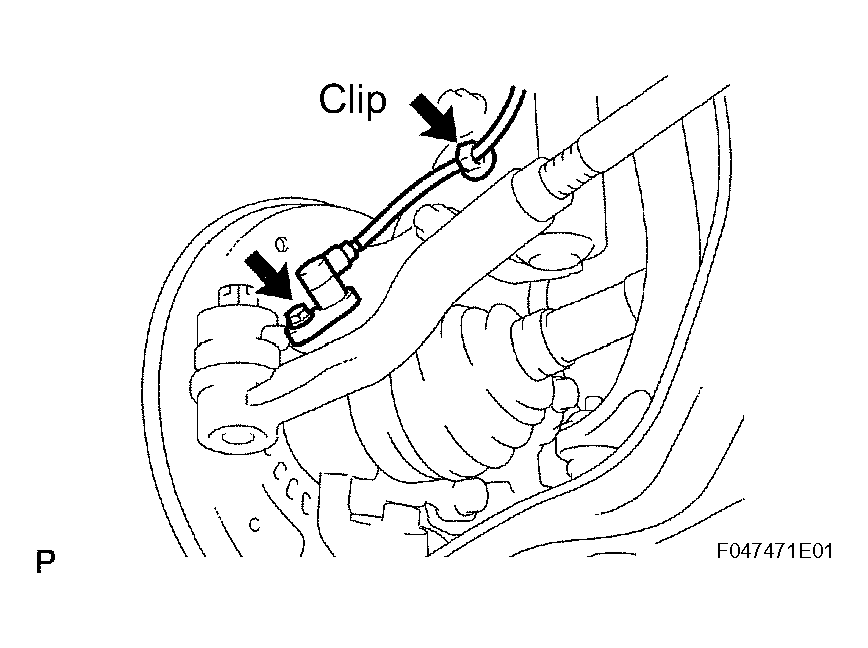

- Install the sensor with the bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Install the clip to the front shock absorber.
- Install the sensor clamps to the body and front shock absorber with the bolts A and B.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf) for bolt A
19 N*m (192 kgf*cm, 14 ft.*lbf) for bolt B
NOTE: Tighten the bolt B together with the brake flexible hose clamp and sensor clamp. The brake flexible hose clamp should be placed above.
