2006 Toyota PriusFACTORY OEM SERVICE PROCEDURE
Brake Control Power Supply: Removal
- REMOVE REAR SEAT CUSHION ASSEMBLY (See REMOVAL )
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
- Remove the deck trim side panel RH (see
REMOVAL
).
HINT:
Refer to the procedures from the removal of the rear door scuff plate RH up until the removal of the deck trim side panel assembly RH.
- Remove the deck trim side panel RH (see
REMOVAL
).

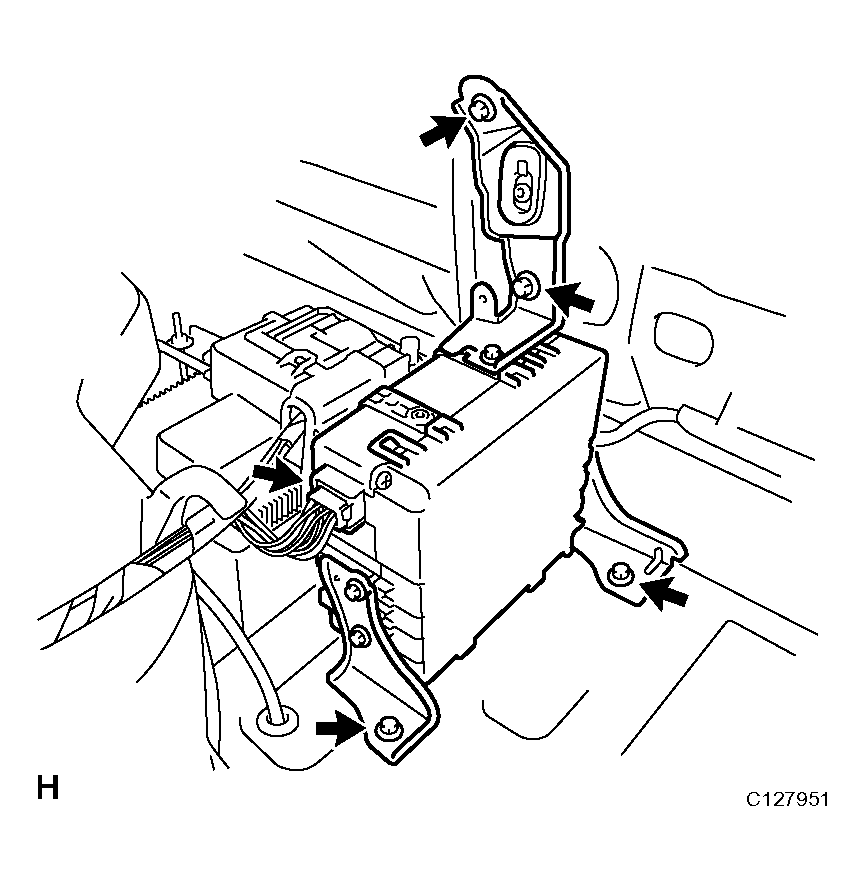

- REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY
- Disconnect the connector.
- Remove the 4 bolts and brake control power supply.
- REMOVE NO. 3 BRAKE CONTROL POWER SUPPLY BRACKET
- REMOVE NO. 2 BRAKE CONTROL POWER SUPPLY BRACKET
- REMOVE NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET
