Brake Control Power Supply: Installation
- INSTALL NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET
- INSTALL NO. 2 BRAKE CONTROL POWER SUPPLY BRACKET
- INSTALL NO. 3 BRAKE CONTROL POWER SUPPLY BRACKET
- INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY

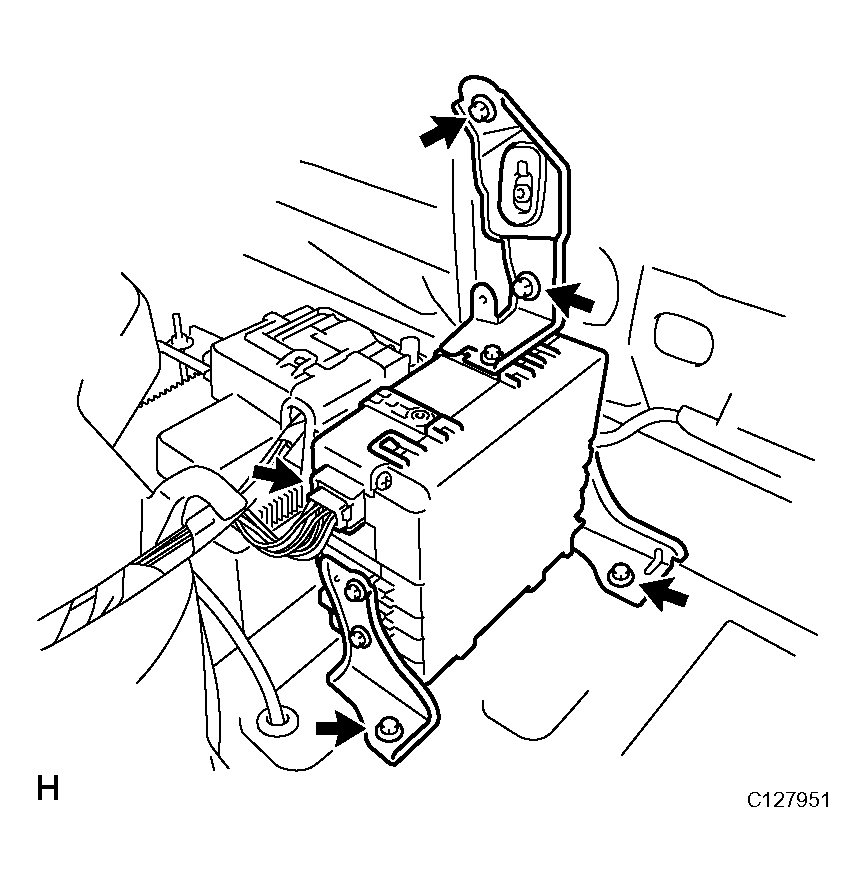

- Install the brake control power supply with the 4 bolts.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
- Connect the brake control power supply connector.
- Install the brake control power supply with the 4 bolts.
- INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
- Install the deck trim side panel RH (see
INSTALLATION
).
HINT:
Refer to the procedures from the installation of the deck trim side panel assembly RH up until the installation of the rear door scuff plate RH.
- Install the deck trim side panel RH (see
INSTALLATION
).
- INSTALL REAR SEAT CUSHION ASSEMBLY (see REASSEMBLY )
- CHECK AND CLEAR DTC
- Check and clear the DTC (see DTC CHECK / CLEAR ).
