Throttle Body: Reassembly
- INSTALL THROTTLE BODY IDLE AIR CONTROL VALVE ASSEMBLY
- Install a new gasket onto the throttle body.

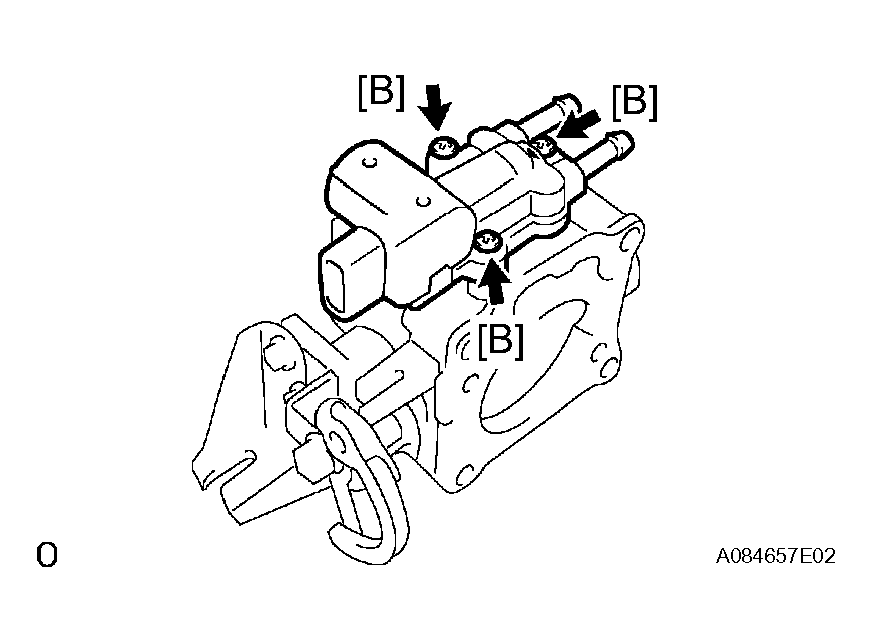

- Install the throttle body idle air control valve assembly with the 3 screws [B].
Torque: 3.7 N*m (38 kgf*cm, 33 in.*lbf)
- INSTALL E.F.I. THROTTLE POSITION SENSOR
- Make sure that the throttle valve is fully closed.

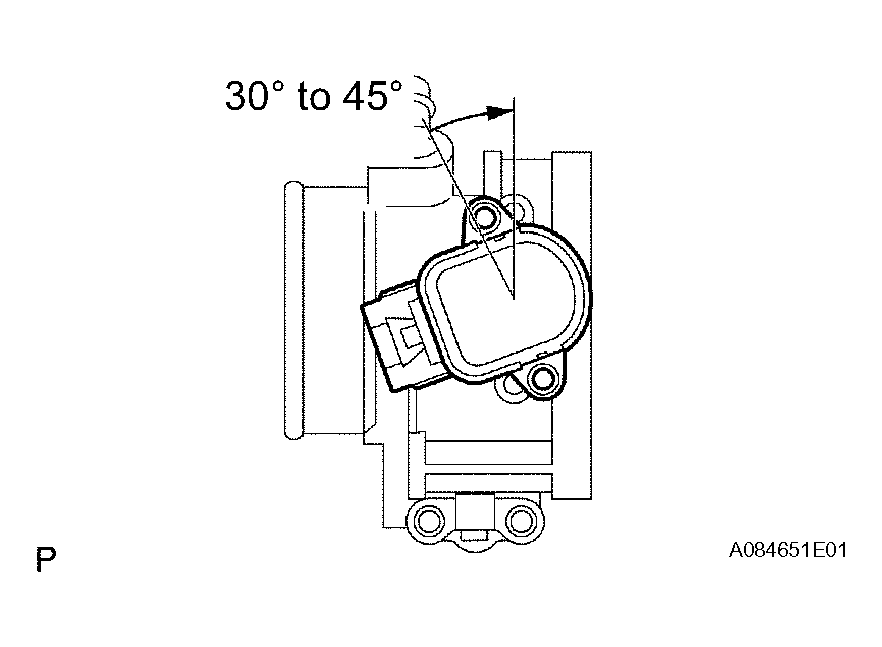

- With the throttle position sensor rotated 30° to 45° counterclockwise about the fully-closed position of the throttle valve, install the throttle position sensor onto the throttle body.
- Rotate the throttle position sensor clockwise, then secure it with the 2 screws.
Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
