Engine Coolant Temperature Sensor: Inspection

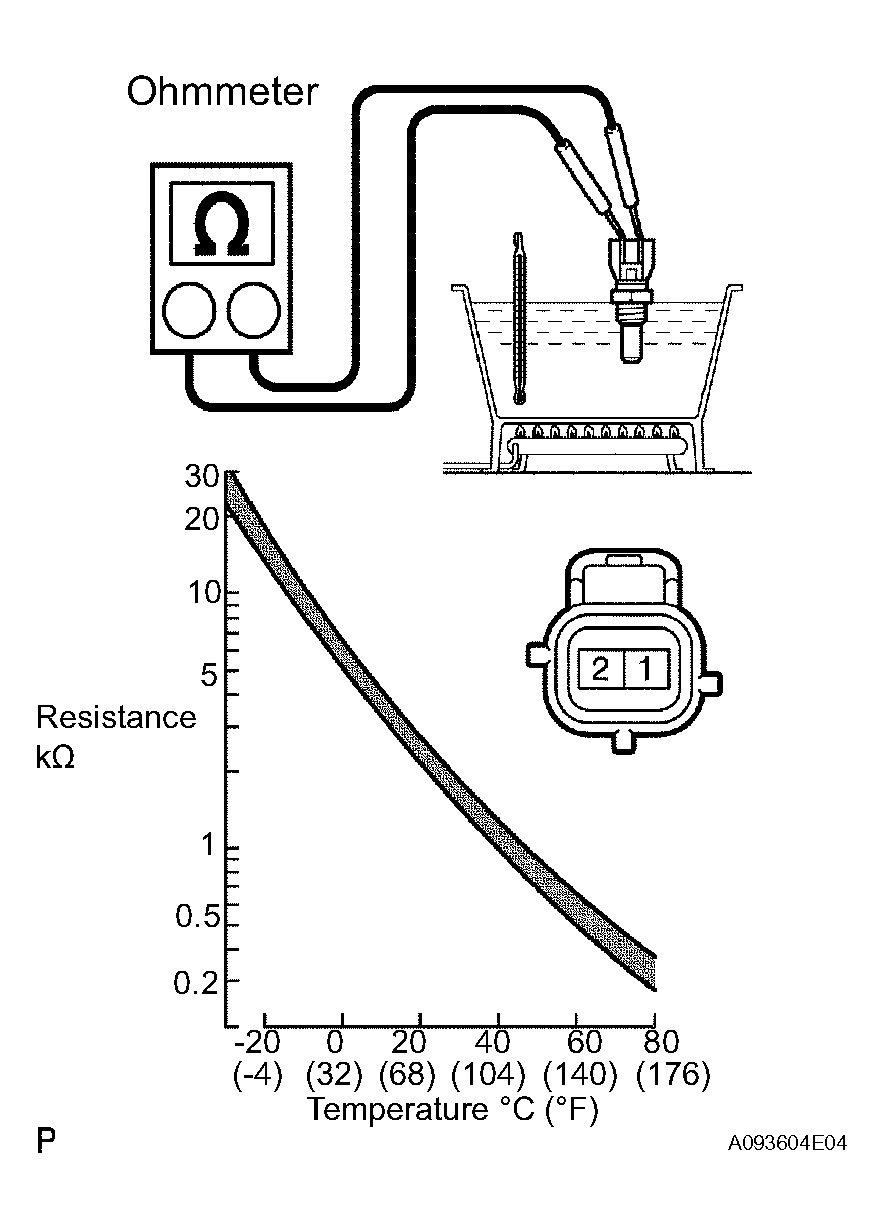

- INSPECT E.F.I. ENGINE COOLANT TEMPERATURE SENSOR
- Check the resistance.
- Using an ohmmeter, measure the resistance between the terminals.
Resistance
RESISTANCE SPECIFIED CONDITIONSTester Connection Specified Condition 1 (E2) - 2 (THW) 2.32 to 2.59 k at 20°C (68°F) 1 (E2) - 2 (THW) 0.310 to 0.326 k at 80°C (176°F) NOTE: If checking the engine coolant temperature sensor in water, be careful not to allow water to intrude into the terminals. After checking, wipe up water on the engine coolant temperature sensor.If the result is not as specified, replace the engine coolant temperature sensor.
- Using an ohmmeter, measure the resistance between the terminals.
- Check the resistance.
