2006 Toyota Matrix Base, FWD, Automatic
Drive Shaft: SST
2006 Toyota Matrix Base, FWD, AutomaticSECTION SST
DRIVE SHAFT SPECIAL SERVICE TOOL

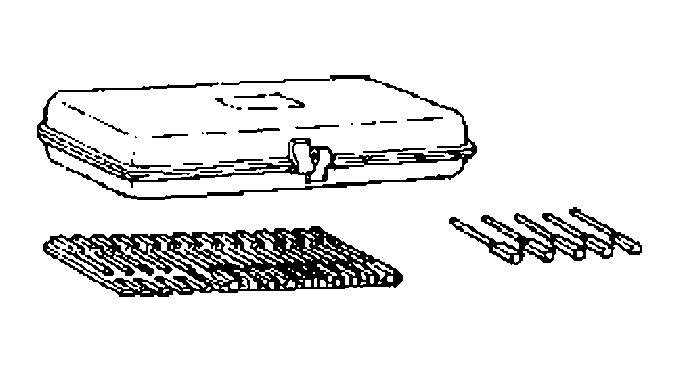

| 09240-00020 | Wire Gauge Set | |
| (09242-00080) | Wire Gauge 0.8 mm (0.031 in.) | |
| (09242-00150) | Wire Gauge 1.5 mm (0.059 in.) | |

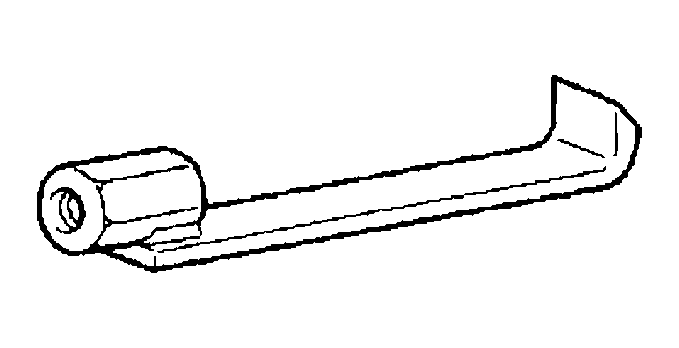

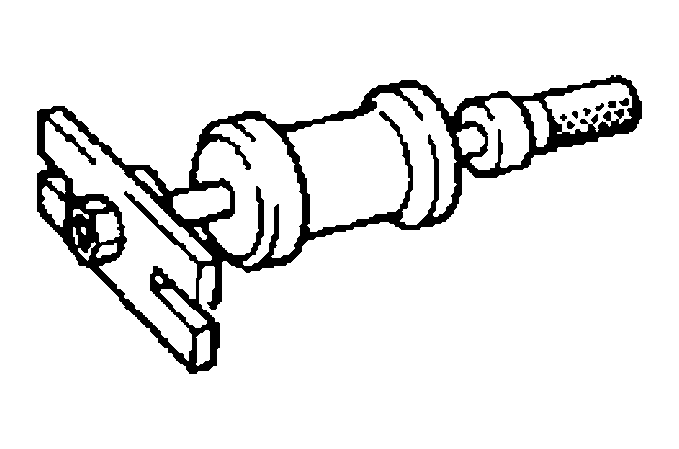

| 09520-01010 | Drive Shaft Remover Attachment | |
| 09520-24010 | Differential Side Gear Shaft Puller | |

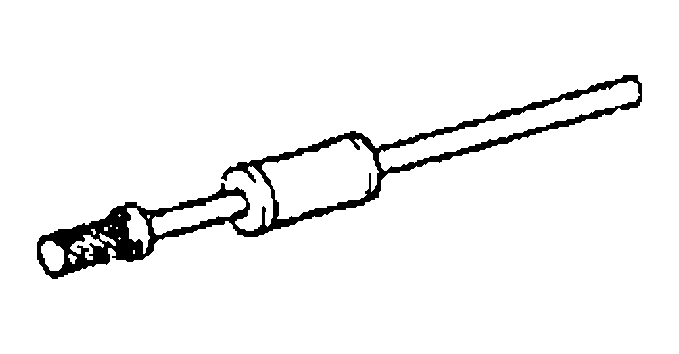

| (09520-32040) | Shocker Set | |
| 09521-24010 | Rear Axle Shaft Puller | |
| 09527-10011 | Rear Axle Shaft Bearing Remover | |
| 09527-21011 | Rear Axle Shaft Bearing Remover | |
| 09608-16042 | Front Hub Bearing Adjusting Tool | |

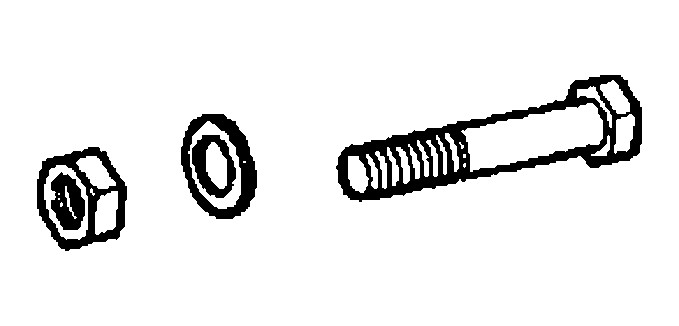

| (09608-02021) | Bolt & Nut | |

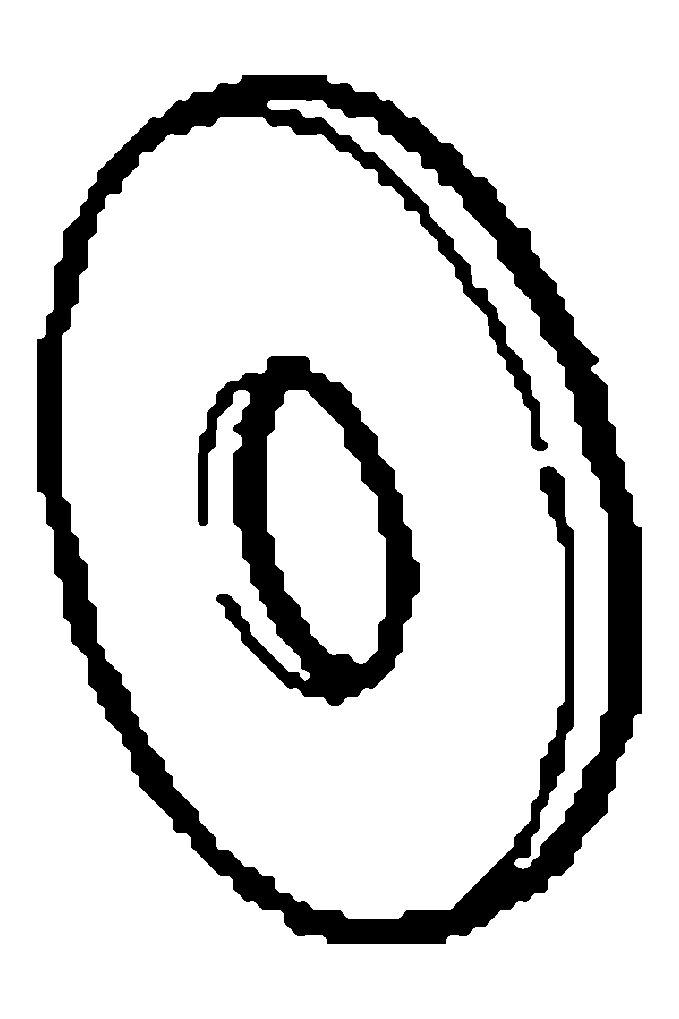

| (09608-02041) | Retainer | |

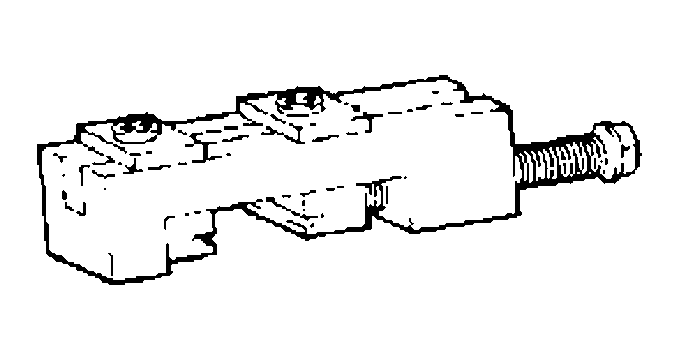

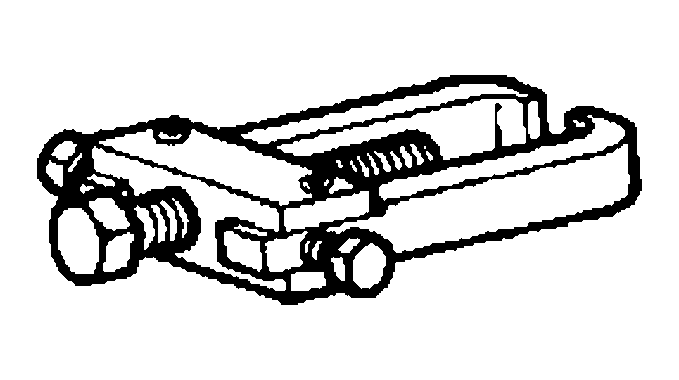

| 09628-62011 | Boll Joint Puller | |

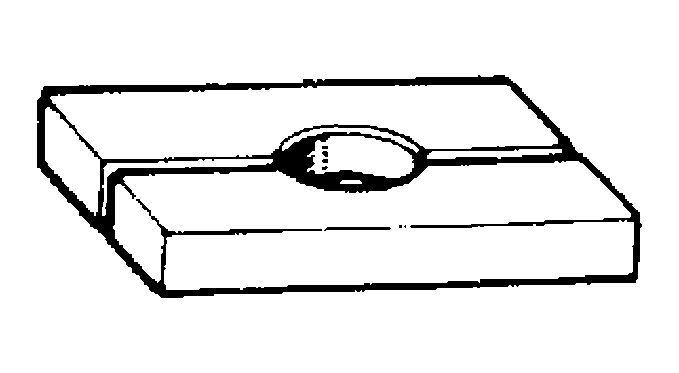

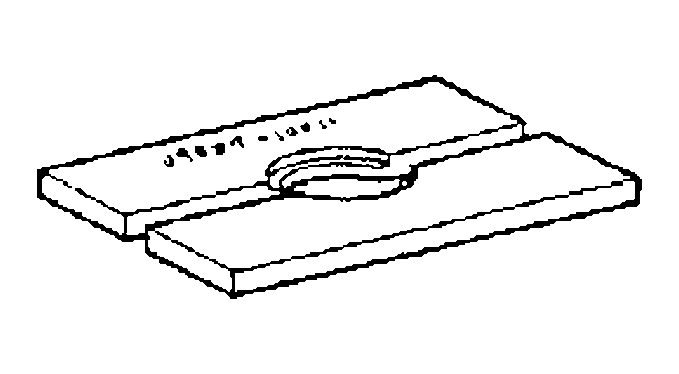

| 09710-04081 | Base | |

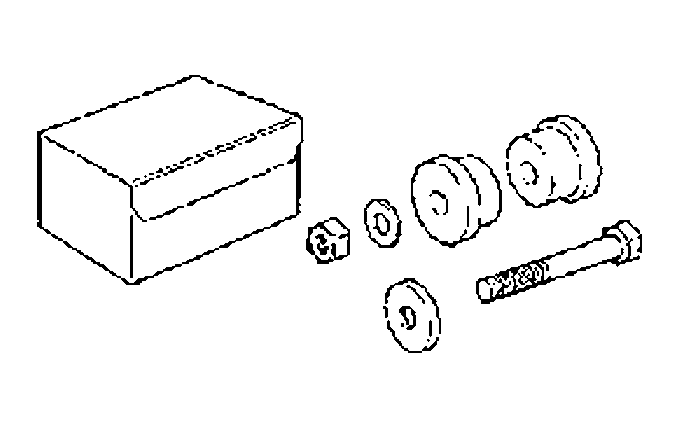

| 09710-30021 | Suspension Bushing Tool Set | |

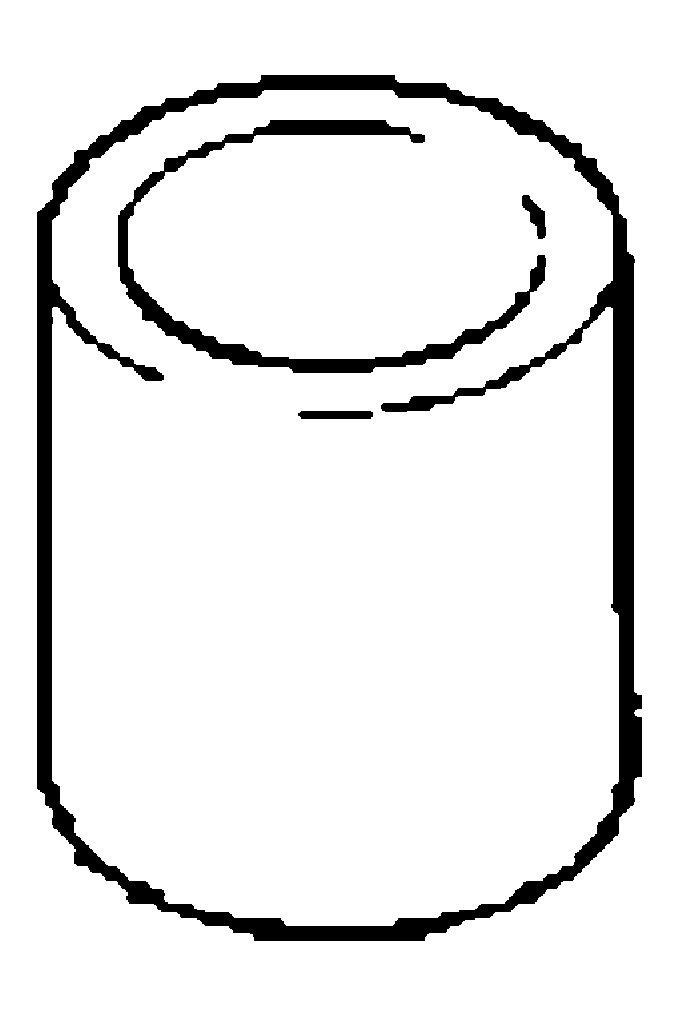

| (09710-03141) | Bushing Remover Base | |
| 09726-40010 | Lower Control Shaft Bearing Replacer | |

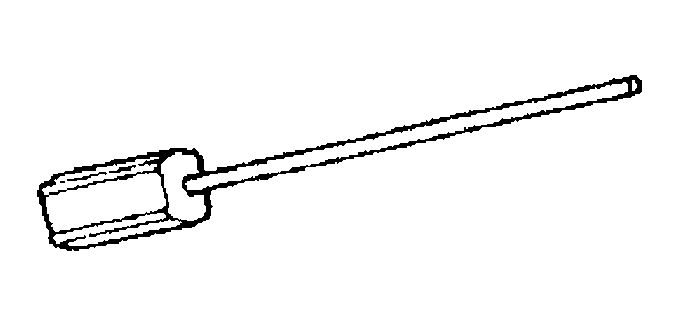

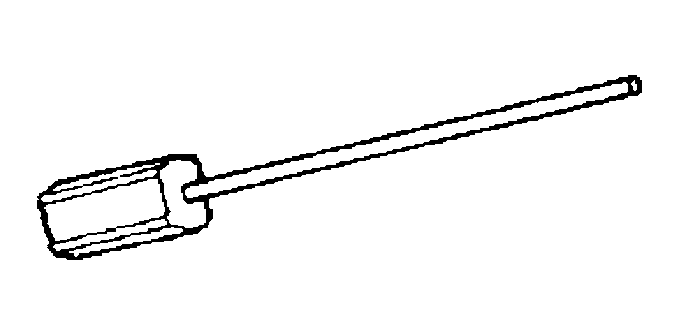

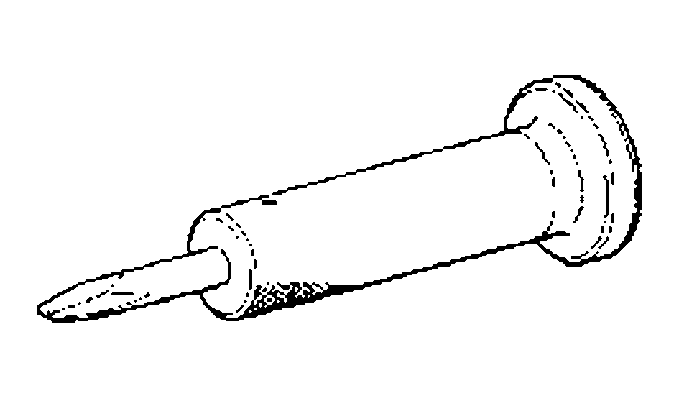

| 09930-00010 | Drive Shaft Nut Chisel | |

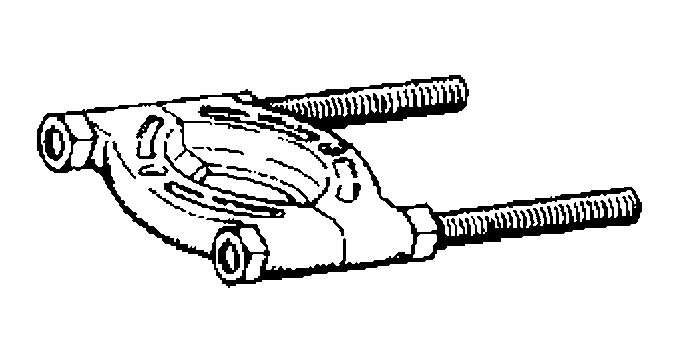

| 09950-00020 | Bearing Remover | |

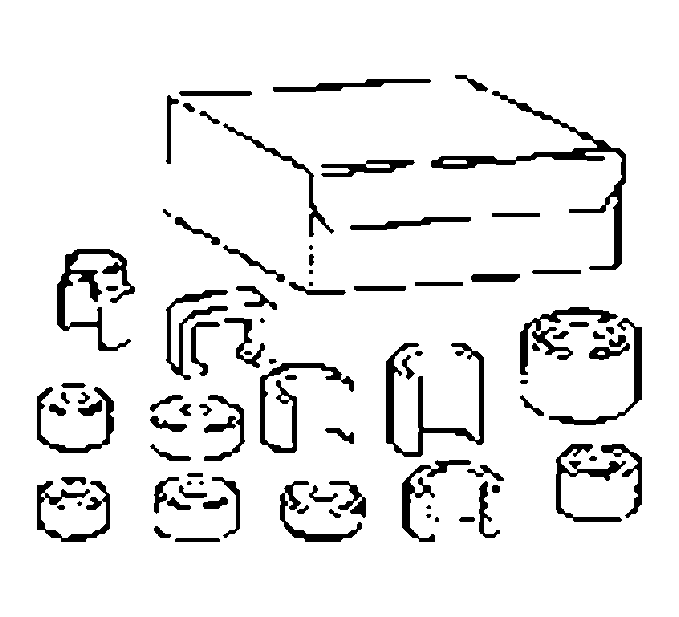

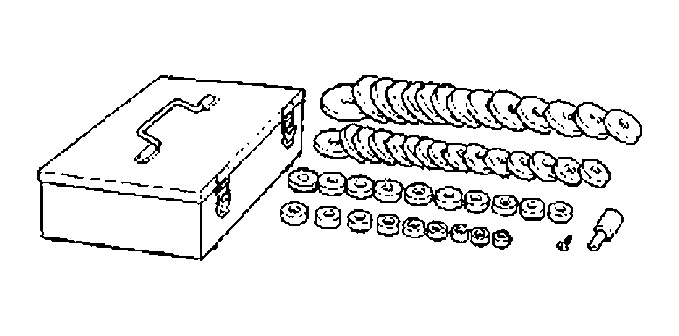

| 09950-60010 | Replacer Set | |

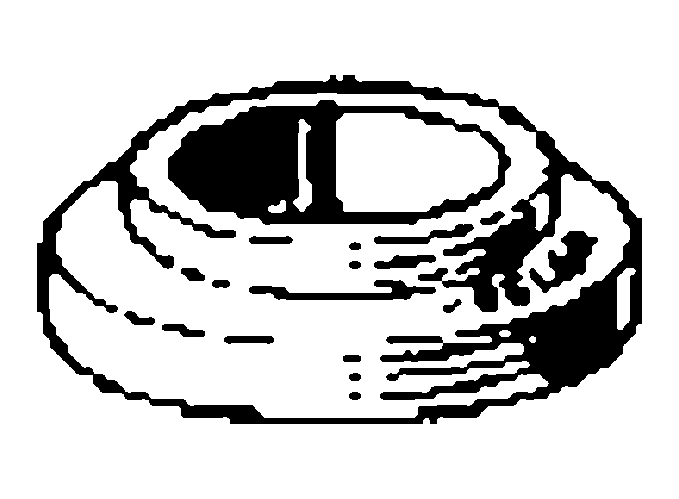

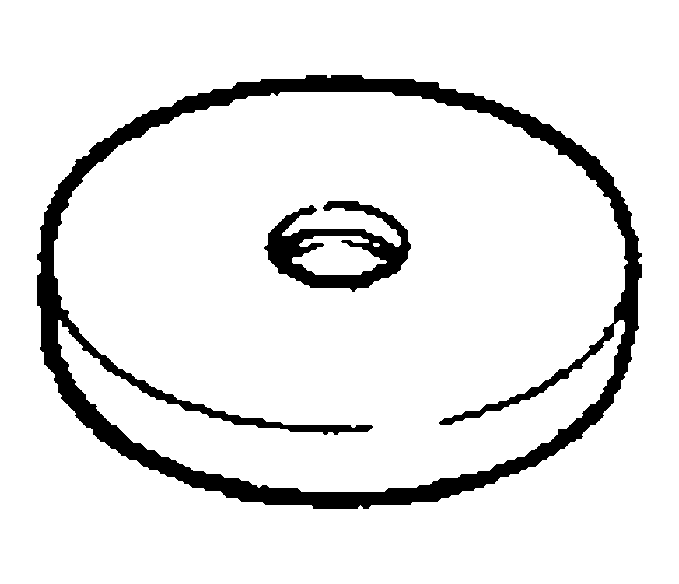

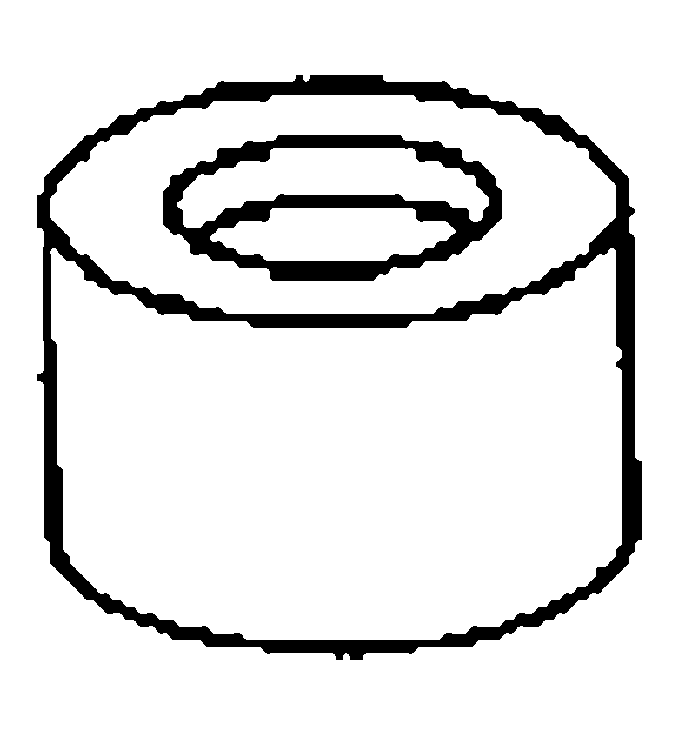

| (09951-00650) | Replacer 65 | |

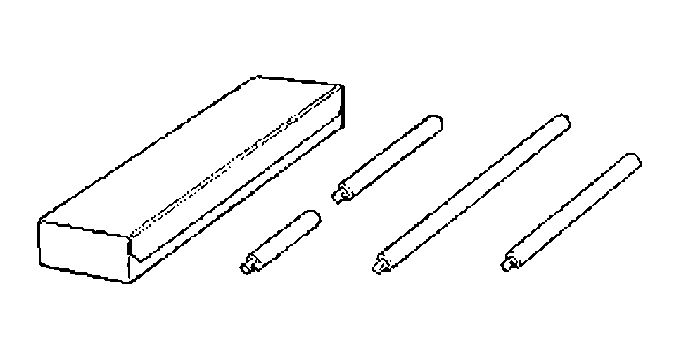

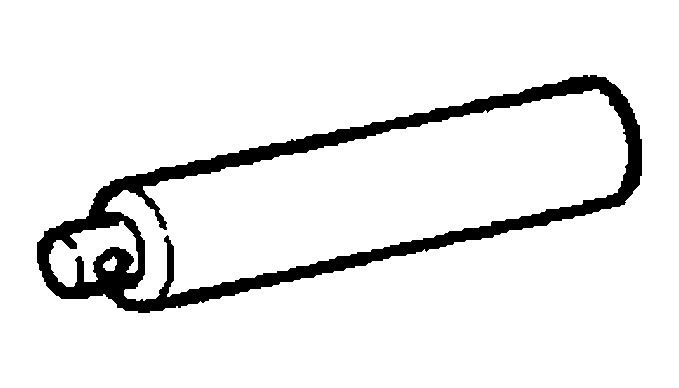

| 09950-70010 | Handle Set | |
| (09951-07100) | Handle 100 |
